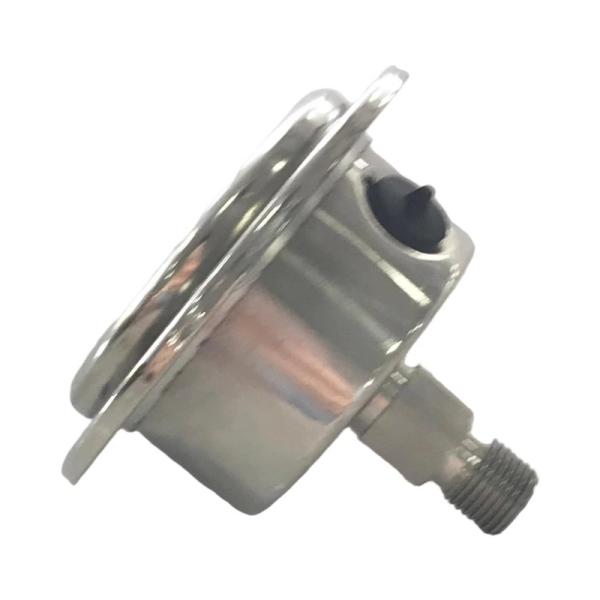

20bar All Stainless Steel Pressure Gauge Panel Mount With Glass Lens
20bar All Stainless Steel Pressure Gauge Panel Mount With Glass Lens
20bar All Stainless Steel Pressure Gauge Panel Mount With Glass Lens
20bar All Stainless Steel Pressure Gauge Panel Mount With Glass Lens
20bar All Stainless Steel Pressure Gauge Panel Mount With Glass Lens
20bar All Stainless Steel Pressure Gauge Panel Mount With Glass Lens
Specifications
Brand Name :
WESEN or Customized
Model Number :
M02.03.040.F
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
40mm
Mount :
Panel mount
Case Material :
Stainless Steel
Pressure Range :
-1~20 bar or Customized
Lens Material :
Glass, safety glass
Bourton Tube :
Stainless Steel
Movement :
Stainless Steel
Dial :
Aluminum
Accuracy :
KL 2.56
Deaign :
EN837-1
Description

Pressure Gauge Panel Mount 20bar All Stainless Steel Material

Description

Wesen panel gauges offer attractive design, excellent readability, and a variety of dial sizes with a broad pressure range selection. The 1⁄4 turn heat-resistant polycarbonate window is available with a hot-stamped mirror band to simulate chrome to further enhance your equipment. The patented power movement with polyester segment offers superior resistance to shock, vibration and pulsation. It can be the pressure gauge for water, or be fuel pressure gauge for diesel.

Applications

For aggressive gaseous and liquid media that are not highly crystallising, also operates in aggressive environments

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Machine building and general plant construction, Pressure Gauge Hydraulic Press

Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Scale ranges up to 0 ... 1600 bar

Specifications

Design

EN 837-1

Nominal size

 40mm

Accuracy

 1.6, 1.0, 2.5
Pressure range 20 bar (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value
Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 Stainless steel, C-type or helical type
Movement Stainless steel
Dial Aluminium, white, without pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Ring Rolling ring, stainless steel
Window Plastic, glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket

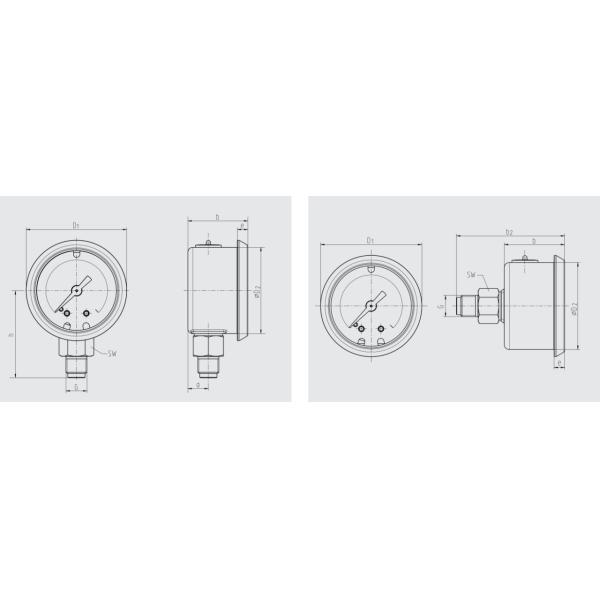

Dimensions

20bar All Stainless Steel Pressure Gauge Panel Mount With Glass Lens

20bar All Stainless Steel Pressure Gauge Panel Mount With Glass Lens

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

20bar All Stainless Steel Pressure Gauge Panel Mount With Glass Lens
