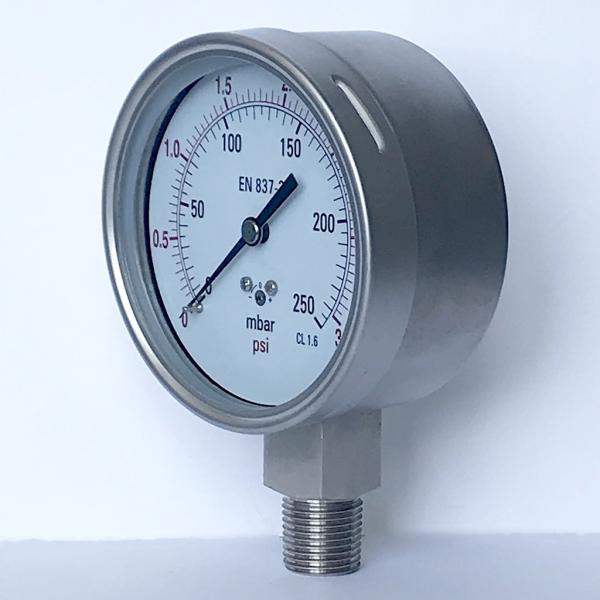

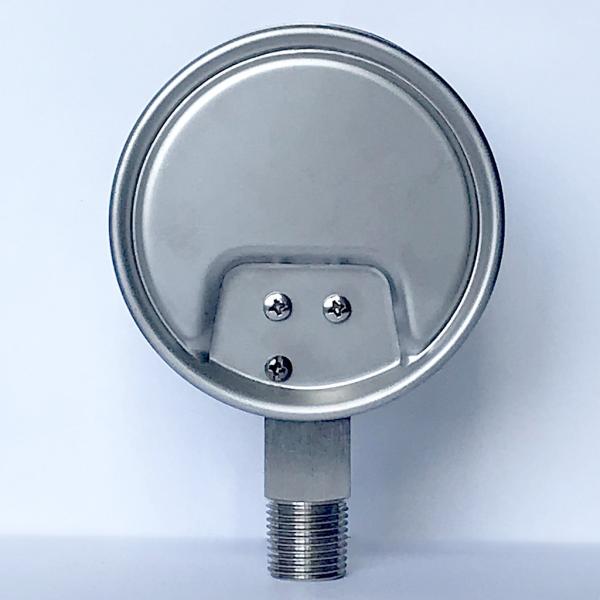

Capsule 100mm Pressure Gauge 250 Mbar SS 304 Bottom Mount Pressure Gauge
Capsule 100mm Pressure Gauge 250 Mbar SS 304 Bottom Mount Pressure Gauge
Capsule 100mm Pressure Gauge 250 Mbar SS 304 Bottom Mount Pressure Gauge
Capsule 100mm Pressure Gauge 250 Mbar SS 304 Bottom Mount Pressure Gauge
Capsule 100mm Pressure Gauge 250 Mbar SS 304 Bottom Mount Pressure Gauge
Capsule 100mm Pressure Gauge 250 Mbar SS 304 Bottom Mount Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M08.01.100.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
100mm
Mount :
Bottom
Pressure Range :
250 mbar or Customized
Case Material :
SS 304
Lens Material :
PC
Bellows :
Brass
Movement :
Copper alloy
Dial :
Aluminum
Accuracy :
1.6
Deaign :
EN837-3
Description

100mm Low Pressure Gauge 250 mbar Bellows Manometer Stainless Steel Capsule Pressure Gauge

Description

WESEN type M08 low pressure gauges feature a copper alloy capsule element that is designed to measure pressure and vacuum of gaseous media from as low as 2.5” H2O to 275” H2O (10 psi). The 4” dial size allows easy reading from a distance. The finely polished nickel-silver pinion gear and shaft of the movement ensure repeat- able accuracy.

Applications

Low pressure gauge for applications in a controlled environment

Low pressure pneumatic systems

Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring

For gaseous, dry and non-aggresive media

Special features

Front zero adjustment

Special connections on request

Scale ranges from 0/10 InWC (25 mbar)

Specifications

Design

EN 837-3

Nominal size

 100mm

Accuracy

± 1.6 of full scale value
Pressure range 80 mmH2O 80 mmWC (customized)
Standard ranges

2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar)

2½”: 0...10 InWC (25 mbar) to 0...250 InWC (600 mbar) or all other equivalent vacuum or combined pressure and vacuum ranges
Standard scales

InH2O/mmH2O

oz/sq.in/mmH2O

oz/sq.in/InH2O

PSI

Pressure limitation

Steady: full scale value
Fluctuating: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +100 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span

Process connection

 SS

Pressure element

 SS
Movement SS
Dial Aluminium, white, black lettering
Pointer Aluminium
Case Black steel, painted steel
Window Acrylic, glass
Zero adjustment At the front
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

Capsule 100mm Pressure Gauge 250 Mbar SS 304 Bottom Mount Pressure Gauge

Size Dimension in inches Weight in LBS
a b b1 b2 D G h SW
2” - - 1.10 1.89 50 1/4”NPT - 0.55 0.20
2½” 0.37 1.57 1.44 2.19 63 1/4”NPT 2.00 0.55 0.44

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

Capsule 100mm Pressure Gauge 250 Mbar SS 304 Bottom Mount Pressure Gauge
