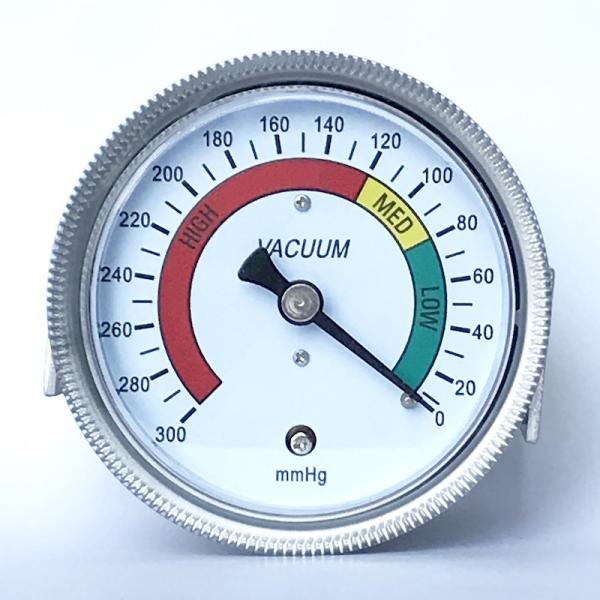

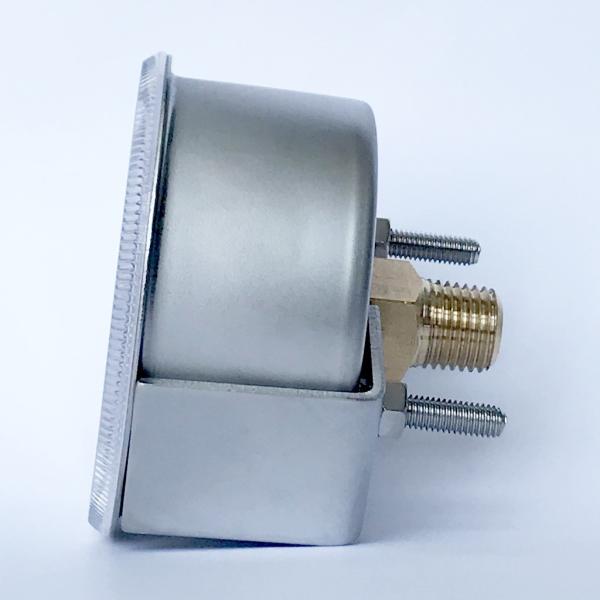

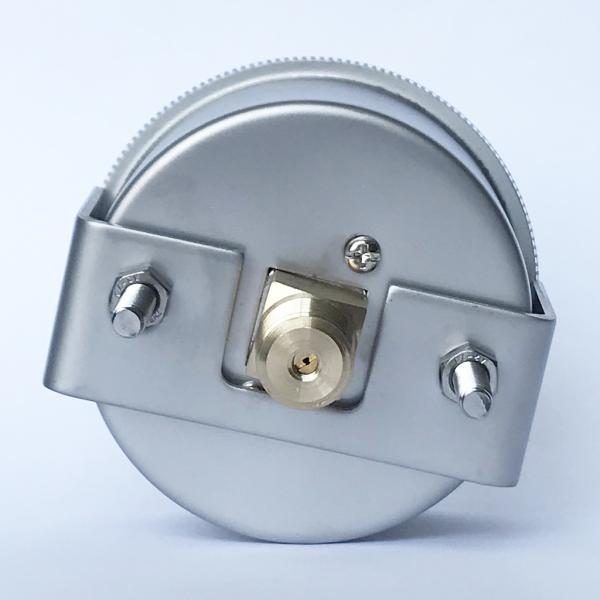

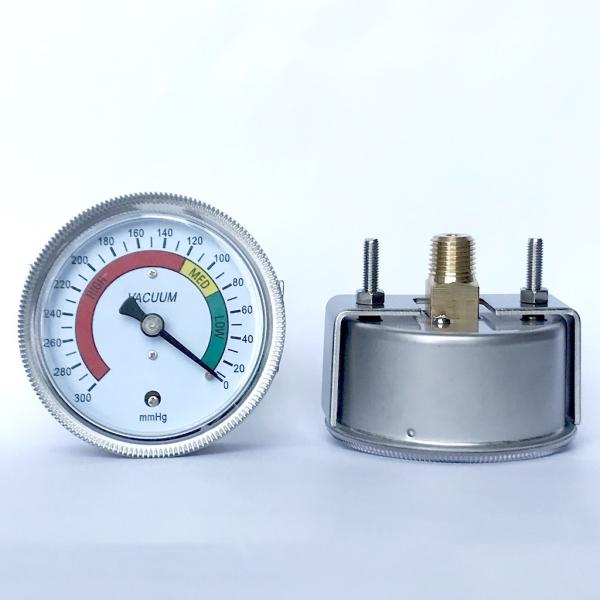

2.5 Inch Capsule Pressure Gauge 63mm Brass Wetted U Clamp Pressure Gauge
2.5 Inch Capsule Pressure Gauge 63mm Brass Wetted U Clamp Pressure Gauge
2.5 Inch Capsule Pressure Gauge 63mm Brass Wetted U Clamp Pressure Gauge
2.5 Inch Capsule Pressure Gauge 63mm Brass Wetted U Clamp Pressure Gauge
2.5 Inch Capsule Pressure Gauge 63mm Brass Wetted U Clamp Pressure Gauge
2.5 Inch Capsule Pressure Gauge 63mm Brass Wetted U Clamp Pressure Gauge
2.5 Inch Capsule Pressure Gauge 63mm Brass Wetted U Clamp Pressure Gauge
2.5 Inch Capsule Pressure Gauge 63mm Brass Wetted U Clamp Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M08.02.063.B
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-3
Size :
63mm
Mount :
Surface Mount
Pressure Range :
-300~0 mmHg or Customized
Case Material :
SUS 304
Lens Material :
Acrylic
Bellows :
Brass
Movement :
SUS 304
Dial :
Aluminum
Accuracy :
2.5, 1.6
Description

2.5" Low Pressure Gauge U-Clamp Mount Vacuum Bellows Manometer Brass Wetted Parts Capsule Pressure Gauge

Description

Capsule gauges are cost-effective instruments that measure low pressures very precisely and with accuracies up to ±1.0% of span. The accuracy varies according to the gauge’s nominal size. This is because the capsule element is typically placed vertically inside the case, parallel with the dial face. The larger the disc surface area, the better it is able to detect low pressure changes.

Applications

Low pressure gauge for applications in a controlled environment

Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring

For gaseous, dry and non-aggresive media

Special features

Front zero adjustment

Special connections on request

Scale ranges from 0/10 InWC (25 mbar)

Specifications

Design

EN 837-3

Nominal size

63mm

Accuracy

± 1.6 of full scale value

Pressure range

-300~0 mmHg (customized)

Standard ranges

2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar)

2½”: 0...10 InWC (25 mbar) to 0...250 InWC (600 mbar) or all other equivalent vacuum or combined pressure and vacuum ranges

Standard scales

InH2O/mmH2O

oz/sq.in/mmH2O

oz/sq.in/InH2O

PSI

Pressure limitation

Steady: full scale value
Fluctuating: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +100 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span

Process connection

SUS 316

Pressure element

Brass

Movement

Brass

Dial

Aluminium, white, black lettering

Pointer

Aluminium

Case

Black steel, painted steel

Window

Acrylic

Zero adjustment

At the front

Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

2.5 Inch Capsule Pressure Gauge 63mm Brass Wetted U Clamp Pressure Gauge

Size

Dimension in inches

Weight in LBS

a

b

b1

b2

D

G

h

SW

2”

-

-

1.10

1.89

50

1/4”NPT

-

0.55

0.20

2½”

0.37

1.57

1.44

2.19

63

1/4”NPT

2.00

0.55

0.44

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

2.5 Inch Capsule Pressure Gauge 63mm Brass Wetted U Clamp Pressure Gauge
