EN 837-1 1 Bar Pressure Gauge 2.5 Inch 63mm Bottom Mount Pressure Gauge
EN 837-1 1 Bar Pressure Gauge 2.5 Inch 63mm Bottom Mount Pressure Gauge
EN 837-1 1 Bar Pressure Gauge 2.5 Inch 63mm Bottom Mount Pressure Gauge
EN 837-1 1 Bar Pressure Gauge 2.5 Inch 63mm Bottom Mount Pressure Gauge
EN 837-1 1 Bar Pressure Gauge 2.5 Inch 63mm Bottom Mount Pressure Gauge
EN 837-1 1 Bar Pressure Gauge 2.5 Inch 63mm Bottom Mount Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M07.01.063.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
63mm
Mount :
Bottom
Pressure Range :
-1 bar, vacuum
Case Material :
Steel
Lens Material :
PC
Bourton Tube :
Phosphor Bronze
Movement :
Copper alloy
Dial :
Aluminum
Color :
Black
Description

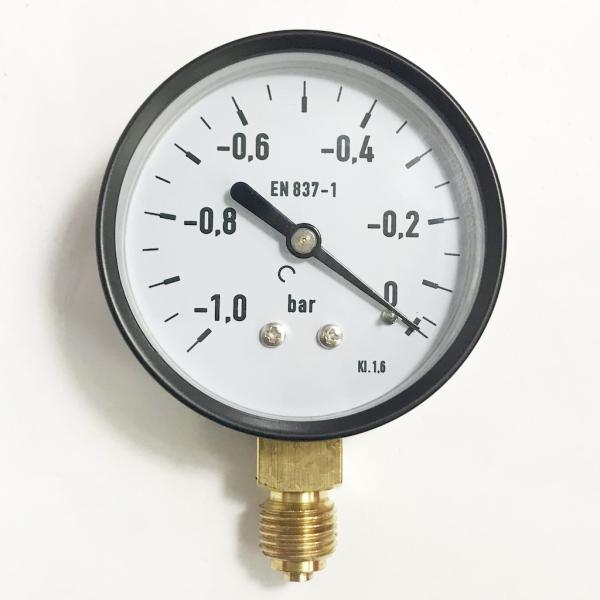

63mm 2.5" -1 bar Black Painted Steel Case Brass Connection Vacuum Pressure Gauge

Description

Vacuum pressure gauges measure and display the pressure within vessels or systems that are immersed in a sub-atmospheric or vacuum environment. Vacuum environments are particularly used to create cold temperatures.

Some pressure gauges may be designed to specifically measure substances flowing at either exceptionally high velocities or exceptionally low velocities. High pressure gauges are important to manufacturing and industrial applications, particularly those related to high pressure hydraulic technology (e.g. hydrodemolition, hydroblasting pumps, and water cutting machines). Low pressure gauges are extremely accurate and sensitive, generally measuring pressures between ten and fifteen PSI. They are especially important to applications that take place in environments with frequent pressure fluctuation.

Applications

Practically all industries make use of vacuum, from pick and place in the automotive industry, food & beverage, manufacturing, pharmaceutical, chemical, nautical, etc. The vacuum gauges are important devices to ensure optimal performance and safety of the system. They may be used for pick-and-place applications, keeping the workplace clean from pollutants, transport materials, etc.

Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Specifications

Design

EN 837-1

Nominal size

 63mm

Accuracy

 2.5, 1.6
Pressure range -1 bar vacuum (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass

Pressure element

 Brass, C-type or helical type
Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Steel
Window Plastic, glass
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

lower mount (radial)

EN 837-1 1 Bar Pressure Gauge 2.5 Inch 63mm Bottom Mount Pressure Gauge

Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85

back mount (axial)

EN 837-1 1 Bar Pressure Gauge 2.5 Inch 63mm Bottom Mount Pressure Gauge

Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

EN 837-1 1 Bar Pressure Gauge 2.5 Inch 63mm Bottom Mount Pressure Gauge
