63mm Capsule Pressure Gauge 8 KPa 80 MmH2O Ss Pressure Gauge Brass Connection
63mm Capsule Pressure Gauge 8 KPa 80 MmH2O Ss Pressure Gauge Brass Connection
63mm Capsule Pressure Gauge 8 KPa 80 MmH2O Ss Pressure Gauge Brass Connection
63mm Capsule Pressure Gauge 8 KPa 80 MmH2O Ss Pressure Gauge Brass Connection
63mm Capsule Pressure Gauge 8 KPa 80 MmH2O Ss Pressure Gauge Brass Connection
63mm Capsule Pressure Gauge 8 KPa 80 MmH2O Ss Pressure Gauge Brass Connection
Specifications
Brand Name :
WESEN or Customized
Model Number :
M08.01.063.B
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
63mm
Mount :
Panel
Pressure Range :
80 mmH2O or Customized
Case Material :
SS
Lens Material :
PC
Bellows :
Brass
Movement :
Brass
Dial :
Aluminum, dual scale
Zero Adjustment :
Yes
Deaign :
EN837-3
Description

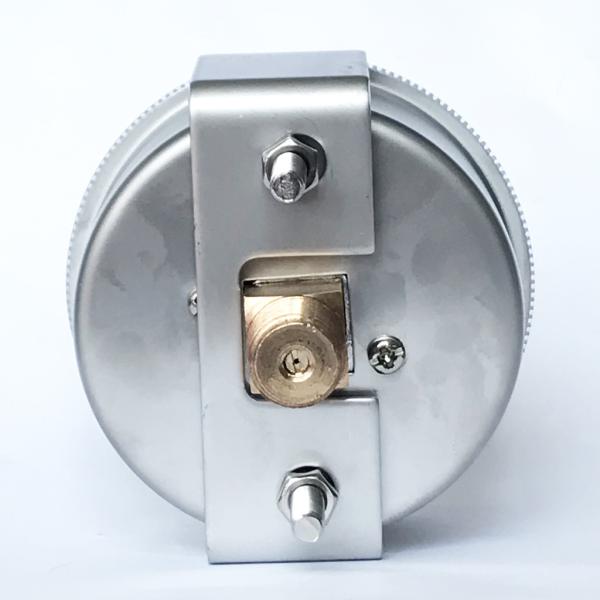

63mm Panel Mounting 8 kPa 80 mmH2O Stainless Steel Case Brass Connection with U-Clamp Vacuum Pressure Gauge

Description

There are two types of capsules: the convex and nested. A convex capsule is formed by attaching two convex diaphragms opposite to each other. A nested capsule consists of a convex and a concave diaphragm, also secured to one another along their periphery. If the process pressure is applied along the exterior of the capsule, nested capsules have the advantage of being more resistant against overpressures.

Applications

Low pressure gauge for applications in a controlled environment

Low pressure pneumatic systems

Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring

For gaseous, dry and non-aggresive media

Special features

Front zero adjustment

Special connections on request

Scale ranges from 0/10 InWC (25 mbar)

Specifications

Design

EN 837-3

Nominal size

 63mm

Accuracy

± 1.6 of full scale value
Pressure range 80 mmH2O (customized)
Standard ranges

2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar)

2½”: 0...10 InWC (25 mbar) to 0...250 InWC (600 mbar) or all other equivalent vacuum or combined pressure and vacuum ranges
Standard scales

InH2O/mmH2O

oz/sq.in/mmH2O

oz/sq.in/InH2O

PSI

Pressure limitation

Steady: full scale value
Fluctuating: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +100 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span

Process connection

 Brass

Pressure element

 Brass
Movement Brass
Dial Aluminium, white, black lettering
Pointer Aluminium
Case SS
Window Acrylic, glass
Zero adjustment At the front
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

63mm Capsule Pressure Gauge 8 KPa 80 MmH2O Ss Pressure Gauge Brass Connection

Size Dimension in inches Weight in LBS
a b b1 b2 D G h SW
2” - - 1.10 1.89 50 1/4”NPT - 0.55 0.20
2½” 0.37 1.57 1.44 2.19 63 1/4”NPT 2.00 0.55 0.44

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

63mm Capsule Pressure Gauge 8 KPa 80 MmH2O Ss Pressure Gauge Brass Connection
