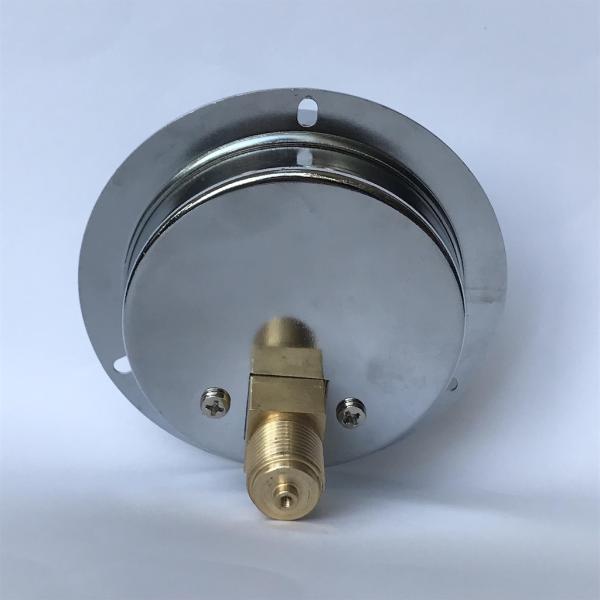

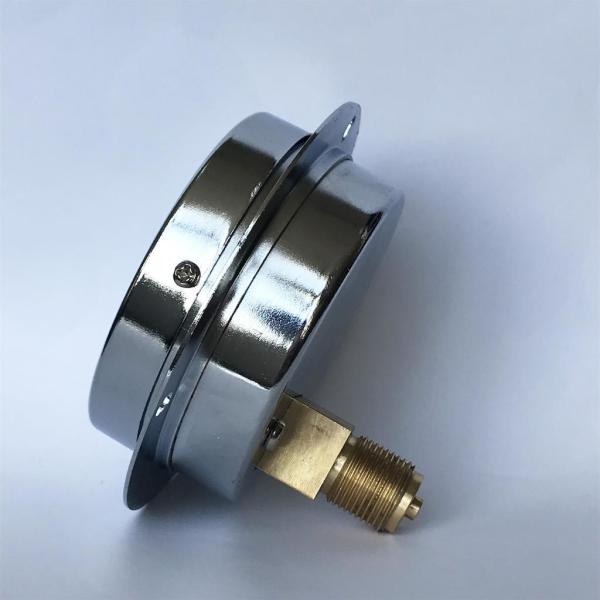

75mm 5 KPa Flange Pressure Gauge 304 Stainless Steel Pressure Gauge Brass Connection
75mm 5 KPa Flange Pressure Gauge 304 Stainless Steel Pressure Gauge Brass Connection
75mm 5 KPa Flange Pressure Gauge 304 Stainless Steel Pressure Gauge Brass Connection
75mm 5 KPa Flange Pressure Gauge 304 Stainless Steel Pressure Gauge Brass Connection
75mm 5 KPa Flange Pressure Gauge 304 Stainless Steel Pressure Gauge Brass Connection
75mm 5 KPa Flange Pressure Gauge 304 Stainless Steel Pressure Gauge Brass Connection
Specifications
Brand Name :
WESEN or Customized
Model Number :
M08.02.075.F
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
75mm
Mount :
Panel
Pressure Range :
5 kPa or Customized
Case Material :
SS 304
Lens Material :
PC
Bellows :
Copper alloy
Movement :
Copper alloy
Dial :
Aluminum, single scale
Zero Adjustment :
None
Deaign :
EN837-3
Description

75mm Panel Mounting 5 kPa Stainless Steel Case Brass Connection with Flange Capsule Pressure Gauge

Description

For the measurement of very small pressure differences, the deflection of a single capsule may be too small. Therefore, multiple capsules can be stacked on top of each other until sufficient displacement is obtained to move the pointer across the full scale. These stacks can be built with either convex or nested.

Applications

Low pressure gauge for applications in a controlled environment

Low pressure pneumatic systems

Ideal for measuring pressure, vacuum in medical, environmental, and laboratory applications for content and filter monitoring

For gaseous, dry and non-aggresive media

Special features

Front zero adjustment

Special connections on request

Scale ranges from 0/10 InWC (25 mbar)

Specifications

Design

EN 837-3

Nominal size

 75mm

Accuracy

± 1.6 of full scale value
Pressure range 5 kPa (customized)
Standard ranges

2”: 0...25 InWC (60 mbar) to 0...250 InWC (600 mbar)

2½”: 0...10 InWC (25 mbar) to 0...250 InWC (600 mbar) or all other equivalent vacuum or combined pressure and vacuum ranges
Standard scales

InH2O/mmH2O

oz/sq.in/mmH2O

oz/sq.in/InH2O

PSI

Pressure limitation

Steady: full scale value
Fluctuating: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +100 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ± 0.5 %/10 K of the span

Process connection

 Brass

Pressure element

 Brass
Movement Brass
Dial Aluminium, white, black lettering
Pointer Aluminium
Case SS
Window Acrylic, glass
Zero adjustment None
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

75mm 5 KPa Flange Pressure Gauge 304 Stainless Steel Pressure Gauge Brass Connection

Size Dimension in inches Weight in LBS
a b b1 b2 D G h SW
2” - - 1.10 1.89 50 1/4”NPT - 0.55 0.20
2½” 0.37 1.57 1.44 2.19 63 1/4”NPT 2.00 0.55 0.44

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

75mm 5 KPa Flange Pressure Gauge 304 Stainless Steel Pressure Gauge Brass Connection
