63mm Stainless Steel Pressure Gauge Flange Type 38 Bar BSPT Panel Mounting
63mm Stainless Steel Pressure Gauge Flange Type 38 Bar BSPT Panel Mounting
63mm Stainless Steel Pressure Gauge Flange Type 38 Bar BSPT Panel Mounting
63mm Stainless Steel Pressure Gauge Flange Type 38 Bar BSPT Panel Mounting
63mm Stainless Steel Pressure Gauge Flange Type 38 Bar BSPT Panel Mounting
63mm Stainless Steel Pressure Gauge Flange Type 38 Bar BSPT Panel Mounting
63mm Stainless Steel Pressure Gauge Flange Type 38 Bar BSPT Panel Mounting
63mm Stainless Steel Pressure Gauge Flange Type 38 Bar BSPT Panel Mounting
Specifications
Brand Name :
WESEN or Customized
Model Number :
M10.01.063.F
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
63mm
Mount :
Panel Mount
Pressure Range :
38 bar or Customized
Case Material :
SS
Lens Material :
PC, safety glass
Bourton Tube :
Copper alloy
Movement :
Copper alloy
Dial :
Aluminum
Accuracy :
1.6
Description

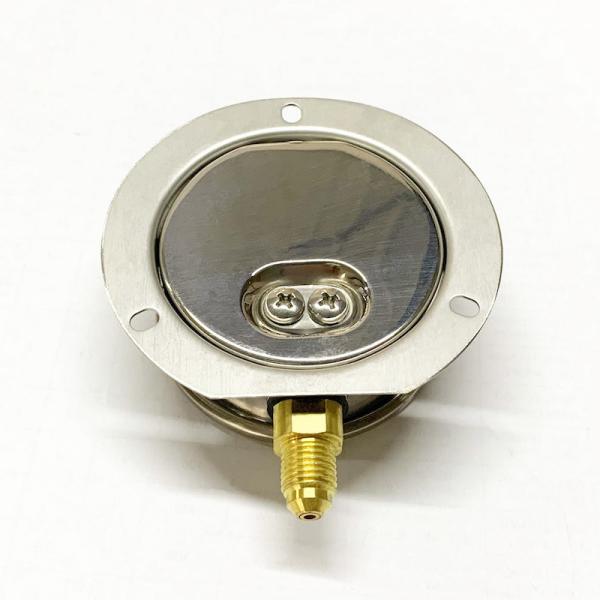

63mm Stainless Steel Case Brass Connection Refrigeration Pressure Gauge with Panel Mounting Flange

Description

Is fitted with a pressure connector used to connect it to the refrigeration circuit via a special flexible hose. Has been given two pressure scales (we will use the bar scale) and a temperature scale. Note that the needle indicates 0 bar since the gauge is open to the atmosphere. Is graduated for refrigerant R22.

Applications

Measuring refrigerant ammonia pressure and temperature

Suitable for corrosive environments and gaseous or liquid media that will not obstruct the pressure system

Process industry: chemical/petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction

​​

Special features

Excellent load-cycle stability and shock resistance

All stainless steel construction

Ammonia refrigerant scales on dial

Specifications

Design

EN 837-1

Nominal size

 63mm

Accuracy

 1.6, 1.0
Pressure range 38 bar (customized)

Working pressure

63mm:

Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value

100mm:

Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value
Permissible temperature

Ambient:

-40 ... +60 °C - dry;

-20 ... +60 °C - glycerine filled

-40 ... +60 °C - silicone filled

Mediium:

+100 °C maximum

Ingress protection

 IP66

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4%/10 K of the span

Process connection

 Copper alloy

Pressure element

 Copper alloy
Movement Copper alloy
Dial Aluminium
Pointer Aluminium
Case Stainless steel
Ring Steel
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket

Dimensions

63mm Stainless Steel Pressure Gauge Flange Type 38 Bar BSPT Panel Mounting

Size A B C D E J L M N S T W
63mm 69 54 32 62 13 3.6 7.5 85 75 6.5 1/4" 14
100mm 107 87 48 100 15.5 4.8 9 132 116 8 1/2" 22

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

63mm Stainless Steel Pressure Gauge Flange Type 38 Bar BSPT Panel Mounting
