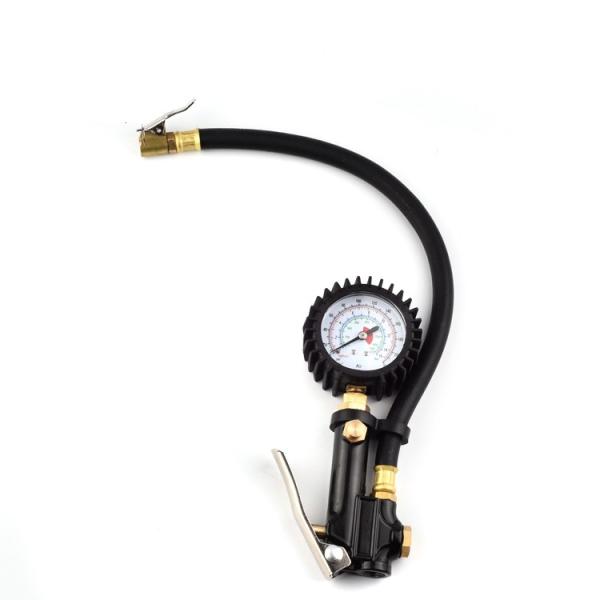

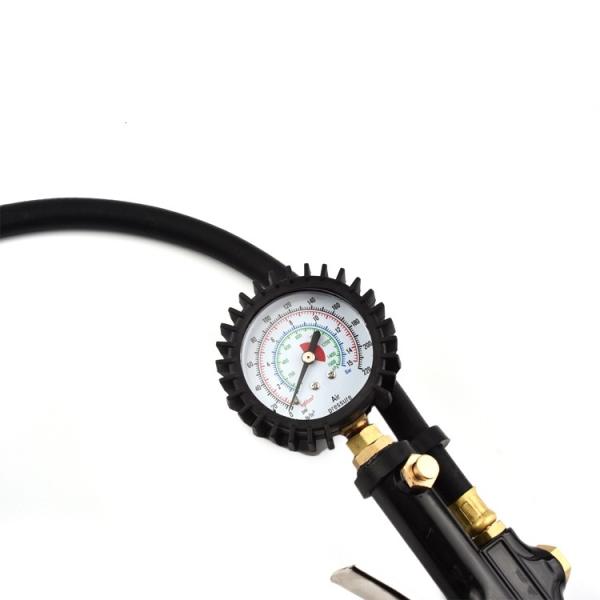

200 PSI Gun Air Chuck Gauge Inflator Hose Pressure Gauge Mechanical Bottom Mount
200 PSI Gun Air Chuck Gauge Inflator Hose Pressure Gauge Mechanical Bottom Mount
200 PSI Gun Air Chuck Gauge Inflator Hose Pressure Gauge Mechanical Bottom Mount
200 PSI Gun Air Chuck Gauge Inflator Hose Pressure Gauge Mechanical Bottom Mount
200 PSI Gun Air Chuck Gauge Inflator Hose Pressure Gauge Mechanical Bottom Mount
200 PSI Gun Air Chuck Gauge Inflator Hose Pressure Gauge Mechanical Bottom Mount
200 PSI Gun Air Chuck Gauge Inflator Hose Pressure Gauge Mechanical Bottom Mount
200 PSI Gun Air Chuck Gauge Inflator Hose Pressure Gauge Mechanical Bottom Mount
Specifications
Brand Name :
WESEN or Customized
Model Number :
M09.01.050.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
50mm
Mount :
Bottom, Radial
Pressure Range :
200 psi or Customized
Case Material :
Painted steel
Lens Material :
Instruments glass, PC
Bourton Tube :
Brass
Movement :
Brass
Dial :
Aluminum
Accuracy :
2.5, 1.6
Description

200 PSI Tire Pressure Gauge with Inflator Includes Inflation Gun Air Chuck Gauge & Hose

Des​cription

Strong and Durable: Our tire pressure gauge is made of premium quality metal and rubber so that you can benefit from it for a long period of time. Its high quality ensures no leakage and high performance.

Special features

Mechanical design, no batteries needed

Reliable performance, robust body with rubber cover

360 degree swive, easy to operate

Durable air valve button

Specifications

Design

EN 837-1

Nominal size

 50mm

Accuracy

 2.5
Pressure range 200 psi (customized)

Working pressure

Steady: full scale value

Fluctuating: 0.9 x full scale value

Short time: 1.3 x full scale value
Usage circumstances

Indoor, outdoors

Ingress protection

 IP66

Temperature effect

When the temperature at the measuring system deviates from the reference temperature +20 °C [+68 °F]: ≤ ±0.4 %/10 °C [≤ ±0.4 %/18 °F] of full scale value

Process connection

 Painted steel

Pressure element

 Bourdon tube
Movement Brass
Dial Aluminium
Pointer Aluminium
Case Painted steel
Window PC
Unit

bar, psi, kg/cm2, kPa, MPa
Thread Customized
Options Other process connections

Operating Instructions

Use the vehicle's recommended pressure, do not exceed the "max pressure" figure found on the tire sidewall.
Check pressure when tires are cold and have sat for at least one hour.
Removing cap from inflation valve, place the gauge chuck firmly onto tire valve stem and press down evenly. If air escapes, apply more pressure until air stops escaping.
Remove gauge from valve stem to read tire pressure.
If tire pressure is too high, refit the tire pressure gauge to valve stem then gently press pressure release button until recommended pressure is reached.

If tire pressure is low, inflate to the recommended pressure then recheck.
Store tire pressure gauge in a safe, dust free area.

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

200 PSI Gun Air Chuck Gauge Inflator Hose Pressure Gauge Mechanical Bottom Mount
