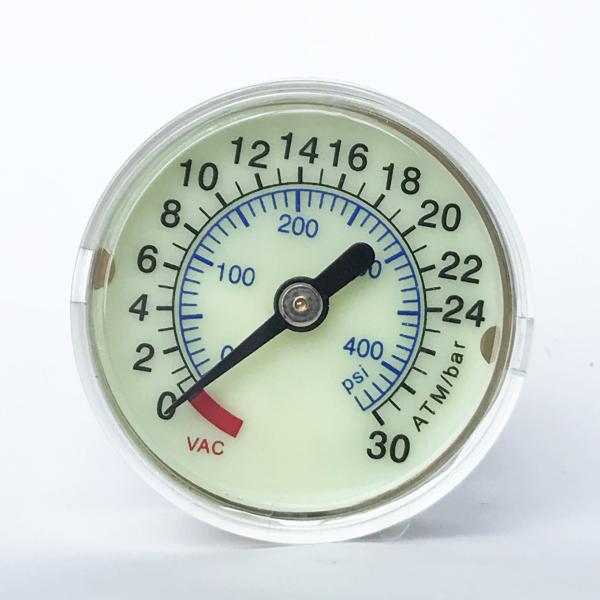

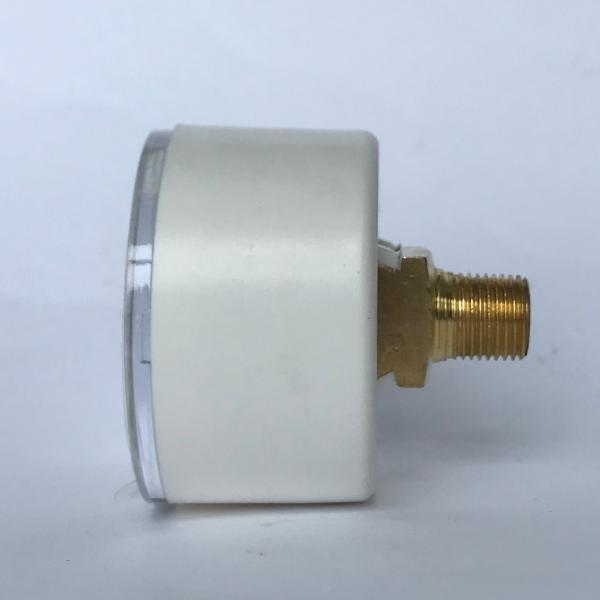

Balloon Inflation Device Medical Brass Pressure Gauge 30 ATM 40mm Radial
Balloon Inflation Device Medical Brass Pressure Gauge 30 ATM 40mm Radial
Balloon Inflation Device Medical Brass Pressure Gauge 30 ATM 40mm Radial
Balloon Inflation Device Medical Brass Pressure Gauge 30 ATM 40mm Radial
Balloon Inflation Device Medical Brass Pressure Gauge 30 ATM 40mm Radial
Balloon Inflation Device Medical Brass Pressure Gauge 30 ATM 40mm Radial
Balloon Inflation Device Medical Brass Pressure Gauge 30 ATM 40mm Radial
Balloon Inflation Device Medical Brass Pressure Gauge 30 ATM 40mm Radial
Specifications
Brand Name :
WESEN or Customized
Model Number :
M06.02.040.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
40mm
Mount :
Axial
Pressure Range :
30 ATM, 40 ATM, customized
Case Material :
Plastic
Lens Material :
Acrylic
Bourton Tube :
Brass
Movement :
Brass
Dial :
Plastic
Color :
Yellow, white
Description

40mm Medical Pressure Gauge 30 ATM for Balloon Inflation Device

Description

Designed and manufactured for a wide variety of medical applications, our medical equipment pressure gauges are in daily use in clinics and hospitals around the globe. Medical gauges can be found on angioplasty inflation devices, anesthesia equipment, medical regulators, respiratory equipment, dental systems, and many more. Gauge sizes range from 1” to 2½” so a solution can be found to fit most any equipment or space requirement.

Applications

Medical Inflation Device

Inflation Device Kits

Balloon Inflation Device

Inflation Syringe

Inflate and deflate dilation balloon

Manual balloon catheter pump

​​

Special features

Constructed from hygienic materials

Specifications

Design

EN 837-1

Nominal size

 40mm

Accuracy

 2.5
Pressure range 30 ATM, 40 ATM

Pressure limitation

Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value
Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +60 °C maximum

Ingress protection

 IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass, copper alloy

Pressure element

 Brass
Movement Brass
Dial ABS, colorful, without pointer stop pin, customized
Pointer Aluminum
Case Plastic
Window Plastic
Unit

ATM
Thread G, BSP, PT, BSPT, NPT, other connections
Options Customized logo

Popular medical pressure gauge

Balloon Inflation Device Medical Brass Pressure Gauge 30 ATM 40mm Radial

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

Balloon Inflation Device Medical Brass Pressure Gauge 30 ATM 40mm Radial
