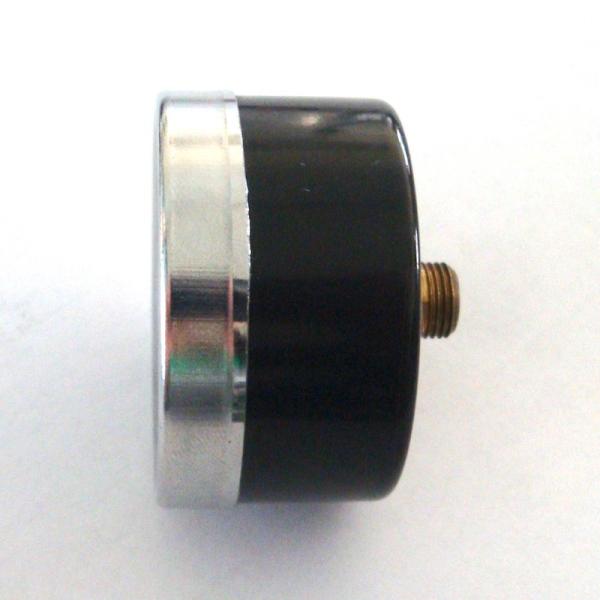

40mm Medical Pressure Gauge 25 Psi Acrylic Lens Brass Socket For Anesthesia Equipment
40mm Medical Pressure Gauge 25 Psi Acrylic Lens Brass Socket For Anesthesia Equipment
40mm Medical Pressure Gauge 25 Psi Acrylic Lens Brass Socket For Anesthesia Equipment
40mm Medical Pressure Gauge 25 Psi Acrylic Lens Brass Socket For Anesthesia Equipment
40mm Medical Pressure Gauge 25 Psi Acrylic Lens Brass Socket For Anesthesia Equipment
40mm Medical Pressure Gauge 25 Psi Acrylic Lens Brass Socket For Anesthesia Equipment
Specifications
Brand Name :
WESEN or Customized
Model Number :
M06.02.040.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
40mm
Mount :
Axial
Pressure Range :
25 psi, customized
Case Material :
Painted steel
Lens Material :
Acrylic
Bourton Tube :
Brass
Movement :
Brass
Dial :
Plastic
Color :
Yellow, white
Description

40mm Medical Pressure Gauge 25 psi Steel Case and Brass Socket for Anesthesia Equipment

Description

The Bourdon tube pressure gauge consists of a circular tube which is bent over an angle of generally 270°, and of which one end is closed and the other is connected to the process pressure. The closed end can move freely. This movement is transmitted via a transmission mechanism to the pointer of the pressure gauge, as you can see in the pressure gauge animation. With the rack and pinion of the transmission mechanism, the movement of the Bourdon tube may be amplified so that the pointer rotates from start to end of the scale.

Applications

Medical Inflation Device

Inflation Device Kits

Balloon Inflation Device

Inflation Syringe

Inflate and deflate dilation balloon

Manual balloon catheter pump

​​

Special features

Constructed from hygienic materials

Specifications

Design

EN 837-1

Nominal size

 40mm

Accuracy

 2.5
Pressure range 25 psi

Pressure limitation

Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value
Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +60 °C maximum

Ingress protection

 IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass, copper alloy

Pressure element

 Brass
Movement Brass
Dial ABS, colorful, without pointer stop pin, customized
Pointer Aluminum
Case Painted steel
Window PC
Unit

ATM, PSI
Thread G, BSP, PT, BSPT, NPT, other connections
Options Customized logo

Popular medical pressure gauge

40mm Medical Pressure Gauge 25 Psi Acrylic Lens Brass Socket For Anesthesia Equipment

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

40mm Medical Pressure Gauge 25 Psi Acrylic Lens Brass Socket For Anesthesia Equipment
