Stainless Steel Bi Metal Temperature Gauge 120C Heating Metal Stem Thermometer
Stainless Steel Bi Metal Temperature Gauge 120C Heating Metal Stem Thermometer
Stainless Steel Bi Metal Temperature Gauge 120C Heating Metal Stem Thermometer
Stainless Steel Bi Metal Temperature Gauge 120C Heating Metal Stem Thermometer
Stainless Steel Bi Metal Temperature Gauge 120C Heating Metal Stem Thermometer
Stainless Steel Bi Metal Temperature Gauge 120C Heating Metal Stem Thermometer
Stainless Steel Bi Metal Temperature Gauge 120C Heating Metal Stem Thermometer
Stainless Steel Bi Metal Temperature Gauge 120C Heating Metal Stem Thermometer
Specifications
Brand Name :
WESEN or Customized
Model Number :
M14.02.063.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
63mm
Mount :
Center Back
Temperature Range :
0-120 °C or customized
Case Material :
SUS 304
Connection :
PT, NPT, G, BSP
Stem Dia. :
6mm, 8mm, 10mm
Stem Length :
30cm (customized)
Lens :
PC Glass
Color :
Silver
Accuracy :
1.0
Description

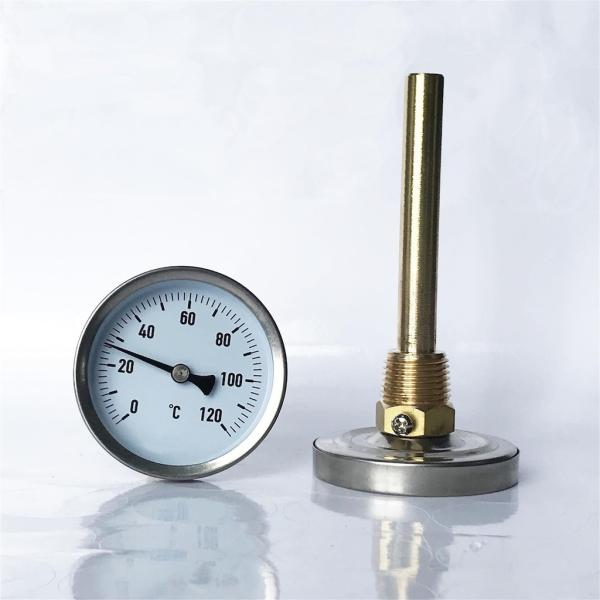

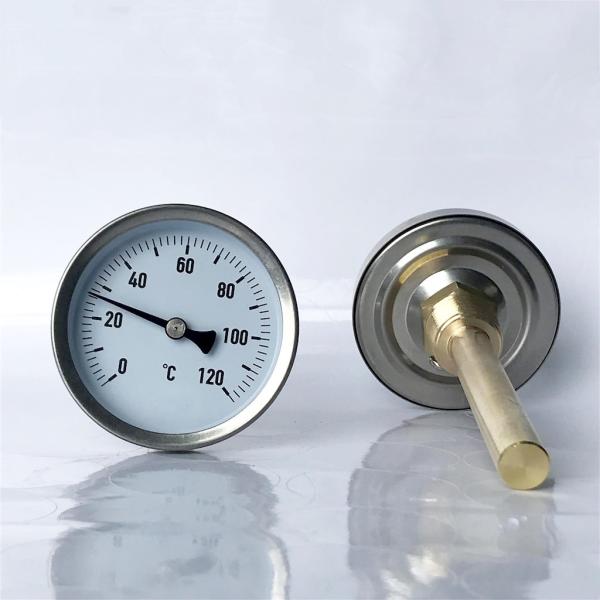

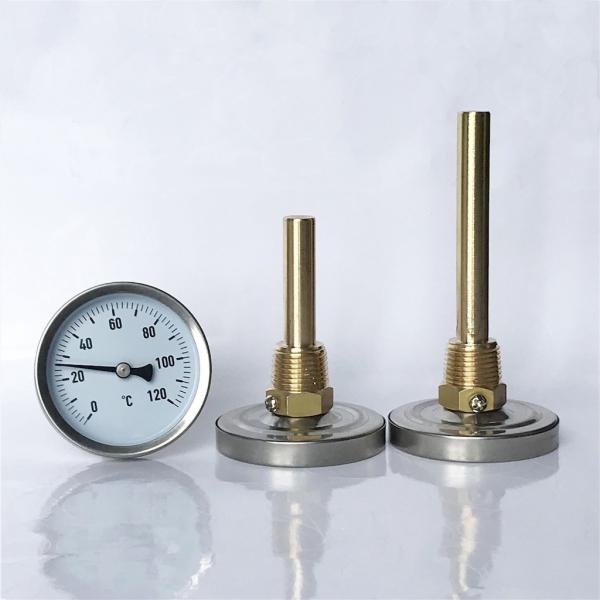

63mm 0-120 °C Stainless Steel Bimetal Thermometer For Heating Technology

Description

Bimetal thermometers work on the principle that different metals expand at different rates as they are heated. By using two strips of different metals in a thermometer, the movement of the strips correlates to temperature and can be indicated along a scale. This is a simple, durable and inexpensive way to measure temperature.

Applications

Heating systems

Hot water tanks

Solar collectors

Heat transfer stations

Special features

Reliable and cost-effective

Indication accuracy class 2 in accordance with EN 13190

Scale ranges from -30 ... +120 °C

Specifications

Nominal size

 63mm, 80mm, 100mm

Accuracy

 1.0
Temperature range 0-120 °C (customized)

Working range

Full scale value

Case

 Steel

Measuring element

 Bimetal coil
Connection location Back mount
Stem Brass
Thermowell Copper alloy, removable, friction fit
Dial Aluminium
Window Plastic, glass
Options

Other scale ranges
Slip-on bezel, nickel-plated
Removable brass thermowell with retainer screw

Stainless Steel Bi Metal Temperature Gauge 120C Heating Metal Stem Thermometer

Stainless Steel Bi Metal Temperature Gauge 120C Heating Metal Stem Thermometer


Ordering information
Model / Dial size / Scale Range / Process connection / Stem dia. & length / Options

Stainless Steel Bi Metal Temperature Gauge 120C Heating Metal Stem Thermometer
