0-200 Fahrenheit Bimetallic Stemmed Thermometer Adjustable Angle 80mm Heating Systems
0-200 Fahrenheit Bimetallic Stemmed Thermometer Adjustable Angle 80mm Heating Systems
0-200 Fahrenheit Bimetallic Stemmed Thermometer Adjustable Angle 80mm Heating Systems
0-200 Fahrenheit Bimetallic Stemmed Thermometer Adjustable Angle 80mm Heating Systems
0-200 Fahrenheit Bimetallic Stemmed Thermometer Adjustable Angle 80mm Heating Systems
0-200 Fahrenheit Bimetallic Stemmed Thermometer Adjustable Angle 80mm Heating Systems
0-200 Fahrenheit Bimetallic Stemmed Thermometer Adjustable Angle 80mm Heating Systems
0-200 Fahrenheit Bimetallic Stemmed Thermometer Adjustable Angle 80mm Heating Systems
Specifications
Brand Name :
WESEN or Customized
Model Number :
M14.02.080.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
80mm
Mount :
Center Back
Temperature Range :
200 F or customized
Case Material :
SUS 304
Connection :
PT, NPT, G, BSP
Stem Dia. :
6mm, 8mm, 10mm
Stem Length :
30cm (customized)
Lens :
PC Glass
Color :
Silver
Accuracy :
1.0
Description

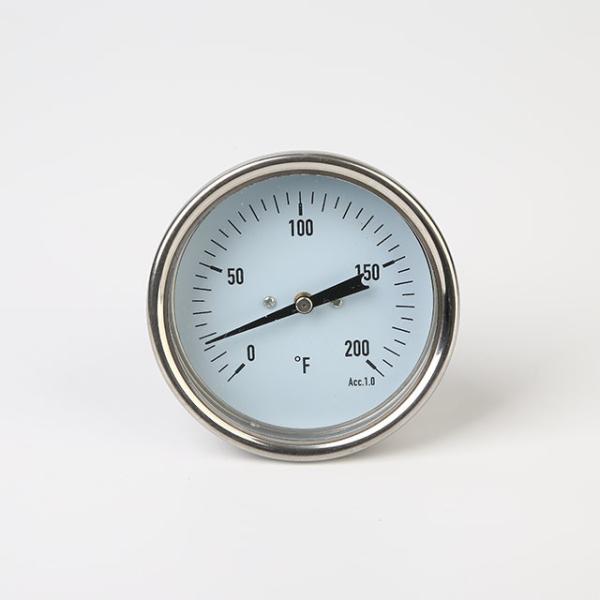

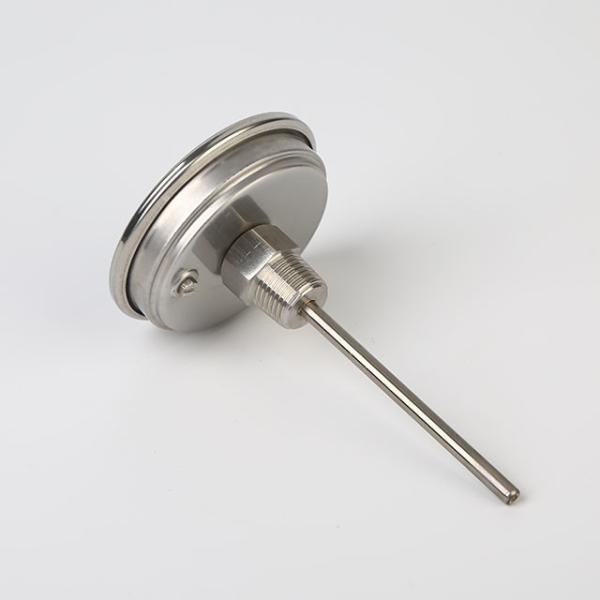

80mm 0-200 Fahrenheit Stainless Steel Bimetal Thermometer For Heating systems

Description

The model M14 bimetal thermometer was developed as a standard version for simple temperature indication in heating applications.

Its modular design enables a multitude of combinations of case materials, nominal sizes, scale ranges and stem lengths. This ensures that the basic dimensions are maintained.

Applications

Heating systems

Hot water tanks

Solar collectors

Heat transfer stations

Special features

Reliable and cost-effective

Indication accuracy class 2 in accordance with EN 13190

Scale ranges from -30 ... +120 °C

Specifications

Nominal size

 63mm, 80mm, 100mm

Accuracy

 1.0
Temperature range 0-200 F (customized)

Working range

Full scale value

Case

 Steel

Measuring element

 Bimetal coil
Connection location Back mount
Stem Aluminium
Thermowell Copper alloy, removable, friction fit
Dial Aluminium
Window Plastic, glass
Options

Other scale ranges
Slip-on bezel, nickel-plated
Removable brass thermowell with retainer screw

0-200 Fahrenheit Bimetallic Stemmed Thermometer Adjustable Angle 80mm Heating Systems

0-200 Fahrenheit Bimetallic Stemmed Thermometer Adjustable Angle 80mm Heating Systems


Ordering information
Model / Dial size / Scale Range / Process connection / Stem dia. & length / Options

0-200 Fahrenheit Bimetallic Stemmed Thermometer Adjustable Angle 80mm Heating Systems
