Glass Vacuum Radial Pressure Gauge 0.8 Bar 316 Stainless Steel Pressure Gauge
Glass Vacuum Radial Pressure Gauge 0.8 Bar 316 Stainless Steel Pressure Gauge
Glass Vacuum Radial Pressure Gauge 0.8 Bar 316 Stainless Steel Pressure Gauge
Glass Vacuum Radial Pressure Gauge 0.8 Bar 316 Stainless Steel Pressure Gauge
Glass Vacuum Radial Pressure Gauge 0.8 Bar 316 Stainless Steel Pressure Gauge
Glass Vacuum Radial Pressure Gauge 0.8 Bar 316 Stainless Steel Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M12.01.100.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Dial Size :
100mm
Mount :
Radial direction
Pressure Range :
-0.8 bar or Customized
Case Material :
304 Stainless Steel
Lens Material :
Glass
Bourton Tube :
316 Stainless Steel
Movement :
304 Stainless Steel
Connection :
316 Stainless Steel
Accuracy :
1.0
Color :
Metallic
Description

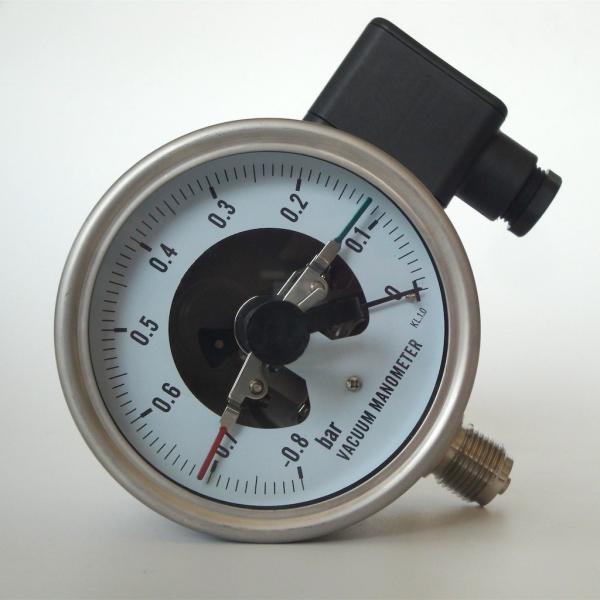

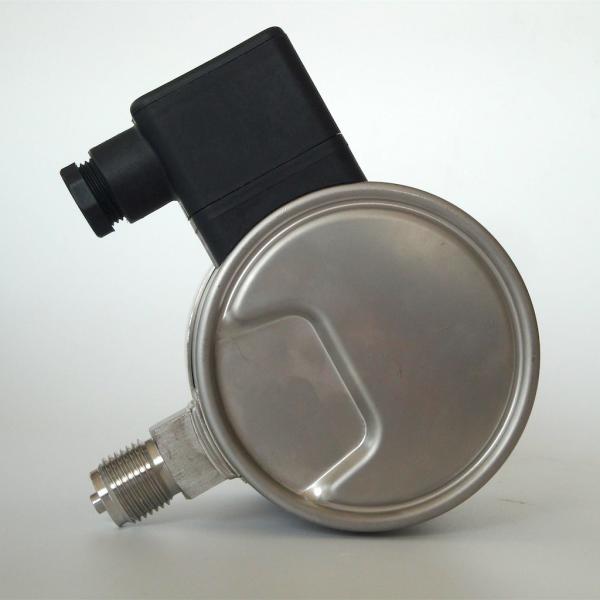

100mm -0.8 bar Vacuum Radial Direction Mounting All Stainless Steel Electric Contact Pressure Gauge

Description

In industrial processes, there are times when you need to read the pressure values and at the same time have the ability to alter electric circuits (open/close) at desired set values. In case the media demands a stainless steel instrument, then InstruMate model M12 electric contact pressure gauges are the right choice. Contact-Mate M12 is a heavy duty pressure gauge with switch contacts of snap-action type.

Applications

Control and regulation of industrial processes

Monitoring of plants and switching of circuits

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts

​​

Special features

High reliability and long service life

Up to 4 switch contacts per instrument

Instruments with electronic contacts for PLC applications

Contact gauges comply with DIN 16085

Specifications

Design

EN 837-1

Nominal size

 100mm

Accuracy

 1.0
Pressure range -0.8 bar (customized)

Pressure limitation

Steady: full scale value

Fluctuating: 0.9 x full scale value

Short time: 1.3 x full scale value
Process connection G ½ B

½ NPT

M20 x 1.5 others on request
Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +80 °C maximum

Ingress protection

 IP54

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 316 SS

Pressure element

 316 SS
Movement 304 SS
Dial Aluminium, without pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Ring None
Window Glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket

Dimensions

Glass Vacuum Radial Pressure Gauge 0.8 Bar 316 Stainless Steel Pressure Gauge

Glass Vacuum Radial Pressure Gauge 0.8 Bar 316 Stainless Steel Pressure Gauge

Glass Vacuum Radial Pressure Gauge 0.8 Bar 316 Stainless Steel Pressure Gauge

Glass Vacuum Radial Pressure Gauge 0.8 Bar 316 Stainless Steel Pressure Gauge

Specifications for instruments with magnetic snap-action contact model M12

Measuring span Nominal size Max number of contacts Switching current range
≤ 1.0 bar

100, 160

 1 0.02 ... 0.3 A
> 1.0 bar 100, 160 1 0.02 ... 0.6 A
≤ 1.6 bar 100, 160 2 0.02 ... 0.3 A
> 1.6 bar 100, 160 2 0.02 ... 0.6 A
≤ 4.0 bar 100 3 or 4 0.02 ... 0.3 A
> 4.0 bar 100 3 or 4 0.02 ... 0.6 A
≤ 2.5 bar 160 3 or 4 0.02 ... 0.3 A
> 2.5 bar 160 3 or 4 0.02 ... 0.6 A

The recommended setting range of the contacts is 25 ... 75 % of the scale (0 ... 100 % on request).

Contact material (standard): Silver-nickel, gold-plated

Recommended contact load with resistive and inductive loads

Glass Vacuum Radial Pressure Gauge 0.8 Bar 316 Stainless Steel Pressure Gauge

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

Glass Vacuum Radial Pressure Gauge 0.8 Bar 316 Stainless Steel Pressure Gauge
