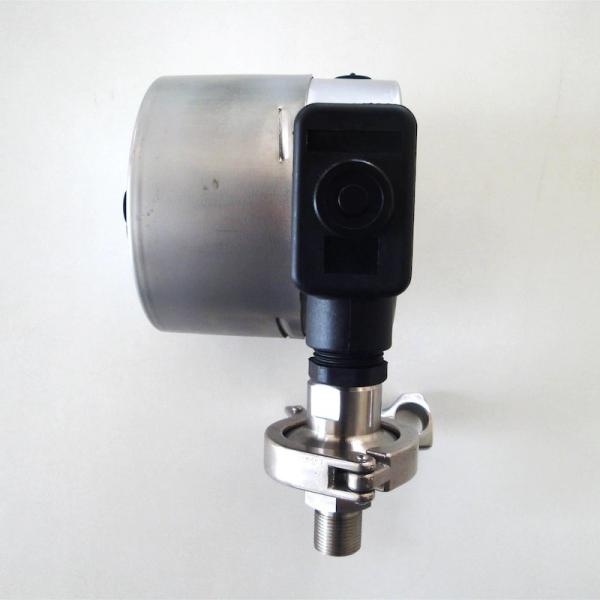

SUS 316 Electric Contact Pressure Gauges Diaphragm 60 Bar Flange Pressure Gauge
SUS 316 Electric Contact Pressure Gauges Diaphragm 60 Bar Flange Pressure Gauge
SUS 316 Electric Contact Pressure Gauges Diaphragm 60 Bar Flange Pressure Gauge
SUS 316 Electric Contact Pressure Gauges Diaphragm 60 Bar Flange Pressure Gauge
SUS 316 Electric Contact Pressure Gauges Diaphragm 60 Bar Flange Pressure Gauge
SUS 316 Electric Contact Pressure Gauges Diaphragm 60 Bar Flange Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M12.01.100.D
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
100mm
Mount :
Bottom Mounting
Pressure Range :
60 bar or Customized
Case Material :
SUS 304
Lens Material :
Glass
Bourton Tube :
SUS 316
Movement :
SUS 304
Dial :
Aluminum
Accuracy :
1.6
Deaign :
EN837-1
Description

100mm 60 bar SS Manometer Diaphragm Electric Contact Pressure Gauge

Description

WESEN electric contact pressure gauge is designed to measure the pressure of fluid medium with an electrical contact. The index contact is achieved by touching between a pointer and a set pointer.

Applications

Control and regulation of industrial processes

Monitoring of plants and switching of circuits

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts

​​

Special features

High reliability and long service life

Up to 4 switch contacts per instrument

Instruments with electronic contacts for PLC applications

Contact gauges comply with DIN 16085

Specifications

Design

EN 837-1

Nominal size

 100mm

Accuracy

 1.6
Pressure range 60 bar (customized)

Pressure limitation

Steady: full scale value

Fluctuating: 0.9 x full scale value

Short time: 1.3 x full scale value
Process connection G ½ B

½ NPT

M20 x 1.5 others on request
Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +80 °C maximum

Ingress protection

 IP54

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 SS 304
Movement SS 304
Dial Aluminium, without pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Ring None
Window Glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket

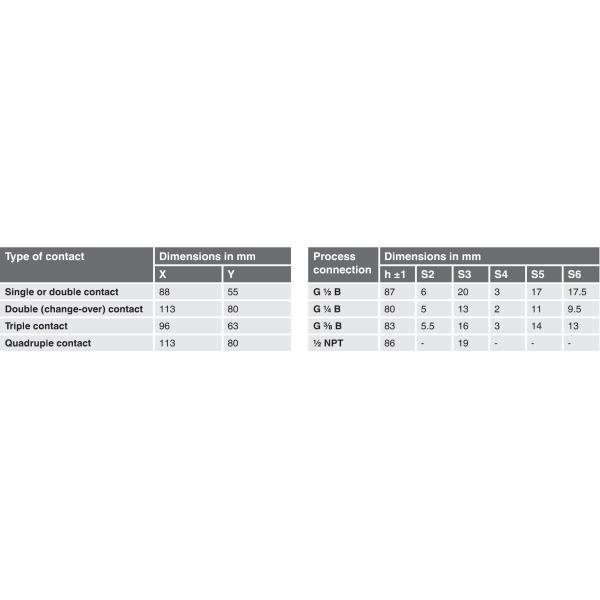

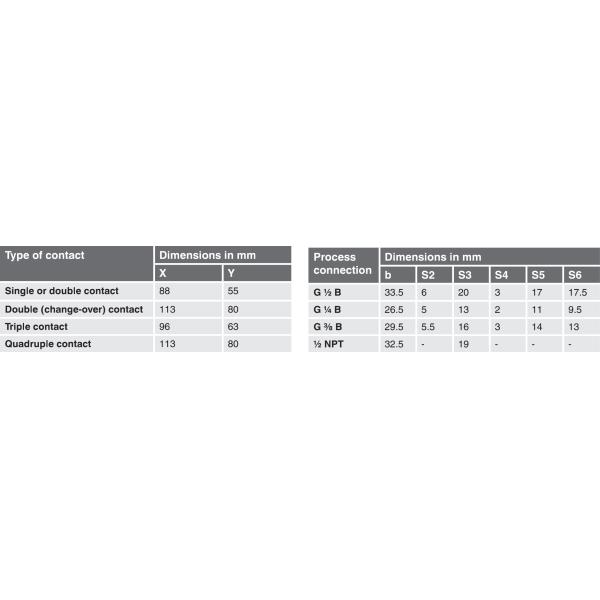

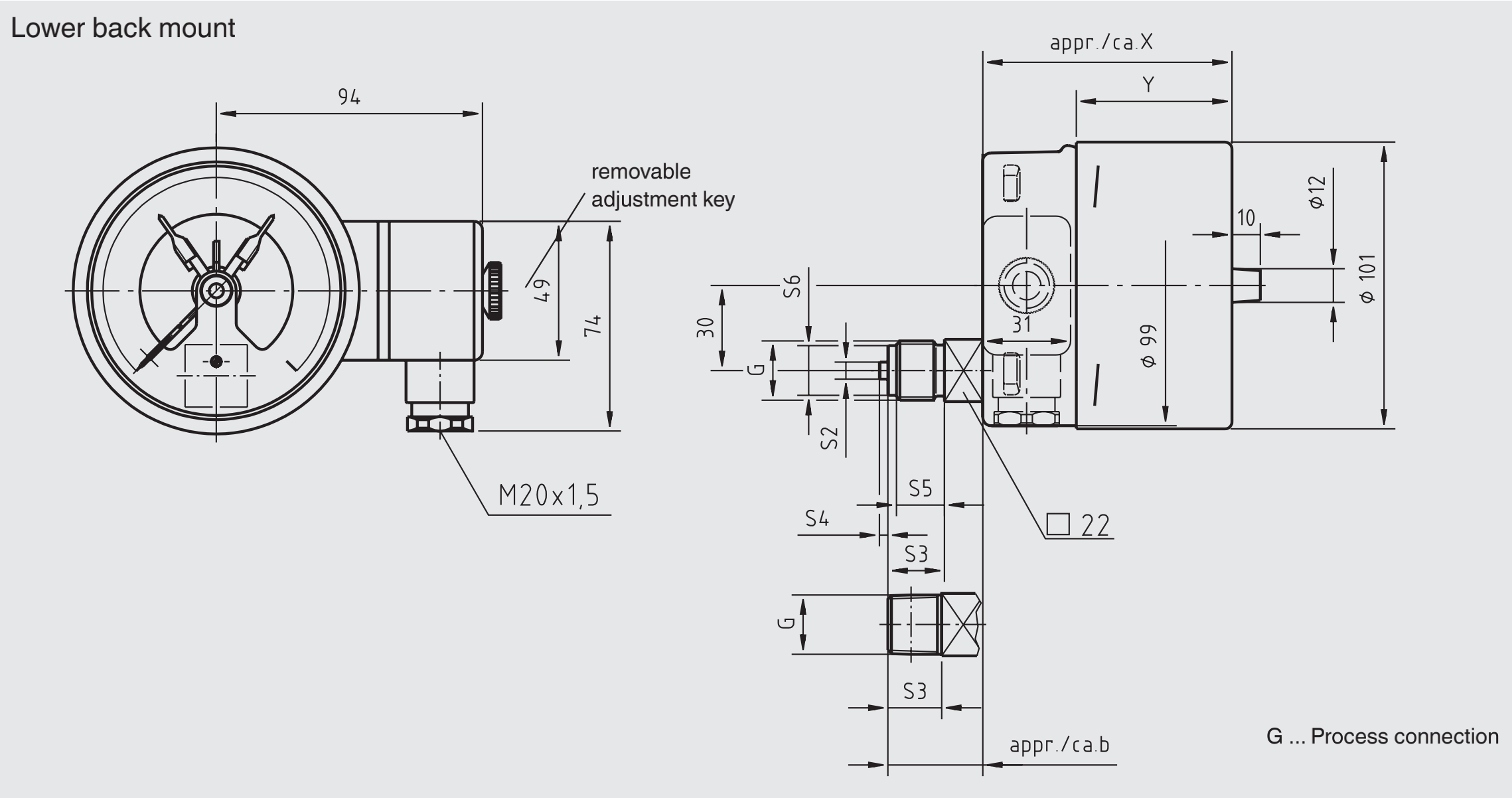

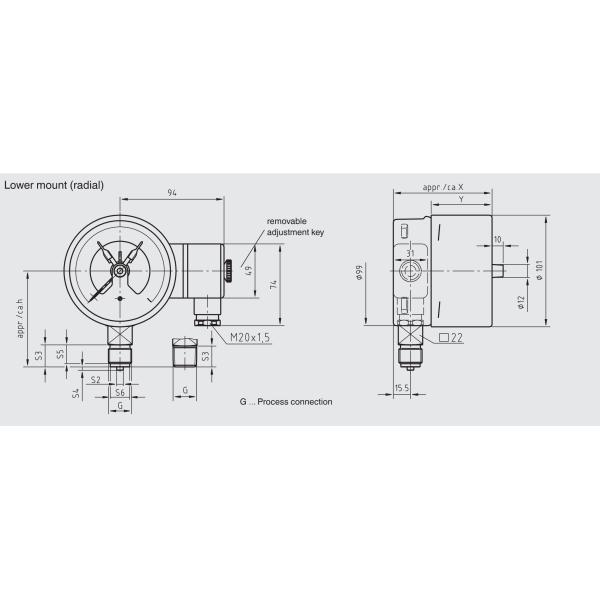

Dimensions

SUS 316 Electric Contact Pressure Gauges Diaphragm 60 Bar Flange Pressure Gauge

SUS 316 Electric Contact Pressure Gauges Diaphragm 60 Bar Flange Pressure Gauge

SUS 316 Electric Contact Pressure Gauges Diaphragm 60 Bar Flange Pressure Gauge

SUS 316 Electric Contact Pressure Gauges Diaphragm 60 Bar Flange Pressure Gauge

Specifications for instruments with magnetic snap-action contact model M12

Measuring span Nominal size Max number of contacts Switching current range
≤ 1.0 bar

100, 160

 1 0.02 ... 0.3 A
> 1.0 bar 100, 160 1 0.02 ... 0.6 A
≤ 1.6 bar 100, 160 2 0.02 ... 0.3 A
> 1.6 bar 100, 160 2 0.02 ... 0.6 A
≤ 4.0 bar 100 3 or 4 0.02 ... 0.3 A
> 4.0 bar 100 3 or 4 0.02 ... 0.6 A
≤ 2.5 bar 160 3 or 4 0.02 ... 0.3 A
> 2.5 bar 160 3 or 4 0.02 ... 0.6 A

The recommended setting range of the contacts is 25 ... 75 % of the scale (0 ... 100 % on request).

Contact material (standard): Silver-nickel, gold-plated

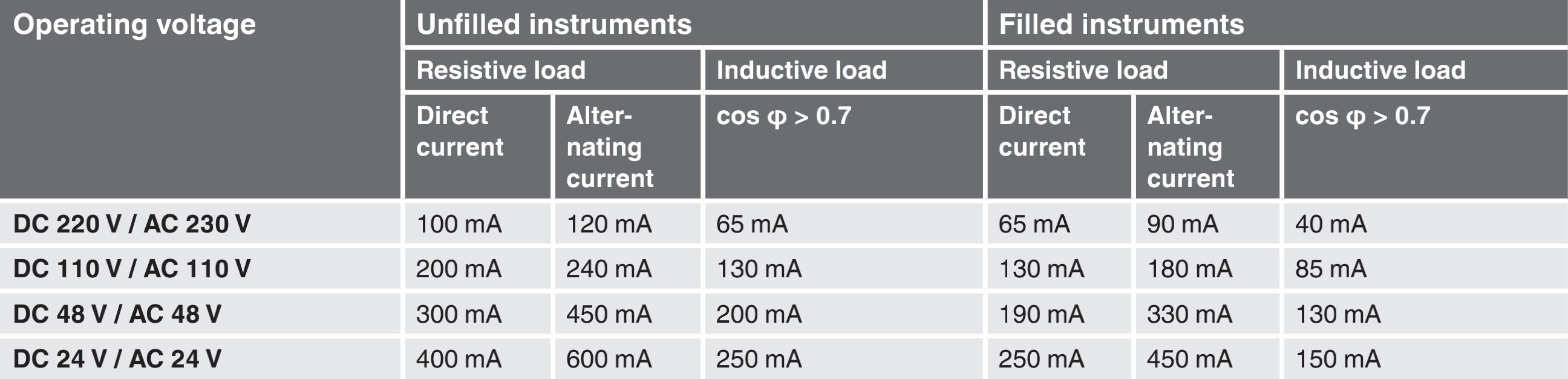

Recommended contact load with resistive and inductive loads

SUS 316 Electric Contact Pressure Gauges Diaphragm 60 Bar Flange Pressure Gauge

Ordering information

Model / Dial size / Pressure Range / Process connection / Options
