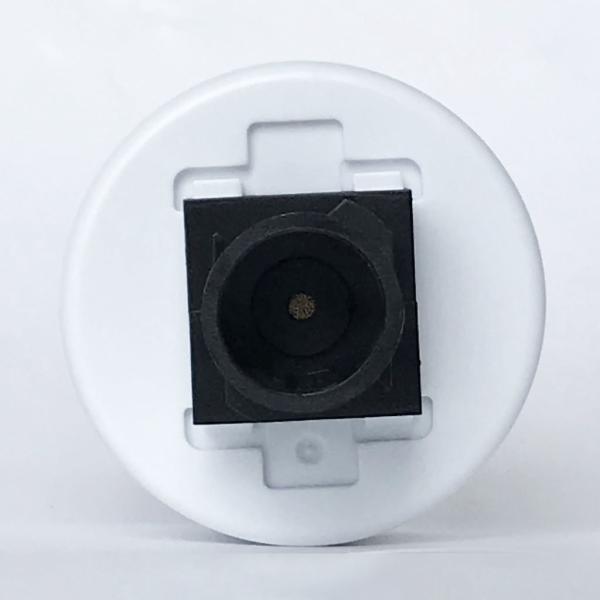

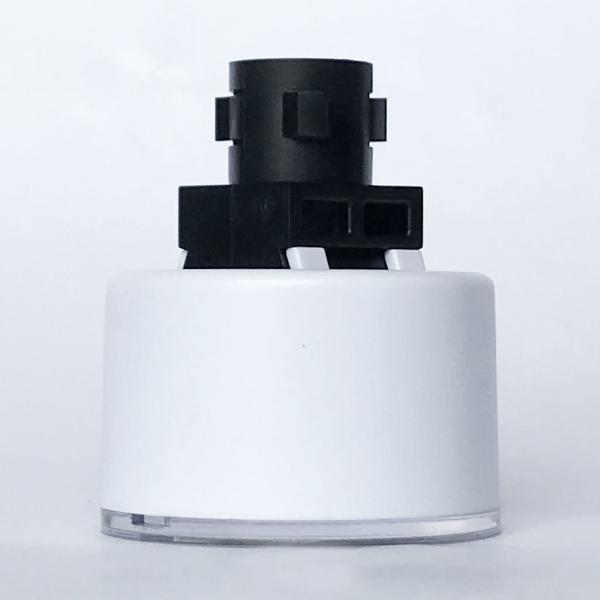

EN 837-1 Medical Pressure Gauge 40mm 10 ATM Clinical Manometer Axial Mount
EN 837-1 Medical Pressure Gauge 40mm 10 ATM Clinical Manometer Axial Mount
EN 837-1 Medical Pressure Gauge 40mm 10 ATM Clinical Manometer Axial Mount
EN 837-1 Medical Pressure Gauge 40mm 10 ATM Clinical Manometer Axial Mount
EN 837-1 Medical Pressure Gauge 40mm 10 ATM Clinical Manometer Axial Mount
EN 837-1 Medical Pressure Gauge 40mm 10 ATM Clinical Manometer Axial Mount
EN 837-1 Medical Pressure Gauge 40mm 10 ATM Clinical Manometer Axial Mount
EN 837-1 Medical Pressure Gauge 40mm 10 ATM Clinical Manometer Axial Mount
EN 837-1 Medical Pressure Gauge 40mm 10 ATM Clinical Manometer Axial Mount
EN 837-1 Medical Pressure Gauge 40mm 10 ATM Clinical Manometer Axial Mount
Specifications
Brand Name :
WESEN or Customized
Model Number :
M06.02.040.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
40mm
Mount :
Axial
Pressure Range :
10 ATM, customized
Case Material :
Plastic
Lens Material :
Acrylic
Bourton Tube :
Brass
Movement :
Brass
Socket :
Plastic
Color :
Yellow, white
Description

40mm Medical Pressure Gauge 10 ATM Plastic Connection Clinical Manometer

Description

The movement of the free end is non-linear as the same pressure increase at a Bourdon tube at rest has a greater effect on the displacement of the free end than when the tube has already been partially straightened. The reason for this is the resistance of the tube that increases when it becomes more straightened.

Applications

Medical Inflation Device

Inflation Device Kits

Balloon Inflation Device

Inflation Syringe

Inflate and deflate dilation balloon

Manual balloon catheter pump

​​

Special features

Constructed from hygienic materials

Specifications

Design

EN 837-1

Nominal size

 40mm

Accuracy

 2.5
Pressure range 10 ATM

Pressure limitation

Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value
Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +60 °C maximum

Ingress protection

 IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass, copper alloy

Pressure element

 Brass
Movement Brass
Dial ABS, colorful, without pointer stop pin, customized
Pointer Aluminum
Case Plastic
Window Plastic
Unit

ATM
Thread G, BSP, PT, BSPT, NPT, other connections
Options Customized logo

Popular medical pressure gauge

EN 837-1 Medical Pressure Gauge 40mm 10 ATM Clinical Manometer Axial Mount

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

EN 837-1 Medical Pressure Gauge 40mm 10 ATM Clinical Manometer Axial Mount
