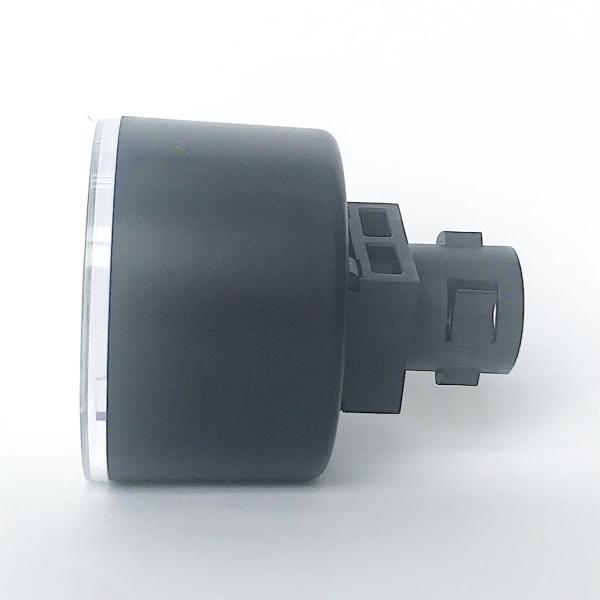

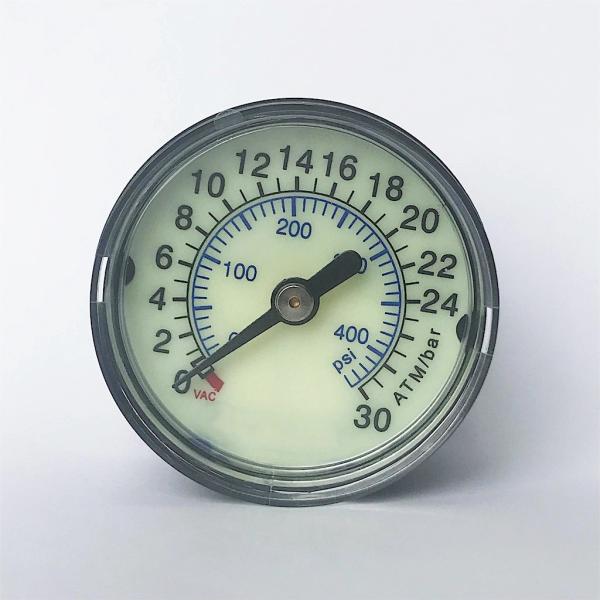

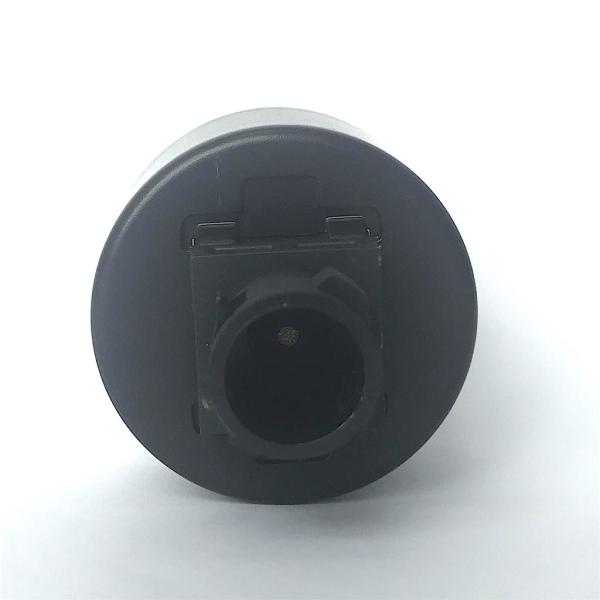

Black Acrylic Lens Pressure Gauge Dial 30 ATM 40mm Plastic Pressure Gauge
Black Acrylic Lens Pressure Gauge Dial 30 ATM 40mm Plastic Pressure Gauge
Black Acrylic Lens Pressure Gauge Dial 30 ATM 40mm Plastic Pressure Gauge
Black Acrylic Lens Pressure Gauge Dial 30 ATM 40mm Plastic Pressure Gauge
Black Acrylic Lens Pressure Gauge Dial 30 ATM 40mm Plastic Pressure Gauge
Black Acrylic Lens Pressure Gauge Dial 30 ATM 40mm Plastic Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M06.02.040.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
40mm
Mount :
Axial direction
Pressure Range :
30 ATM, customized
Case Material :
Plastic
Lens Material :
Acrylic
Bourton Tube :
SS 316
Movement :
SS 304
Dial :
Plastic, yellow
Color :
Black
Description

40mm Blue Dial 30 ATM Medical Pressure Gauge Plastic Case Plastic Connector

Description

The Bourdon tube is also sensitive to temperature changes. At low temperatures the tube will be much stiffer and more difficult to straighten. To keep this temperature effect as small as possible the construction material of the tube should be well chosen. Materials having an modulus of elasticity which is insensitive to temperature change are recommended. Fast response time and good sensitivity are among the more desirable features of the Bourdon tube.

Applications

Medical inflation device, inflation device kits, balloon inflation device, inflation syringe

Inflate and deflate dilation balloon, manual balloon catheter pump

Angioplasty inflation devices, anesthesia equipment, medical regulators, respiratory equipment, dental systems, and many more

​​

Special features

Constructed from hygienic materials

Specifications

Design

EN 837-1

Nominal size

 40mm

Accuracy

 2.5
Pressure range 30 ATM

Pressure limitation

Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value
Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +60 °C maximum

Ingress protection

 IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Plastic

Pressure element

 SS
Movement SS
Dial ABS, colorful, without pointer stop pin, customized
Pointer Aluminum
Case Plastic
Window Plastic
Unit

ATM
Thread G, BSP, PT, BSPT, NPT, other connections
Options Customized logo

Popular medical pressure gauge

Black Acrylic Lens Pressure Gauge Dial 30 ATM 40mm Plastic Pressure Gauge

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

Black Acrylic Lens Pressure Gauge Dial 30 ATM 40mm Plastic Pressure Gauge
