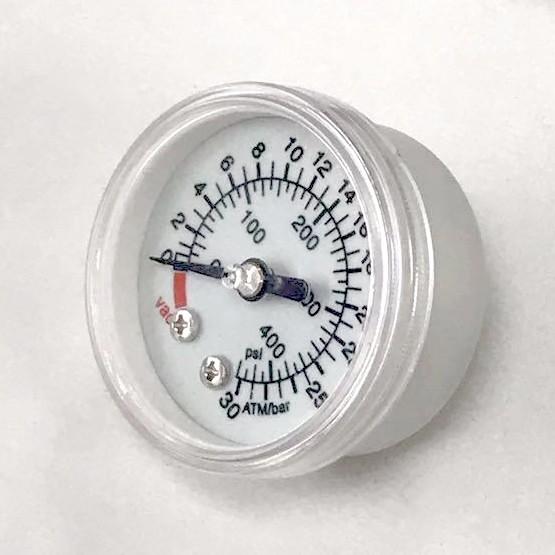

Brass Connector Manometer Medical Pressure Gauge Luminous Dial 30 ATM 40mm Acrylic Lens
Brass Connector Manometer Medical Pressure Gauge Luminous Dial 30 ATM 40mm Acrylic Lens
Brass Connector Manometer Medical Pressure Gauge Luminous Dial 30 ATM 40mm Acrylic Lens
Brass Connector Manometer Medical Pressure Gauge Luminous Dial 30 ATM 40mm Acrylic Lens
Brass Connector Manometer Medical Pressure Gauge Luminous Dial 30 ATM 40mm Acrylic Lens
Brass Connector Manometer Medical Pressure Gauge Luminous Dial 30 ATM 40mm Acrylic Lens
Brass Connector Manometer Medical Pressure Gauge Luminous Dial 30 ATM 40mm Acrylic Lens
Brass Connector Manometer Medical Pressure Gauge Luminous Dial 30 ATM 40mm Acrylic Lens
Specifications
Brand Name :
WESEN or Customized
Model Number :
M06.02.040.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1000 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
40mm
Mount :
Axial direction
Pressure Range :
30 ATM, customized
Case Material :
Plastic
Lens Material :
Acrylic
Bourton Tube :
Brass
Movement :
Brass
Dial :
Plastic, white
Color :
White
Description

40mm Luminous Dial 30 ATM Medical Pressure Gauge Plastic Case Brass Connector Manometer

Description

The accuracy is situated between +/- 0.1 to +/- 5% of full scale and is determined by the Bourdon tube diameter, the wall thickness and the shape of the tube's cross section, the quality of the design and the calibration. Incorrect installation or improper use can also cause a loss of accuracy.

Applications

Medical inflation device, inflation device kits, balloon inflation device, inflation syringe

Inflate and deflate dilation balloon, manual balloon catheter pump

Angioplasty inflation devices, anesthesia equipment, medical regulators, respiratory equipment, dental systems, and many more

​​

Special features

Constructed from hygienic materials

Specifications

Design

EN 837-1

Nominal size

 40mm

Accuracy

 2.5
Pressure range 30 ATM

Pressure limitation

Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value
Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +60 °C maximum

Ingress protection

 IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Plastic

Pressure element

 Brass
Movement Brass
Dial ABS, white, without pointer stop pin, customized
Pointer Aluminum
Case Plastic
Window Plastic
Unit

ATM
Thread G, BSP, PT, BSPT, NPT, other connections
Options Customized logo

Popular medical pressure gauge

Brass Connector Manometer Medical Pressure Gauge Luminous Dial 30 ATM 40mm Acrylic Lens

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

Brass Connector Manometer Medical Pressure Gauge Luminous Dial 30 ATM 40mm Acrylic Lens
