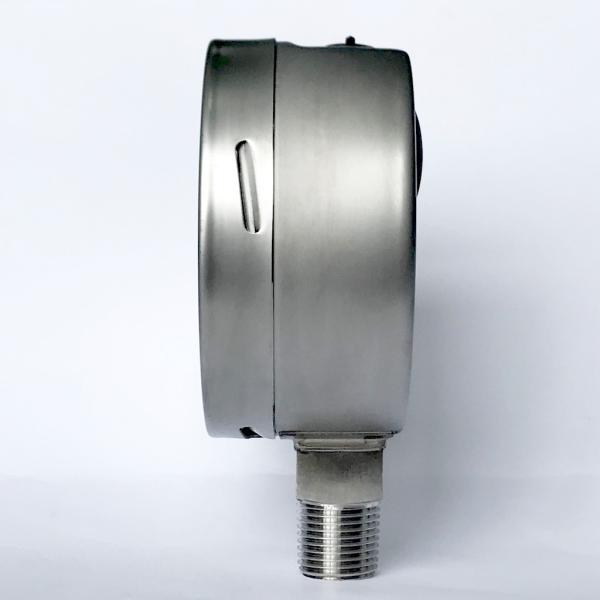

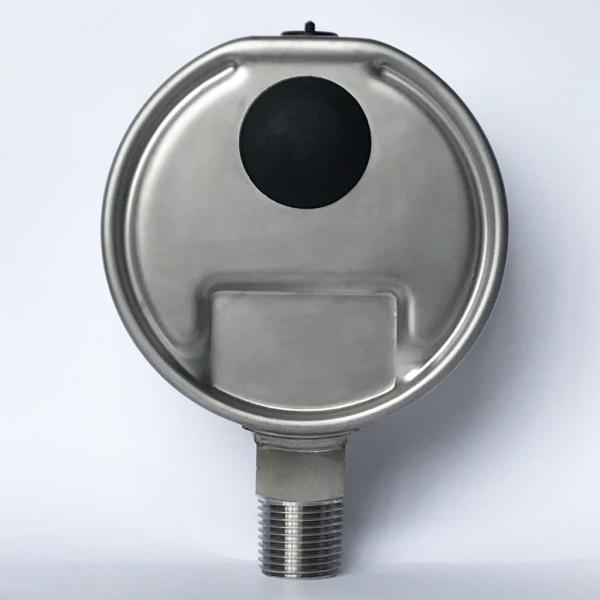

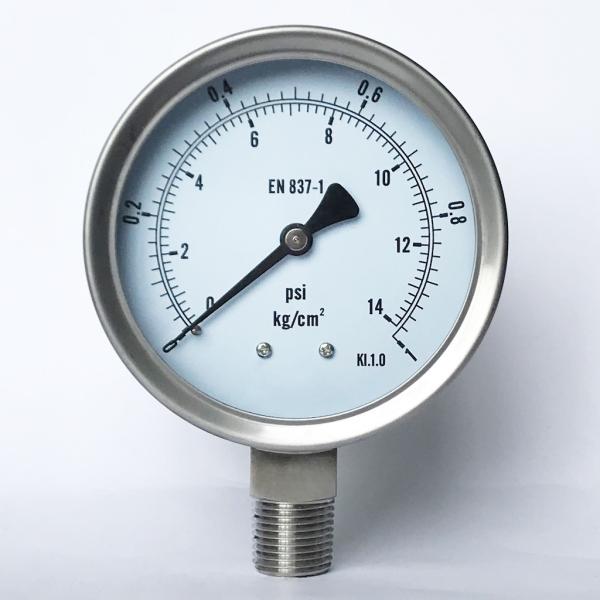

4 1 kg/cm2 Glycerin Fillable Manometer SUS 316 Tube/Socket All Stainless Steel Pressure Gauge
4 1 kg/cm2 Glycerin Fillable Manometer SUS 316 Tube/Socket All Stainless Steel Pressure Gauge
4 1 kg/cm2 Glycerin Fillable Manometer SUS 316 Tube/Socket All Stainless Steel Pressure Gauge
4 1 kg/cm2 Glycerin Fillable Manometer SUS 316 Tube/Socket All Stainless Steel Pressure Gauge
4 1 kg/cm2 Glycerin Fillable Manometer SUS 316 Tube/Socket All Stainless Steel Pressure Gauge
4 1 kg/cm2 Glycerin Fillable Manometer SUS 316 Tube/Socket All Stainless Steel Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M02.01.100.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
100mm
Mount :
Lower Mount
Pressure Range :
1 kg/cm2 or Customized
Case Material :
316 SS
Lens Material :
Glass, safety glass
Bourton Tube :
316 SS
Movement :
304 SS
Socket :
316 SS
Accuracy :
KL 1.0
Description

4" 1 kg/cm2 Glycerin Fillable Manometer SUS 316 Tube/Socket All Stainless Steel Pressure Gauge

Description

Regardless of the application, industrial and process-grade gauges with stainless steel components offer reliability, high precision, and long service life in the harshest conditions. For more information about whether a copper alloy or stainless steel pressure gauge is right for your specific application, contact Wesen.

Applications

Intended for adverse service conditions where pulsating or vibration exists

Chemical and petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction

Suitable for gaseous or liquid media that will not obstruct the pressure system

Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Pressure ranges up to 15,000 psi

Specifications

Design

EN 837-1

Nominal size

 100mm

Accuracy

 Class 1.0
Pressure range 1 kg/cm2 (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value
Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 Stainless steel, C-type or helical type
Movement Stainless steel
Dial Aluminium, white, with pointer stop pin
Black and red lettering
Pointer Aluminium, adjustable type
Case Stainless steel
Ring Bayonet ring, stainless steel
Window Plastic, glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread 3/8 G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket

Dimensions

4

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

4
