2.5 100 psi Oil Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge for Hydraulic Industries
2.5 100 psi Oil Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge for Hydraulic Industries
2.5 100 psi Oil Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge for Hydraulic Industries
2.5 100 psi Oil Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge for Hydraulic Industries
2.5 100 psi Oil Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge for Hydraulic Industries
2.5 100 psi Oil Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge for Hydraulic Industries
Specifications
Brand Name :
WESEN or Customized
Model Number :
M02.0X.063.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
63mm

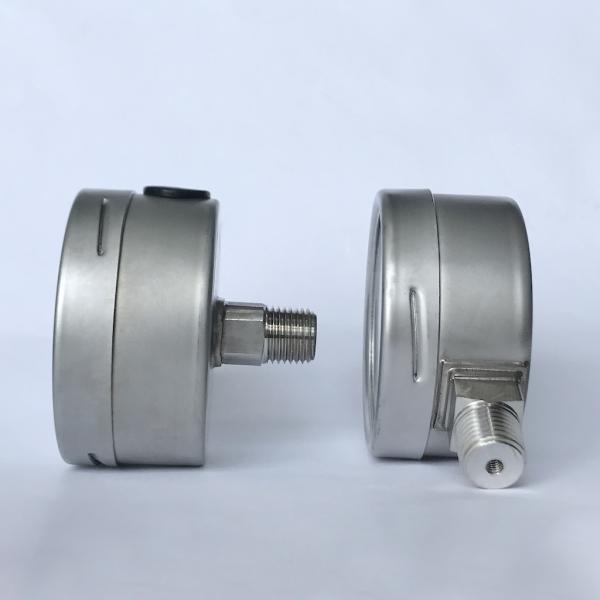

Mount :
Bottom, Back
Pressure Range :
100 psi or Customized
Case Material :
316 SS
Lens Material :
Glass, safety glass
Bourton Tube :
316 SS
Movement :
304 SS
Socket :
316 SS
Accuracy :
KL 1.6
Description

2.5" 100 psi Oil Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge for Hydraulic Industries

Description

Even with non-corrosive media, it is critical to verify the media compatibility and makeup of the copper alloy. This is because some media can be completely harmless in certain states and stages, yet become aggressive in the presence of other substances, such as water or oxygen. For example, carbon dioxide is chemically stable and inert, but becomes carbonic acid (H2CO3) when dissolved in water.

Applications

Intended for adverse service conditions where pulsating or vibration exists

Chemical and petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction

Suitable for gaseous or liquid media that will not obstruct the pressure system

Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Pressure ranges up to 15,000 psi

Specifications

Design

EN 837-1

Nominal size

 63mm

Accuracy

 Class 1.6
Pressure range 100 psi (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value
Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 Stainless steel, C-type or helical type
Movement Stainless steel
Dial Aluminium, white, with pointer stop pin
Black and red lettering
Pointer Aluminium, adjustable type
Case Stainless steel
Ring Bayonet ring, stainless steel
Window Plastic, glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread 1/4 G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket

Dimensions

2.5

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

2.5
