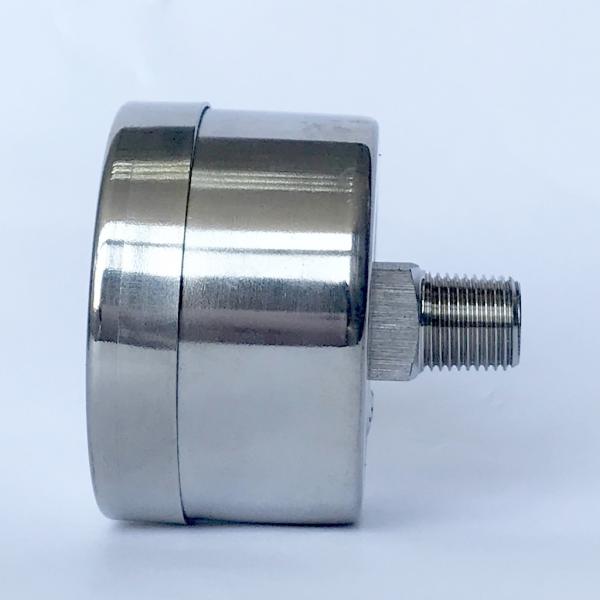

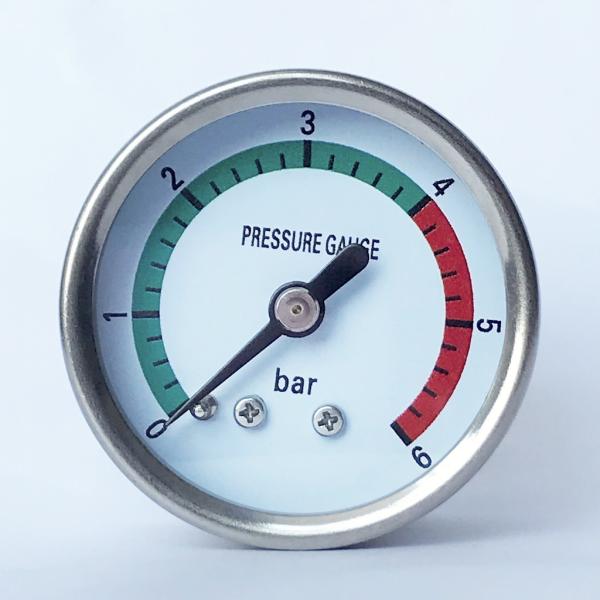

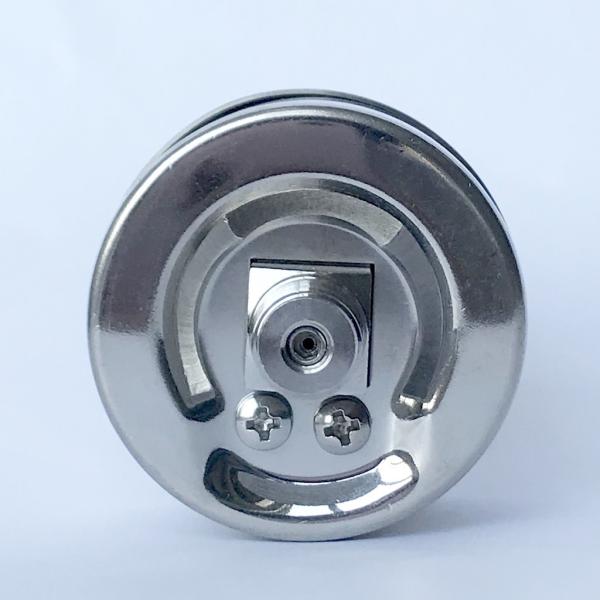

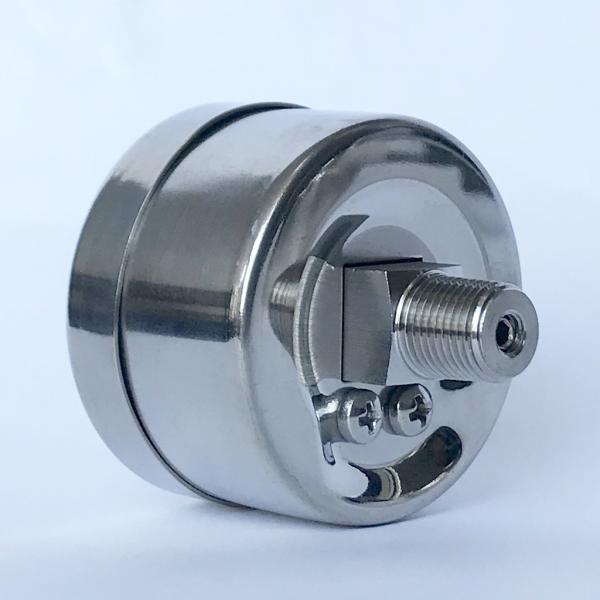

1.5 Inches Dial 6 bar Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge
1.5 Inches Dial 6 bar Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge
1.5 Inches Dial 6 bar Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge
1.5 Inches Dial 6 bar Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge
1.5 Inches Dial 6 bar Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge
1.5 Inches Dial 6 bar Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge
1.5 Inches Dial 6 bar Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge
1.5 Inches Dial 6 bar Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M02.02.040.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
40mm
Mount :
Center Back Mount
Pressure Range :
6 bar or Customized
Case Material :
316 SS
Lens Material :
Glass, safety glass
Bourton Tube :
316 SS
Movement :
304 SS
Socket :
316 SS
Accuracy :
KL 2.5
Description

1.5 Inches Dial 6 bar Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge

Description

This manometer with its minimal design has multitude of applications some of which are machine making and also failure alarm indicator on gas cylinders. However the gauge is non-fillable.

This gauge has stainless steel 316 case and connection with a snap-in lens which is both scratch-r esistant and break-resistant.

All InstruMate pressure gauges have geometrically balanced dial designs, thus a much easier reading experience.

Applications

Intended for adverse service conditions where pulsating or vibration exists

Chemical and petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction

Suitable for gaseous or liquid media that will not obstruct the pressure system

Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Pressure ranges up to 15,000 psi

Specifications

Design

EN 837-1

Nominal size

 40mm

Accuracy

 Class 2.5
Pressure range 6 bar (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value
Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 Stainless steel, C-type or helical type
Movement Stainless steel
Dial Aluminium, white, with pointer stop pin
Black and red lettering
Pointer Aluminium, adjustable type
Case Stainless steel
Ring Bayonet ring, stainless steel
Window Plastic, glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread 1/8 G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket

Dimensions

1.5 Inches Dial 6 bar Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

1.5 Inches Dial 6 bar Manometer 316 SS Tube/Socket All Stainless Steel Pressure Gauge
