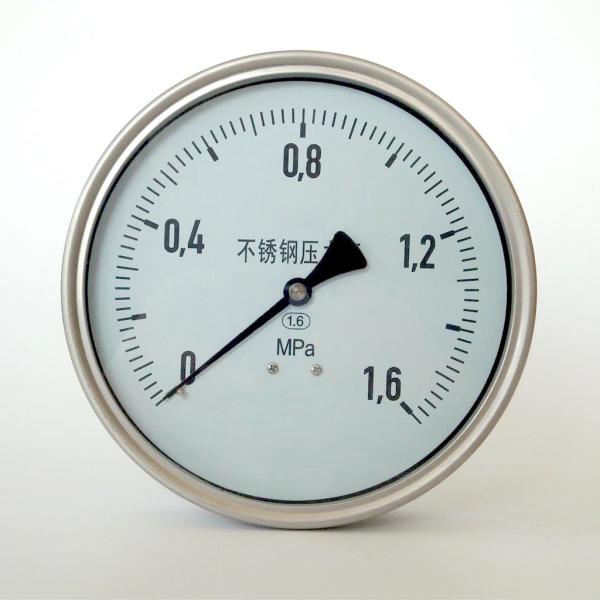

EN 837-1 1.6 MPa All Stainless Steel Pressure Gauge Blow Out Protection 1/2 PT SUS 316
EN 837-1 1.6 MPa All Stainless Steel Pressure Gauge Blow Out Protection 1/2 PT SUS 316
EN 837-1 1.6 MPa All Stainless Steel Pressure Gauge Blow Out Protection 1/2 PT SUS 316
EN 837-1 1.6 MPa All Stainless Steel Pressure Gauge Blow Out Protection 1/2 PT SUS 316
EN 837-1 1.6 MPa All Stainless Steel Pressure Gauge Blow Out Protection 1/2 PT SUS 316
EN 837-1 1.6 MPa All Stainless Steel Pressure Gauge Blow Out Protection 1/2 PT SUS 316
Specifications
Brand Name :
WESEN or Customized
Model Number :
M02.01.150.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
150mm
Mount :
Lower back
Pressure Range :
1.6 MPa or Customized
Case Material :
SUS 316
Lens Material :
Glass, safety glass
Bourton Tube :
SUS 316
Movement :
SUS 304
Socket :
SUS 316
Accuracy :
KL 1.6
Description

6" Dia.1.6 MPa Lower Back Manometer SUS 316 Tube/Socket 1/2 PT Blow-out Protection All Stainless Steel Pressure Gauge

Description
A wide range of all stainless steel construction gauges, dry or dry fillable, are stocked for typical use in the food and drink, pharmaceutical and petrochemical process industries.
Stainless steel (SS316) internals and wetted parts make the gauge more resistant to corrosive or high temperature substances entering the gauge. However, please contact us should you have any doubt about high process temperatures or the suitability of SS316 with your measured substance. Many alternative materials and options are available.
For the measurement of fluid liquids that are not:- highly viscous, high temperature (over 150°C) or likely to solidify/crystallize.

Applications

Intended for adverse service conditions where pulsating or vibration exists

Chemical and petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction

Suitable for gaseous or liquid media that will not obstruct the pressure system

Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Pressure ranges up to 15,000 psi

Specifications

Design

EN 837-1

Nominal size

 150mm

Accuracy

 Class 1.6
Pressure range 1.6 MPa (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value
Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 Stainless steel, C-type or helical type
Movement Stainless steel
Dial Aluminium, white, with pointer stop pin
Black and red lettering
Pointer Aluminium, adjustable type
Case Stainless steel
Ring Bayonet ring, stainless steel
Window Plastic, glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread 1/2 G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket

Dimensions

EN 837-1 1.6 MPa All Stainless Steel Pressure Gauge Blow Out Protection 1/2 PT SUS 316

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

EN 837-1 1.6 MPa All Stainless Steel Pressure Gauge Blow Out Protection 1/2 PT SUS 316
