100mm Hydraulic Pressure Gauge 3000 Psi KL 1.0 Bottom Mount Pressure Gauge
100mm Hydraulic Pressure Gauge 3000 Psi KL 1.0 Bottom Mount Pressure Gauge
100mm Hydraulic Pressure Gauge 3000 Psi KL 1.0 Bottom Mount Pressure Gauge
100mm Hydraulic Pressure Gauge 3000 Psi KL 1.0 Bottom Mount Pressure Gauge
100mm Hydraulic Pressure Gauge 3000 Psi KL 1.0 Bottom Mount Pressure Gauge
100mm Hydraulic Pressure Gauge 3000 Psi KL 1.0 Bottom Mount Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M02.01.100.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
100mm
Mount :
Bottom
Pressure Range :
200 bar or Customized
Case Material :
Stainless Steel
Lens Material :
Glass, safety glass
Bourton Tube :
Stainless Steel
Movement :
Stainless Steel
Dial :
Aluminum
Accuracy :
KL 1.0
Description

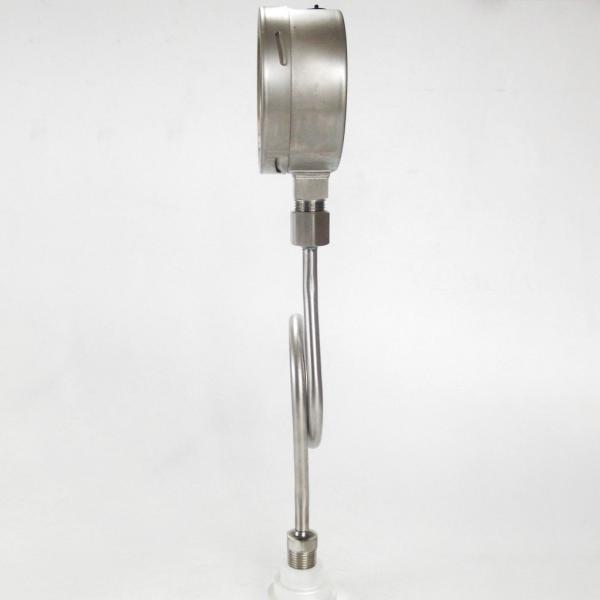

4" 3000 psi Hot Medium Manometer All Stainless Steel Pressure Gauge with Radiating Pipe

Description

Pressure gages should be provided on the suction and discharge of a firewater pump. A suction pressure gage is not required for vertical shaft, turbine type pumps taking suction from a well, open wet pit or offshore facility (as the gage itself would be in the submerged liquid). These gages provide assistance to verify the normal pump function during daily operations and to assist in the conduction of periodic flow performance verification tests. They should be placed or fitted where they are easily readable during operation of the pump by the personnel that attend the operation of the system and give an accurate reading of the performance of the pumping system. Additionally, a pressure transducer can supplement the gages to provide direct readout of pump pressures in the control room or through the distributed control system (DCS) or other utility monitoring system.

Applications

For aggressive gaseous and liquid media that are not highly crystallising, also operates in aggressive environments

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Machine building and general plant construction

Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Scale ranges up to 0 ... 1600 bar

Specifications

Design

EN 837-1

Nominal size

 100mm

Accuracy

 1.6, 1.0, 2.5
Pressure range 200 bar (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value
Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 Stainless steel, C-type or helical type
Movement Stainless steel
Dial Aluminium, colorful, without pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Ring Bayonet ring, stainless steel
Window Plastic, glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket

Dimensions

Model M03.01, lower mount (radial)

100mm Hydraulic Pressure Gauge 3000 Psi KL 1.0 Bottom Mount Pressure Gauge

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

100mm Hydraulic Pressure Gauge 3000 Psi KL 1.0 Bottom Mount Pressure Gauge
