10 MPa Cl 1.6 Pressure Gauge Radial 250mm Big Dial Manometer
10 MPa Cl 1.6 Pressure Gauge Radial 250mm Big Dial Manometer
10 MPa Cl 1.6 Pressure Gauge Radial 250mm Big Dial Manometer
10 MPa Cl 1.6 Pressure Gauge Radial 250mm Big Dial Manometer
10 MPa Cl 1.6 Pressure Gauge Radial 250mm Big Dial Manometer
10 MPa Cl 1.6 Pressure Gauge Radial 250mm Big Dial Manometer
Specifications
Brand Name :
WESEN or Customized
Model Number :
M02.01.250.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
250mm
Mount :
Radial
Pressure Range :
10 MPa or Customized
Ring :
Bayonet type
Case Material :
SS 316L
Window :
Safety glass
Bourton Tube :
SS 316L
Movement :
SS 304
Color :
Metal
Deaign :
EN837-1
Description

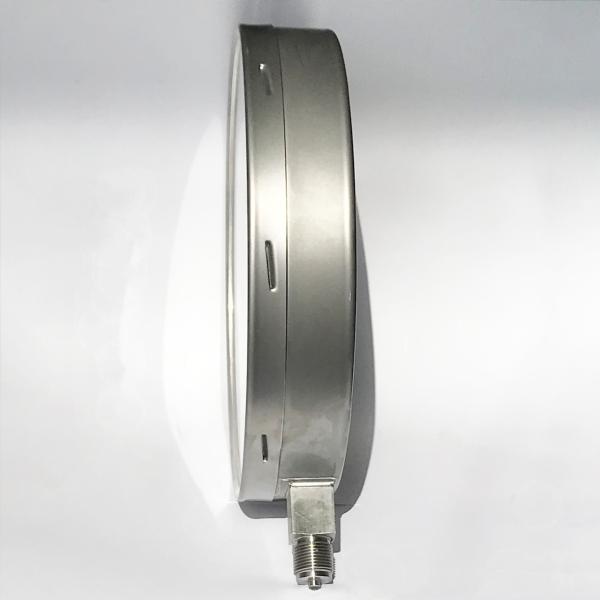

250mm All Stainless Steel Pressure Gauge 10 MPa CL 1.6 Big Dial Manometer

Description

There are many types of gauge styles, the most common being Bourdon tubes and bellow gauges. Bourdon tubes function by taking the pressure and converting it into mechanical energy. This energy moves a dial in the gauge, displaying the current amount of pressure in the system. Bourdon tube gauges are currently some of the most common gauges and have different configurations such as curved, helical and spiral. The different style of tubing, the size of the tube and the material it is made out of all vary based on the pressure range. One important characteristic to note is the cross section of the tubing changes with increasing pressure. Generally, as the working pressure of the gauge increases, the shape of the cross section of the tube’s design will gradually change from an oval shape to a circular shape.

Applications

For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments

Oil and gas industry, chemical and petrochemical industry, pumbling and HVAC, hydraulics and pneumatics

Machine building and general plant construction

Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Scale ranges up to 0 ... 1600 bar

Specifications

Design

EN 837-1

Nominal size

 250mm

Accuracy

 1.6
Pressure range 10 MPa (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value
Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 SS 316L, H-type bourdon tube
Movement SS 304
Dial Aluminium, white, with pointer stop pin
Black and lettering
Pointer Aluminium
Case SS 304
Ring Bayonet ring, stainless steel
Window PC, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

10 MPa Cl 1.6 Pressure Gauge Radial 250mm Big Dial Manometer
