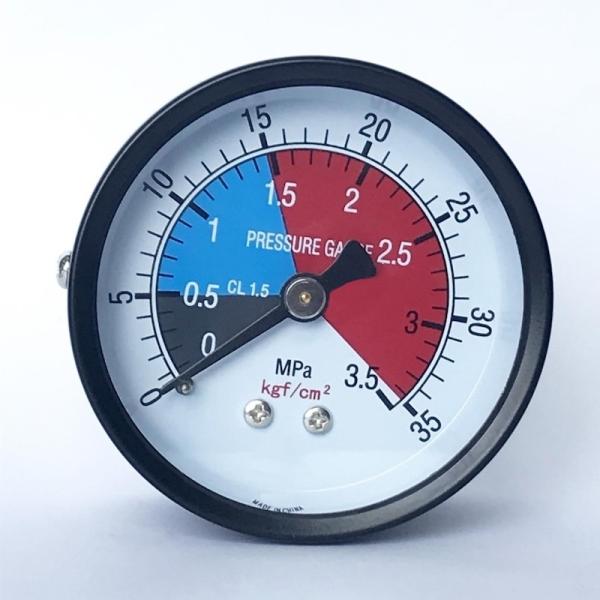

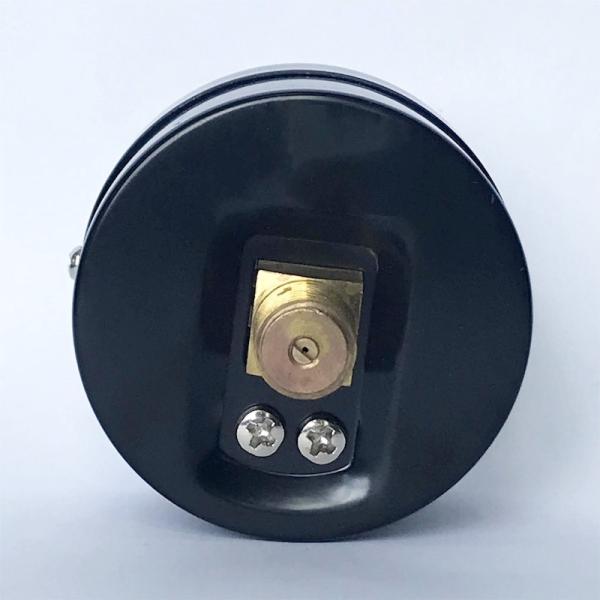

CL 1.5 Center Back Mount Pressure Gauge 63mm 35 Kgf Cm2 Brass Pressure Gauge
CL 1.5 Center Back Mount Pressure Gauge 63mm 35 Kgf Cm2 Brass Pressure Gauge
CL 1.5 Center Back Mount Pressure Gauge 63mm 35 Kgf Cm2 Brass Pressure Gauge
CL 1.5 Center Back Mount Pressure Gauge 63mm 35 Kgf Cm2 Brass Pressure Gauge
CL 1.5 Center Back Mount Pressure Gauge 63mm 35 Kgf Cm2 Brass Pressure Gauge
CL 1.5 Center Back Mount Pressure Gauge 63mm 35 Kgf Cm2 Brass Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M04.02.063.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
63mm
Mount :
Center back
Pressure Range :
35 kgf/cm2 or Customized
Case Material :
Painted Steel
Lens Material :
Glass
Bourton Tube :
Phosphor Bronze
Movement :
Brass
Dial :
Aluminum
Accuracy :
CL 1.5
Description

2.5" Dial 35 kgf/cm2 Back Mount Manometer Brass Tube and Socket Utility Pressure Gauge

Description

Both pulsation and vibration will decrease gauge life if not properly dampened. Gauges subject to pulsation and vibration should be liquid filled or internally dampened. Available accessories that minimize stresses on the Bourdon tube/movement and extend the life of the gauge include pulsation dampeners, pressure snubbers, gauge savers, diaphragm seals and (pigtail) siphons.

Applications

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.

Pneumatics

Heating and air-conditioning technology

Medical engineering

Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 400 bar

Specifications

Design

EN 837-1

Nominal size

 63mm

Accuracy

 1.5
Pressure range 35 kgf/cm2 (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass

Pressure element

 Brass, C-type or helical type

Bourdon tube
Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Painted Steel
Window Glass
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

Model M01.01, lower mount (radial)

CL 1.5 Center Back Mount Pressure Gauge 63mm 35 Kgf Cm2 Brass Pressure Gauge

Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85

Model M01.02, back mount (axial)

CL 1.5 Center Back Mount Pressure Gauge 63mm 35 Kgf Cm2 Brass Pressure Gauge

Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

CL 1.5 Center Back Mount Pressure Gauge 63mm 35 Kgf Cm2 Brass Pressure Gauge
