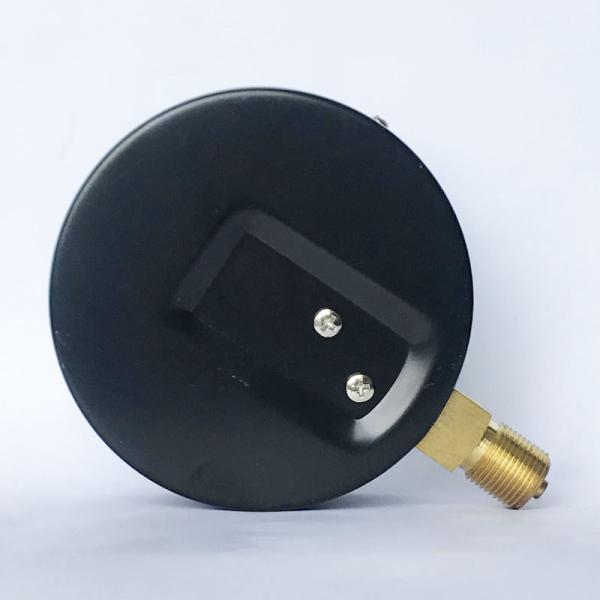

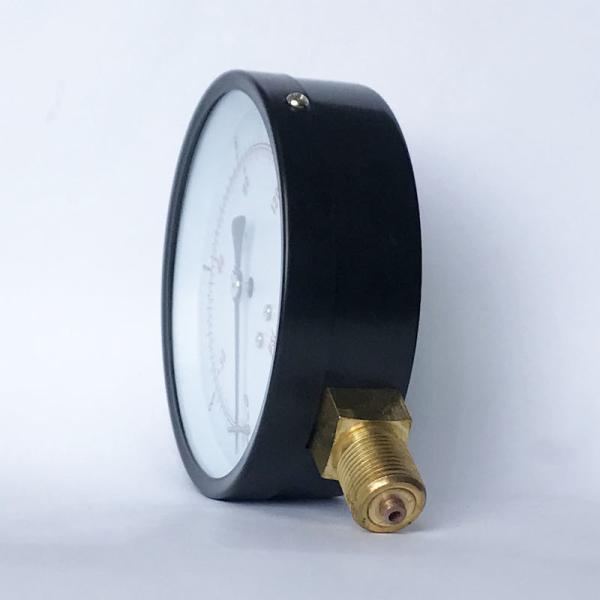

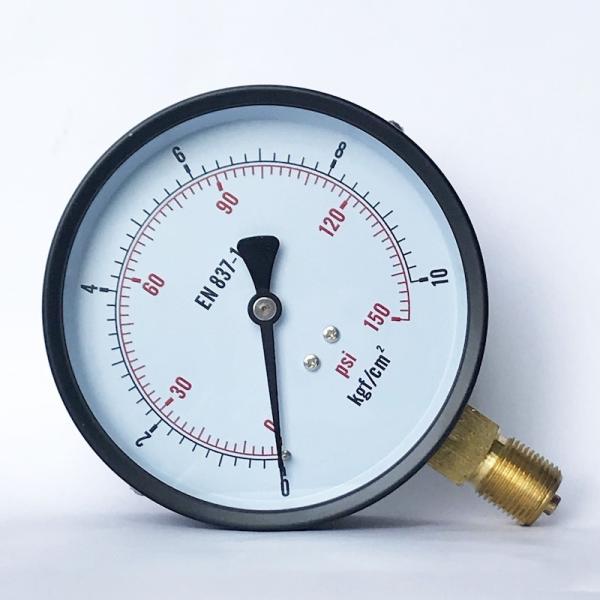

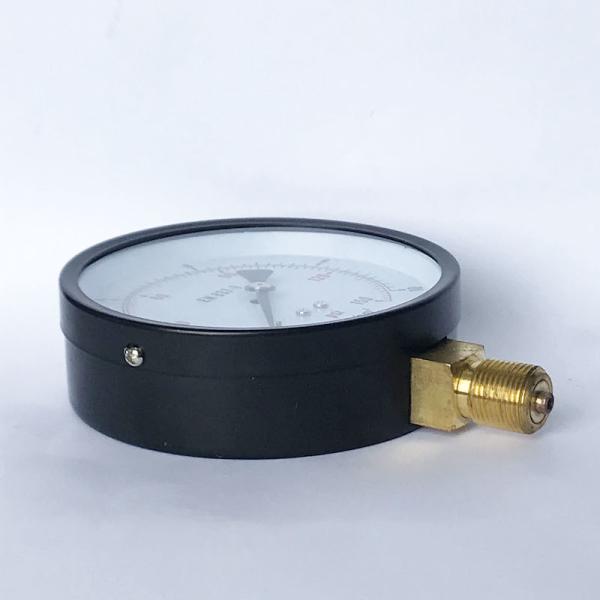

Copper Alloy 150 Psi Pressure Gauge Bottom Mount 100mm Steam Pressure Manometer
Copper Alloy 150 Psi Pressure Gauge Bottom Mount 100mm Steam Pressure Manometer
Copper Alloy 150 Psi Pressure Gauge Bottom Mount 100mm Steam Pressure Manometer
Copper Alloy 150 Psi Pressure Gauge Bottom Mount 100mm Steam Pressure Manometer
Copper Alloy 150 Psi Pressure Gauge Bottom Mount 100mm Steam Pressure Manometer
Copper Alloy 150 Psi Pressure Gauge Bottom Mount 100mm Steam Pressure Manometer
Copper Alloy 150 Psi Pressure Gauge Bottom Mount 100mm Steam Pressure Manometer
Copper Alloy 150 Psi Pressure Gauge Bottom Mount 100mm Steam Pressure Manometer
Copper Alloy 150 Psi Pressure Gauge Bottom Mount 100mm Steam Pressure Manometer
Copper Alloy 150 Psi Pressure Gauge Bottom Mount 100mm Steam Pressure Manometer
Specifications
Brand Name :
WESEN or Customized
Model Number :
M04.01.100.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
100mm, 4"
Mount :
Bottom
Pressure Range :
150 psi or Customized
Case Material :
Black steel
Lens Material :
PC
Bourton Tube :
Phosphor Bronze
Movement :
Copper alloy
Dial :
White background, black lettering
Accuracy :
1.0
Deaign :
EN837-1
Description

4" 100mm Steam Pressure Manometer 150 psi Utility Pressure Gauge

Description

Bourdon tubes are the most common type of elastic analog chamber. A Bourdon tube is an elastic, C-shaped chamber consisting of one of the metals described in the previous section (e.g. copper, steel). When pressurized fluid enters this tube, it causes the tube to uncoil or straighten. This uncoiling of the Bourdon tube activates the gear and shaft assembly – which, in turn, moves the needle on the gauge’s clock-like display. Bourdon tubes may also come in the form of spirals or helices. Overall, this type of elastic chamber comprises a simple yet effective mechanical method for converting changes in pressure to quantitative readings on a scale.

Applications

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.

Pneumatics

Heating and air-conditioning technology

Medical engineering

Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 400 bar

Specifications

Design

EN 837-1

Nominal size

 100mm, 4"

Accuracy

 1.0
Pressure range 150 psi (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass

Pressure element

 Brass, C-type or helical type

Bourdon tube
Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Black steel
Window PC
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

lower mount (radial)

Copper Alloy 150 Psi Pressure Gauge Bottom Mount 100mm Steam Pressure Manometer

Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85

back mount (axial)

Copper Alloy 150 Psi Pressure Gauge Bottom Mount 100mm Steam Pressure Manometer

Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

Copper Alloy 150 Psi Pressure Gauge Bottom Mount 100mm Steam Pressure Manometer
