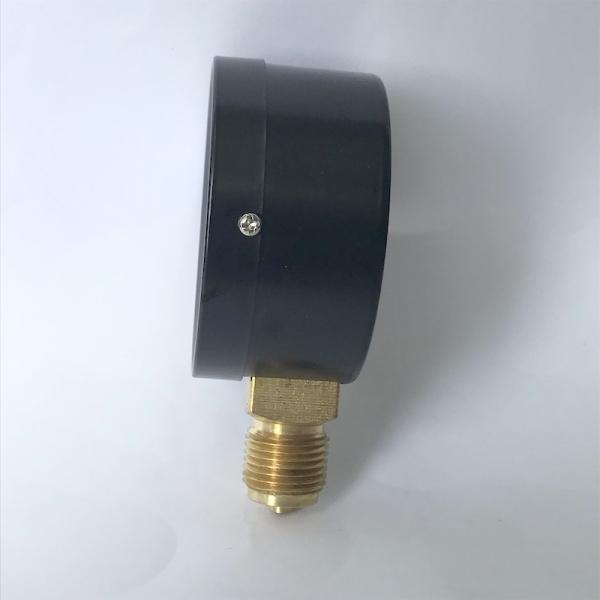

6 Bar Utility Pressure Gauge 80mm Brass Wetted Crop Sprayer Pressure Gauge
6 Bar Utility Pressure Gauge 80mm Brass Wetted Crop Sprayer Pressure Gauge
6 Bar Utility Pressure Gauge 80mm Brass Wetted Crop Sprayer Pressure Gauge
6 Bar Utility Pressure Gauge 80mm Brass Wetted Crop Sprayer Pressure Gauge
6 Bar Utility Pressure Gauge 80mm Brass Wetted Crop Sprayer Pressure Gauge
6 Bar Utility Pressure Gauge 80mm Brass Wetted Crop Sprayer Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M04.01.080.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
80mm
Mount :
Radial direction
Pressure Range :
6 bar or Customized
Case Material :
Black steel
Lens Material :
PC
Bourton Tube :
Phosphor Bronze
Movement :
Copper alloy
Dial :
White background, black lettering
Accuracy :
1.0
Deaign :
EN837-1
Description

80mm 6 bar Black Steel Case Brass Wetted Parts Utility Pressure Gauge for Agricultural Field Sprayers

Description

M04 type pressure gauges are commonly used on applications requiring large dial sizes for easy readability and general industrial applications.

Applications

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.

Pneumatics

Heating and air-conditioning technology

Medical engineering

Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 400 bar

Specifications

Design

EN 837-1

Nominal size

 80mm

Accuracy

 1.0
Pressure range 6 bar (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass

Pressure element

 Brass, C-type or helical type

Bourdon tube
Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Black steel
Window PC
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

lower mount (radial)

6 Bar Utility Pressure Gauge 80mm Brass Wetted Crop Sprayer Pressure Gauge

Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85

back mount (axial)

6 Bar Utility Pressure Gauge 80mm Brass Wetted Crop Sprayer Pressure Gauge

Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

6 Bar Utility Pressure Gauge 80mm Brass Wetted Crop Sprayer Pressure Gauge
