Specifications
Brand Name :
WESEN or Customized
Model Number :
M04.02.100.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
100mm
Mount :
Lower back
Pressure Range :
16 bar or Customized
Case Material :
Black steel
Window :
Glass
Bourton Tube :
Copper alloy
Movement :
Copper alloy
Dial :
Black lettering printed on white plate
Accuracy :
1.0
Color :
Blue
Description

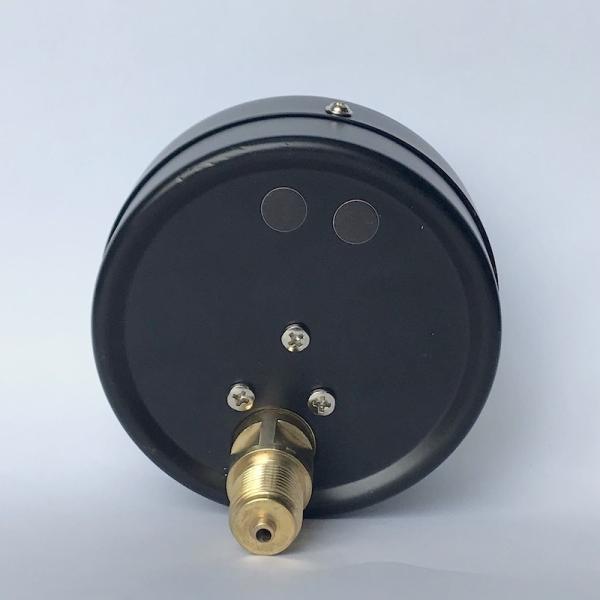

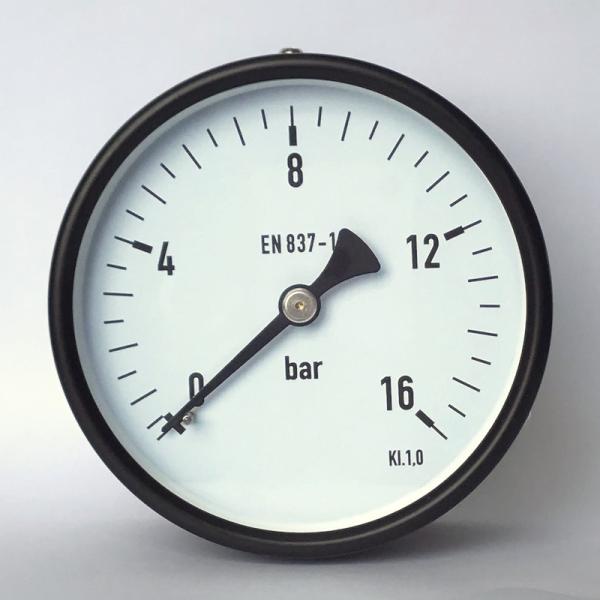

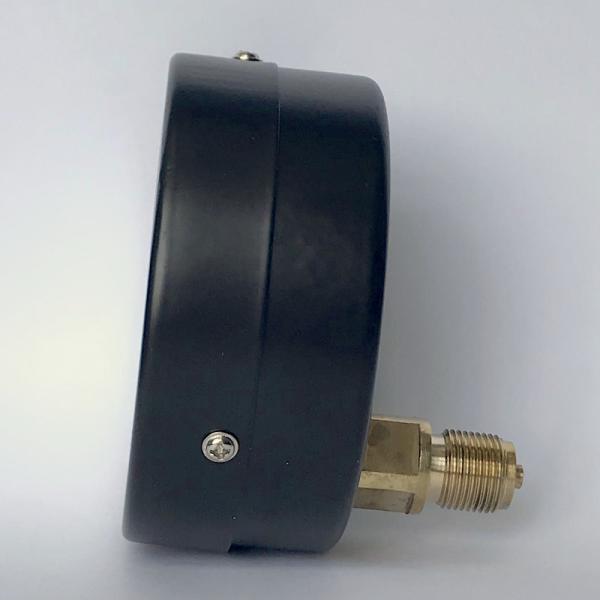

100mm Painted Steel Case 16 bar KL 1.0 Lower Back Mounting Utility Pressure Gauge

Description

Our Industrial HVAC Gauge forms part of our carefully selected range of gauges and accessories; ideally suited for all HVAC applications. Features a Black enameled steel case, 30mm rear safety blow-out disc, Stainless Steel removable bezel, polycarbonate window (glass on 1/2" Bottom Entry) and Brass / Bronze wetted parts. Configurable as either Bottom or Back Entry connection.

Suitable for gases, excluding oxygen or acetylene, up to a maximum of 25 Bar and the the measurement of fluid liquids that are NOT: high viscous, high temperature (over 60°C), likely to crystallize / solidify or that are corrosive to copper or tin alloys.

Applications

For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts.

Pneumatics

Heating and air-conditioning technology

Medical engineering

Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 400 bar

Specifications

Design

EN 837-1

Nominal size

100mm

Accuracy

1.0
Pressure range 16 bar (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Short time: full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Brass

Pressure element

Brass, C-type or helical type

Bourdon tube

Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Painted steel, black
Window Glass
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

Model M01.01, lower mount (radial)

100mm Painted Steel Case 16 bar KL 1.0 Lower Back Mounting Utility Pressure Gauge

Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85

Model M01.02, back mount (axial)

100mm Painted Steel Case 16 bar KL 1.0 Lower Back Mounting Utility Pressure Gauge

Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

100mm Painted Steel Case 16 bar KL 1.0 Lower Back Mounting Utility Pressure Gauge
