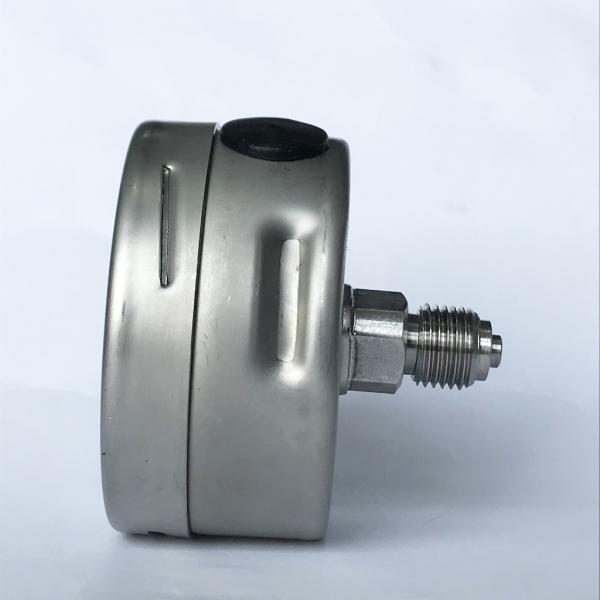

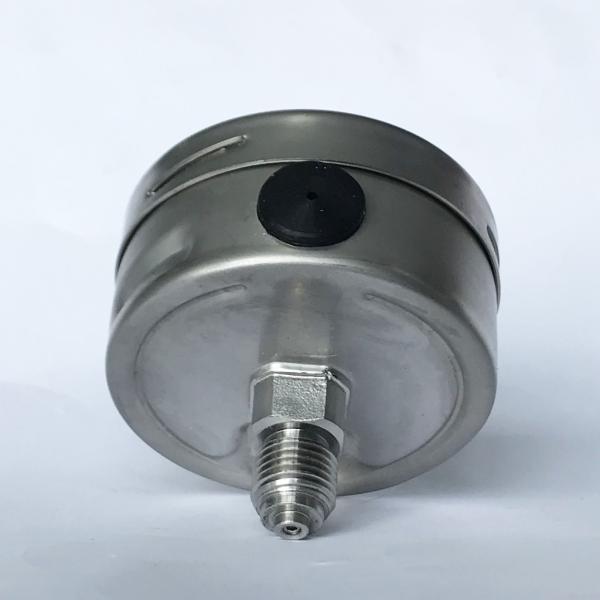

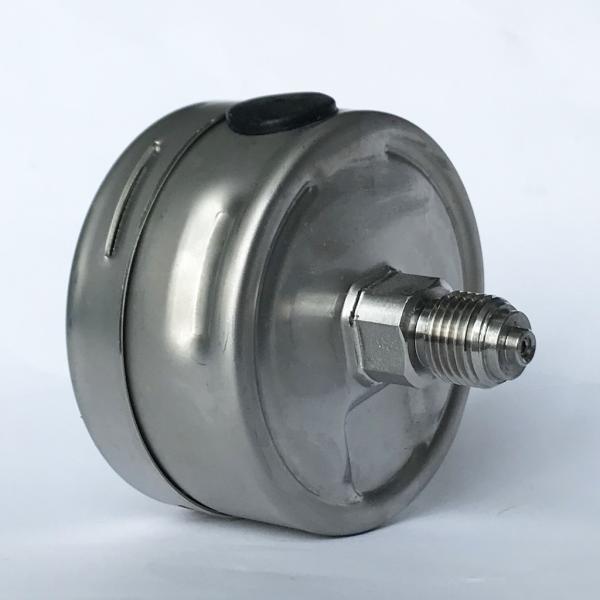

2.5 4 bar Back Connection Manometer G 1/8 1/4 Oil Filled All Stainless Steel Pressure Gauge
2.5 4 bar Back Connection Manometer G 1/8 1/4 Oil Filled All Stainless Steel Pressure Gauge
2.5 4 bar Back Connection Manometer G 1/8 1/4 Oil Filled All Stainless Steel Pressure Gauge
2.5 4 bar Back Connection Manometer G 1/8 1/4 Oil Filled All Stainless Steel Pressure Gauge
2.5 4 bar Back Connection Manometer G 1/8 1/4 Oil Filled All Stainless Steel Pressure Gauge
2.5 4 bar Back Connection Manometer G 1/8 1/4 Oil Filled All Stainless Steel Pressure Gauge
2.5 4 bar Back Connection Manometer G 1/8 1/4 Oil Filled All Stainless Steel Pressure Gauge
2.5 4 bar Back Connection Manometer G 1/8 1/4 Oil Filled All Stainless Steel Pressure Gauge
2.5 4 bar Back Connection Manometer G 1/8 1/4 Oil Filled All Stainless Steel Pressure Gauge
2.5 4 bar Back Connection Manometer G 1/8 1/4 Oil Filled All Stainless Steel Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M02.02.63.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Deaign :
EN837-1
Size :
63mm
Mount :
Center back
Pressure Range :
4 bar or Customized
Case Material :
SS 316L
Lens Material :
Glass, safety glass
Bourton Tube :
SS 316L
Movement :
SS 304
Dial :
Aluminum
Accuracy :
KL 1.6
Description

2.5" 4 bar Back Connection Manometer G 1/8" 1/4" Oil Filled All Stainless Steel Pressure Gauge

Description

Pressure gauges are the simplest, most direct way of measuring pressure. With a variety of measuring techniques and a wide range of sizes and ranges, pressure gauges display pressure at the spot of measurement rather than transmitting the readings to a control or display device. They provide an easy way to see pressure at a glance. Pressure gauges are often analog though digital models provide more versatility and options.

Applications

Intended for adverse service conditions where pulsating or vibration exists

Chemical and petrochemical, power stations, mining, on and offshore, environmental technology, mechanical engineering and plant construction

Suitable for gaseous or liquid media that will not obstruct the pressure system

Special features

Excellent load cycle stability and shock resistance

Design per EN 837-1

Completely from stainless steel

Pressure ranges up to 15,000 psi

Specifications

Design

EN 837-1

Nominal size

 63mm

Accuracy

 1.6
Pressure range 4 bar (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value
Medium temperature

Unfilled gauge: -40 ... +200 °C [-40 ... +392 °F]

Gauge with glycerine filling: -20 ... +100 °C [-4 ... +212 °F]

Gauge with silicone oil filling: -40 ... +100 °C [-40 ... +212 °F]

Ambiet temperature

Unfilled gauge: -40 ... +60 °C [-40 ... +140 °F]

Gauge with glycerine filling: -20 ... +60 °C [-40 ... +140 °F]

Gauge with silicone oil filling: -40 ... +60 °C [-40 ... +140 °F]

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 Stainless steel, C-type or helical type
Movement Stainless steel
Dial Aluminium, white, with pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Ring Rolling ring, stainless steel
Window Plastic, glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread G, BSP, PT, BSPT, NPT
Options Other process connection
Surface mounting flange
Mounting bracket

Dimensions

2.5

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

2.5
