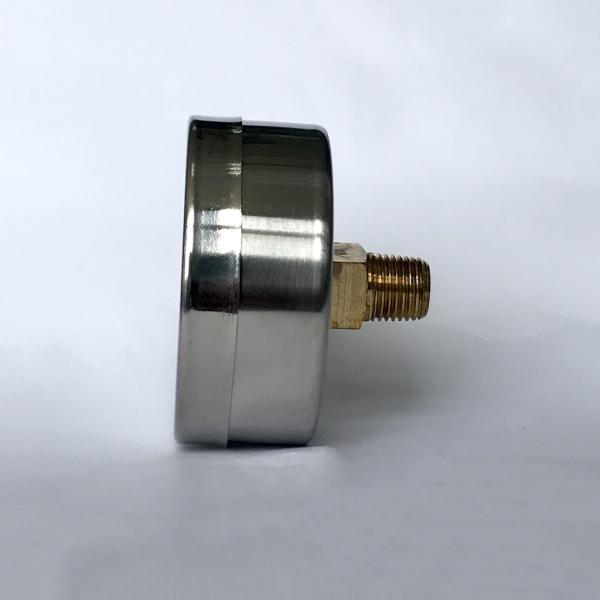

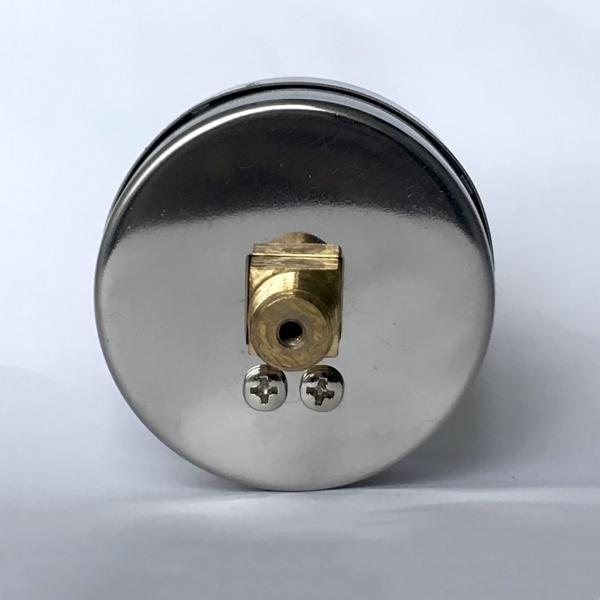

PT NPT G BSP Stainless Steel Pressure Gauge 63mm 160 Psi Pressure Gauge
PT NPT G BSP Stainless Steel Pressure Gauge 63mm 160 Psi Pressure Gauge
PT NPT G BSP Stainless Steel Pressure Gauge 63mm 160 Psi Pressure Gauge
PT NPT G BSP Stainless Steel Pressure Gauge 63mm 160 Psi Pressure Gauge
PT NPT G BSP Stainless Steel Pressure Gauge 63mm 160 Psi Pressure Gauge
PT NPT G BSP Stainless Steel Pressure Gauge 63mm 160 Psi Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M01.02.050.F
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
63mm
Mount :
Back Connection
Pressure Range :
12 bar or customized
Bourdon Tube :
Phosphor bronze
Case Material :
S.S 304
Lens :
Glass
Movement :
Copper alloy
Thread :
1/8" or 1/4" PT, NPT, G, BSP
Accuracy :
2.5
Scale :
Dual
Description

63mm Stainless Steel Pressure Gauge Commen Type 160 psi Brass Connection Manometer with Thread PT NPT G BSP

Description
Many gauges are exposed to harsh substances or chemicals including those that operate in the chemical, petrochemical, refining, power, and pharmaceutical processing industries. Such gauges must be corrosion-resistant; most likely, they be made of stainless steel. On the other hand, for pressure gauges that will encounter only non-corrosive fluids or gases, brass or bronze construction will probably be adequate.

Applications

Injection Molding Device, hydraulic

Machine building and plant construction

Heating and air-conditioning technology

Fire sprinkler systems, compressor

Special features

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

 63mm

Accuracy

 2.5
Pressure range Customized

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -40 ... +60 °C
Medium: +80 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale

Process connection

 Brass

Pressure element

 Bourdon tube, brass
Movement Copper alloy
Dial Aluminium, white, with pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Window Plastic, glass
Options

Other process connection thread
Surface mounting flange
Mounting bracket


Ordering information
Model / Dial size / Pressure Range / Process connection / Options
