9000 Psi Stainless Steel Pressure Gauge 600 Bar 150mm Red Memory Pointer Manometer KL 1.6
9000 Psi Stainless Steel Pressure Gauge 600 Bar 150mm Red Memory Pointer Manometer KL 1.6
9000 Psi Stainless Steel Pressure Gauge 600 Bar 150mm Red Memory Pointer Manometer KL 1.6
9000 Psi Stainless Steel Pressure Gauge 600 Bar 150mm Red Memory Pointer Manometer KL 1.6
9000 Psi Stainless Steel Pressure Gauge 600 Bar 150mm Red Memory Pointer Manometer KL 1.6
9000 Psi Stainless Steel Pressure Gauge 600 Bar 150mm Red Memory Pointer Manometer KL 1.6
Specifications
Brand Name :
WESEN or Customized
Model Number :
M01.01.150.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
150mm
Mount :
Bottom, Radial, lower
Pressure Range :
600 Bar or Customized
Color :
Metallochrome, yellow
Case Material :
Stainless Steel
Lens :
Instrument glass
Movement :
Copper alloy
Thread :
3/8" or 1/2" PT, NPT, G, BSP
Accuracy :
1.6
Deaign :
EN837-1
Description

150mm Stainless Steel Case Pressure Gauge 600 Bar 9000 psi with Red Memory Pointer Manometer KL 1.6

Description

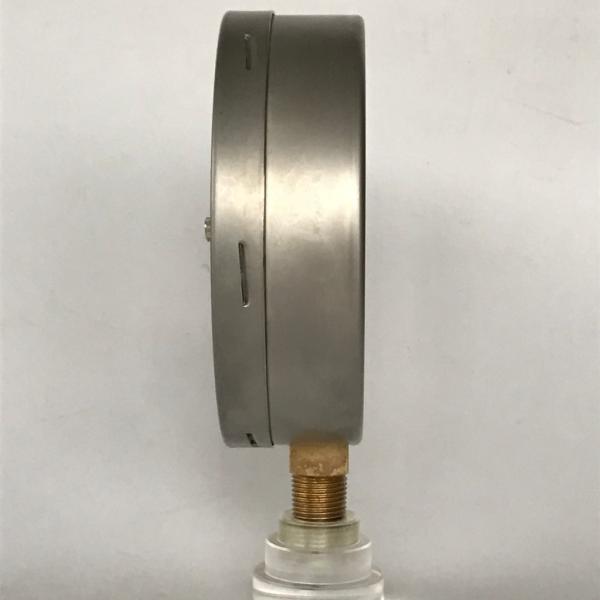

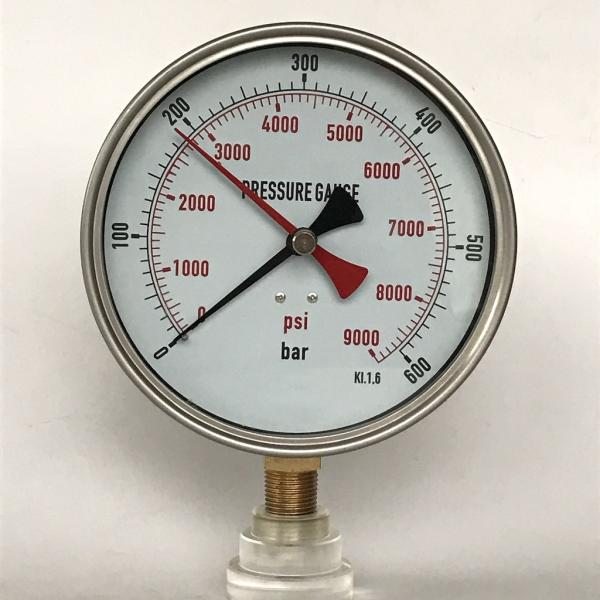

This bourdon tube pressure gauge has a 150mm dial size, with psi and bar dual scale, printed in red and black letter. The big dial size helps to read the pressure number clear. The mount direction is lower. This kind of pressure gauge has solidder case than the utility pressure gauge.

Applications

Suitable for gaseous or liquid media that will not obstruct the pressure system

Machine building and plant construction

Heating and air-conditioning technology

Fire sprinkler systems

Special features

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

 150mm

Accuracy

 1.6
Pressure range 600 bar (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -40 ... +60 °C
Medium: +80 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale

Process connection

 Brass

Pressure element

 Brass, H-type
Movement Brass
Dial Aluminium, white, without pointer stop pin
Black/red lettering
Pointer Aluminium
Case Stainless steel
Window Plastic, glass
Options

Other process connection thread
Surface mounting flange
Mounting bracket


Ordering information
Model / Dial size / Pressure Range / Process connection / Options
