63mm Stainless Steel Pressure Gauge 12 Bar 160 Psi Dual Scale Brass Internals Manometer
63mm Stainless Steel Pressure Gauge 12 Bar 160 Psi Dual Scale Brass Internals Manometer
63mm Stainless Steel Pressure Gauge 12 Bar 160 Psi Dual Scale Brass Internals Manometer
63mm Stainless Steel Pressure Gauge 12 Bar 160 Psi Dual Scale Brass Internals Manometer
63mm Stainless Steel Pressure Gauge 12 Bar 160 Psi Dual Scale Brass Internals Manometer
63mm Stainless Steel Pressure Gauge 12 Bar 160 Psi Dual Scale Brass Internals Manometer
Specifications
Brand Name :
WESEN or Customized
Model Number :
M01.01.063.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
63mm
Mount :
Bottom, Radial
Pressure Range :
12 Bar or Customized
Color :
Metallochrome, yellow
Case Material :
Stainless Steel
Window :
PC or Glass
Movement :
Brass
Dial :
Aluminum
Accuracy :
1.6
Deaign :
EN837-1
Description

63mm Stainless Steel Case Pressure Gauge 12 Bar 160 psi Dual Scale Brass Internals Manometer

Description

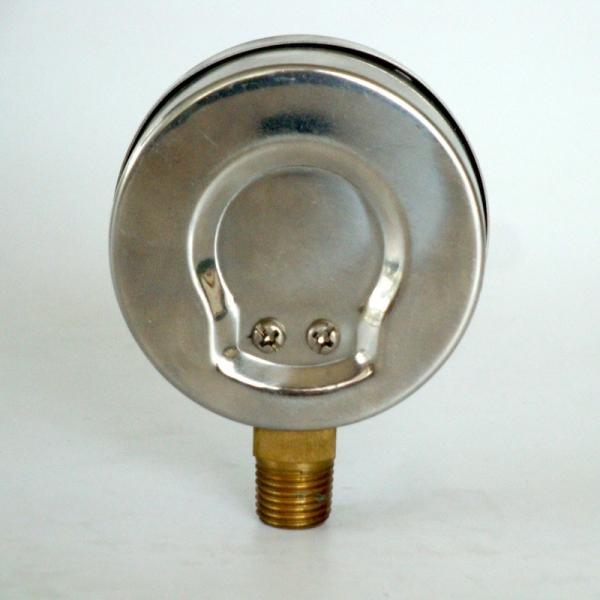

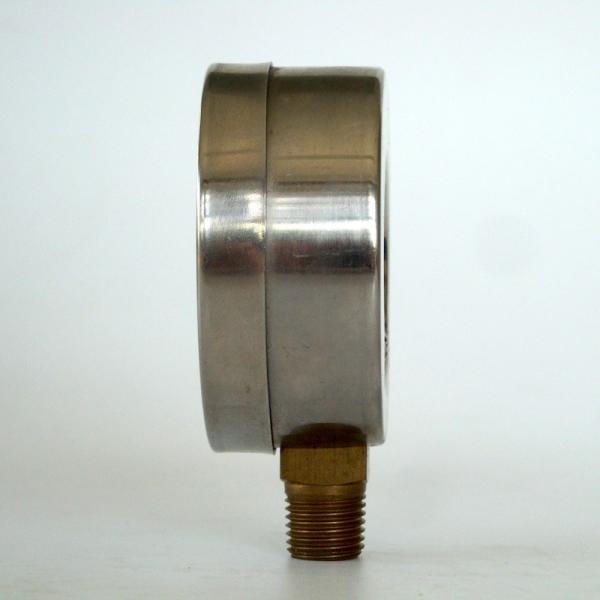

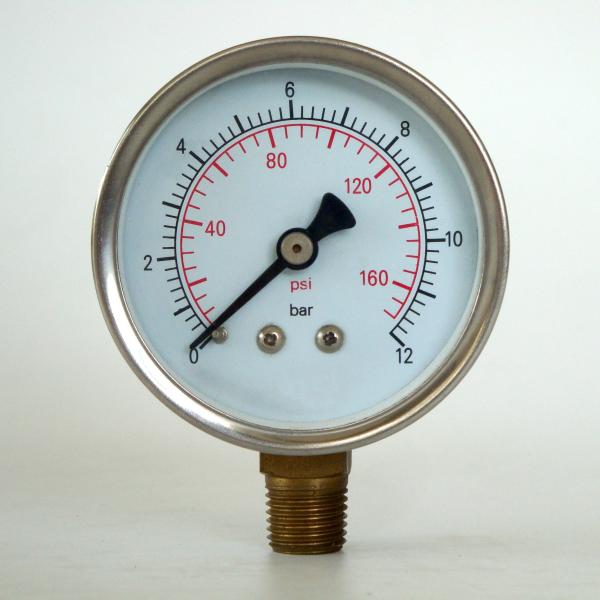

This bourdon tube pressure gauge has a 63mm dial size, with psi and bar dual scale. The case is made of stainless steel and the socket is made of brass. The movement and bourdon tube are brass material too. Red and black scale printed on the white color plate. This kind of pressure gauge has solidder case than the utility pressure gauge.

Applications

Suitable for gaseous or liquid media that will not obstruct the pressure system

Machine building and plant construction

Heating and air-conditioning technology

Fire sprinkler systems

Special features

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

 100mm

Accuracy

 1.0
Pressure range 12 bar (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -40 ... +60 °C
Medium: +80 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of full scale

Process connection

 Brass

Pressure element

 Brass, C-type
Movement Brass
Dial Aluminium, white, without pointer stop pin
Black/red lettering
Pointer Aluminium
Case Stainless steel
Window Plastic, glass
Options

Other process connection thread
Surface mounting flange
Mounting bracket

Dimensions

Model M02.01, lower mount (radial)

63mm Stainless Steel Pressure Gauge 12 Bar 160 Psi Dual Scale Brass Internals Manometer

Ordering information

Model / Dial size / Pressure Range / Process connection / Options
