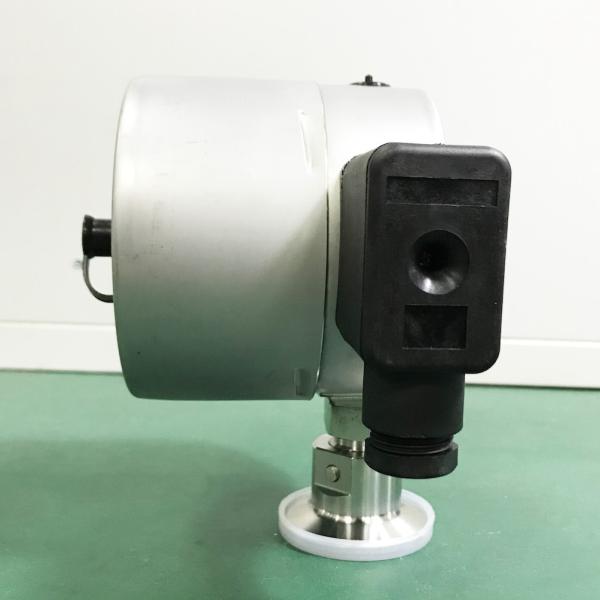

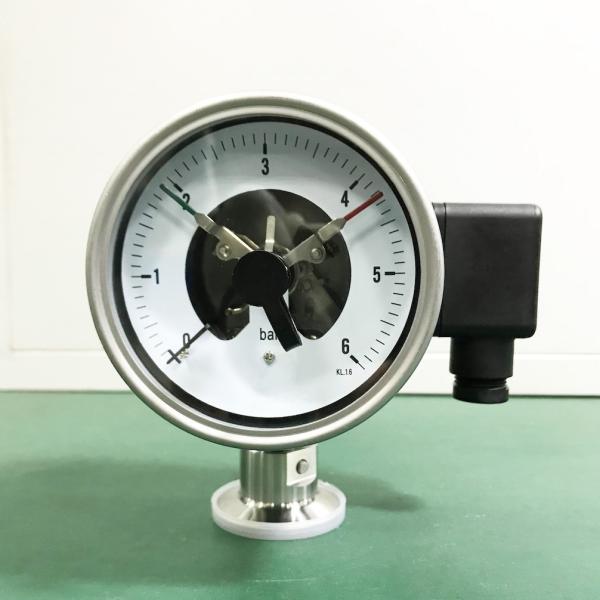

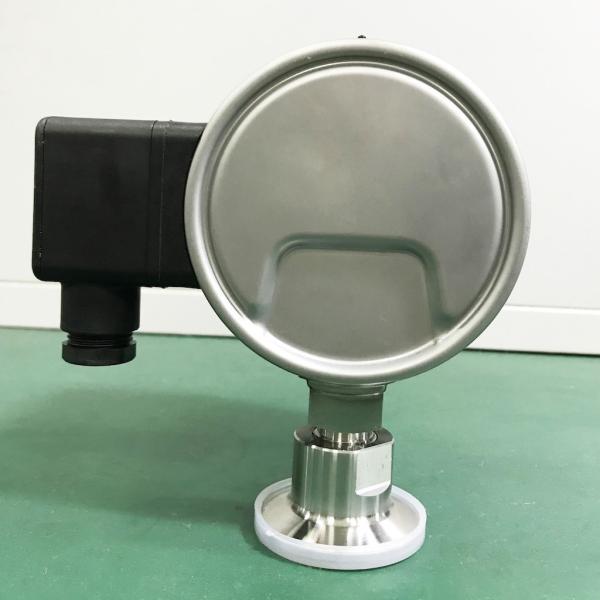

Radial Direction Electric Contact Pressure Gauge 6 Bar 100mm Dial Diaphragm Sealed Gauge
Radial Direction Electric Contact Pressure Gauge 6 Bar 100mm Dial Diaphragm Sealed Gauge
Radial Direction Electric Contact Pressure Gauge 6 Bar 100mm Dial Diaphragm Sealed Gauge
Radial Direction Electric Contact Pressure Gauge 6 Bar 100mm Dial Diaphragm Sealed Gauge
Radial Direction Electric Contact Pressure Gauge 6 Bar 100mm Dial Diaphragm Sealed Gauge
Radial Direction Electric Contact Pressure Gauge 6 Bar 100mm Dial Diaphragm Sealed Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M11.01.100.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Dial Size :
100mm
Mount :
Radial direction
Pressure Range :
6 bar Customized
Case Material :
SUS 304
Lens Material :
Tempered glass
Pressure Element :
SUS 316
Movement :
SUS 304
Dial :
Aluminum, white
Color :
Metallic
Deaign :
EN837-1
Description

100mm Dial 6 bar Electric Contact Diaphragm Seal Pressure Gauge

Description

Pressure gauges with a diameter between 40 and 80 mm, without an internal baffle wall, are of the S2 type and have a blow-out back. The blow-out back is usually the entire back of the pressure gauge and is blown away when the enclosure is being pressurized. The pressure in the enclosure is allowed to rise to a maximum of half of the pressure that is needed to break the window.

Applications

Hygienic pressure measurement in sanitary applications for the pharmaceutical, biotechnology, food and beverage industries

Mechanical pressure display on pipelines, fermenters, bioreactors and vessels

Pressure/vacuum monitoring during cleaning, sterilisation, pressure testing

For gases, compressed air, vapour; liquid, pasty, powdery and crystallising media

​​

Special features

Safety via mechanical pressure transmission

Case and wetted parts in hygienic design

Suitable for SIP and CIP, autoclavable version available

Easy zero point setting

High overload safety

Specifications

Design

EN 837-1

Nominal size

 100mm

Accuracy

 1.6
Pressure range (bar)

0...1.6, 0...2.5, 0...4, 0...6, 0...10, 0...16,

-1...+0.6, -1...+1.5, -1...+3, -1...+5, -1...+9, -1...+15

Pressure limitation

Steady:

Full scale value

Fluctuating:

Scale range <4 bar: Full scale value

Scale range ≥4 bar: 2/3 x full scale value
Overload safety

2x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection

5x full scale value, max. 40 bar or max. pressure rating (PN) of the process connection
Vacuum resistance

Without

Vacuum resistance to -1 bar

Depending on the scale range, vacuum resistance is provided or available on request
Permissible temperature

Ambient: -20 ... +60 °C

Mediium: -20 ... +150 °C

CIP and SIP: 150 °C continuously for wetted parts

Autoclavable version, max. 134 °C, ≤ 20 minutes

Ingress protection

 IP54

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.5 %/10 K of full scale value

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

Diaphragm element, welded to the process connection
Movement SUS 304
Dial Aluminium, white, with pointer stop pin
Pointer Aluminium
Case Stainless steel
Ring Stainless steel
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa
Options Other process connection thread
Surface mounting flange
Mounting bracket

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

Radial Direction Electric Contact Pressure Gauge 6 Bar 100mm Dial Diaphragm Sealed Gauge
