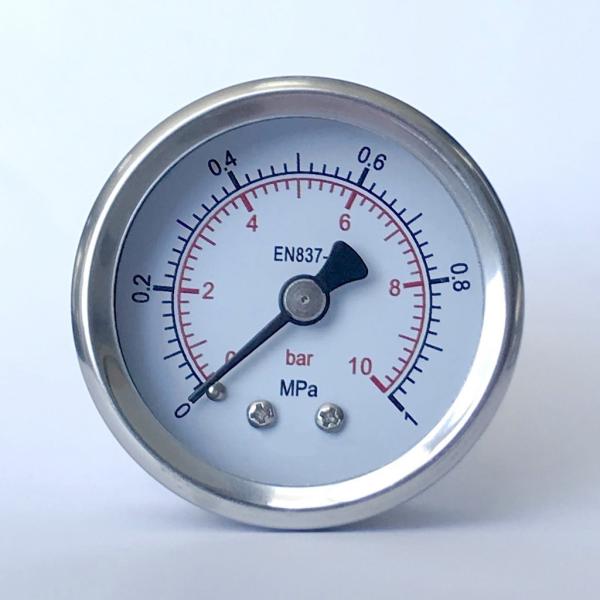

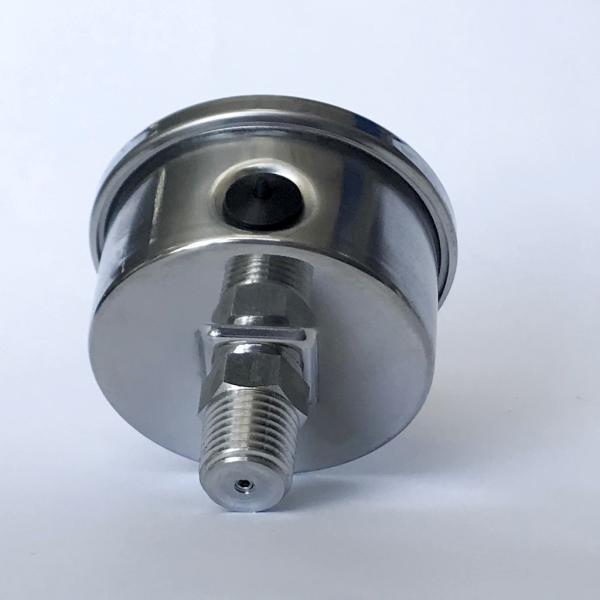

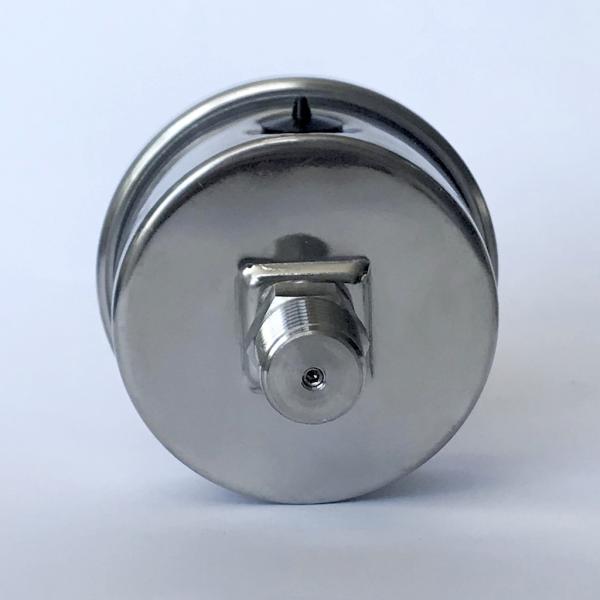

2 Inches 1 Mpa Liquid Filled Fuel Pressure Gauge En 837-1 NPT Axial Mount
2 Inches 1 Mpa Liquid Filled Fuel Pressure Gauge En 837-1 NPT Axial Mount
2 Inches 1 Mpa Liquid Filled Fuel Pressure Gauge En 837-1 NPT Axial Mount
2 Inches 1 Mpa Liquid Filled Fuel Pressure Gauge En 837-1 NPT Axial Mount
2 Inches 1 Mpa Liquid Filled Fuel Pressure Gauge En 837-1 NPT Axial Mount
2 Inches 1 Mpa Liquid Filled Fuel Pressure Gauge En 837-1 NPT Axial Mount
2 Inches 1 Mpa Liquid Filled Fuel Pressure Gauge En 837-1 NPT Axial Mount
2 Inches 1 Mpa Liquid Filled Fuel Pressure Gauge En 837-1 NPT Axial Mount
Specifications
Brand Name :
WESEN or Customized
Model Number :
M03.02.050.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
50mm
Mount :
Axial
Pressure Range :
1 MPa or Customized
Case Material :
316 SS, 304 SS
Lens Material :
Instrument glass
Bourton Tube :
SS 316
Movement :
SS 304
Socket :
SS 316
Accuracy :
2.5
Liquid :
Silicone oil, glycerin
Description

2 Inches 1 Mpa SS 304 Manometer 1/4" NPT Axial Mount Liquid Filled Pressure Gauge

Description
If you have a dry gauge… no need to worry about venting.
Venting is only for liquid-filled gauges and is often recommended directly after installation.
Stressful environments, where vibration and shock are present, may often require liquid-filled gauges. The liquid medium reduces that vibration being transferred to the instruments internals and is commonly referred to as pulsation dampening.
This dampening protects the internal parts of the gauge and also helps steady the needle.

Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
​​
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

50mm

Accuracy

Acc.2.5
Pressure range1 MPa (customized)

Pressure limitation

40mm, 50mm, 63mm:
Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value
100mm:
Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Mediium: +60 °C maximum

Ingress protection

IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Stainless steel

Pressure element

Stainless steel, C-type or helical type
MovementStainless steel
DialAluminium, colorful, with pointer stop pin
Black lettering
PointerAluminium
CaseStainless steel
RingStainless steel
WindowPlastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa

Thread1/4 G, BSP, PT, BSPT, NPT
OptionsOther process connection thread
Surface mounting flange
Mounting bracket


Dimensions
2 Inches 1 Mpa Liquid Filled Fuel Pressure Gauge En 837-1 NPT Axial Mount

SizeDimensions in mmWeight in kg
abb2D1D2efGhSW
5012305555505.5-1/4"48140.15
6313325668626.5-1/4"54140.21
10015.54881.51071008301/2"87220.80


Ordering information
Model / Dial size / Pressure Range / Process connection / Options

2 Inches 1 Mpa Liquid Filled Fuel Pressure Gauge En 837-1 NPT Axial Mount
