Aluminum 100 Kpa Pressure Gauge Axial Mount PC Glass Pressure Gauge
Aluminum 100 Kpa Pressure Gauge Axial Mount PC Glass Pressure Gauge
Aluminum 100 Kpa Pressure Gauge Axial Mount PC Glass Pressure Gauge
Aluminum 100 Kpa Pressure Gauge Axial Mount PC Glass Pressure Gauge
Aluminum 100 Kpa Pressure Gauge Axial Mount PC Glass Pressure Gauge
Aluminum 100 Kpa Pressure Gauge Axial Mount PC Glass Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M07.02.040.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
40mm
Mount :
Axial
Pressure Range :
-100 kPa, vacuum
Case Material :
Painted Steel
Lens Material :
PC or Glass
Bourton Tube :
Phosphor Bronze
Movement :
Copper alloy
Dial :
Aluminum, dual scale
Color :
Black
Deaign :
EN837-1
Description

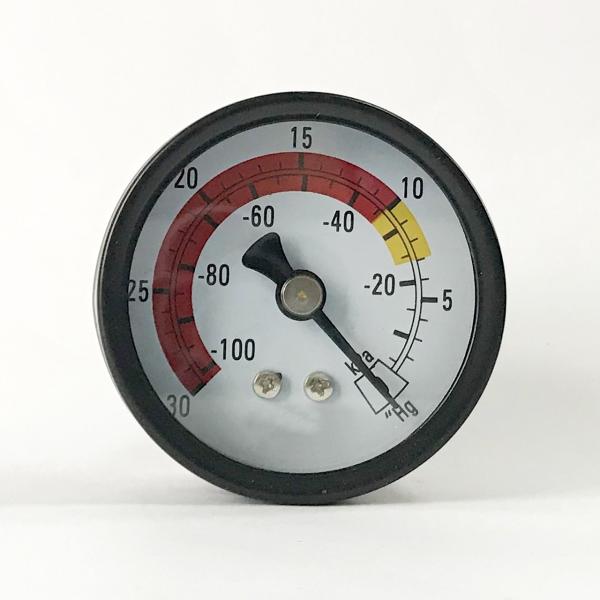

40mm -100 kPa -5" Hg Axial Mounting Black Steel Case Brass Internals Vacuum Pressure Gauge

Description

Pressure gauge M07 has a connection point located below the gauge and measures pressure in the range of -1 to 0 bar (-15..0 psi) (for vacuum). The scale division is 0 - 0.05 and measurement accuracy class 2.5 (± 2.5 %). The plastic gauge housing has a diameter of 40 mm. The measurement system, indicator and G 1/8" connection are made of brass.

Applications

Practically all industries make use of vacuum, from pick and place in the automotive industry, food & beverage, manufacturing, pharmaceutical, chemical, nautical, etc. The vacuum gauges are important devices to ensure optimal performance and safety of the system. They may be used for pick-and-place applications, keeping the workplace clean from pollutants, transport materials, etc.

Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Specifications

Design

EN 837-1

Nominal size

 40mm

Accuracy

 2.5, 1.6
Pressure range -100 kPa -5" Hg vacuum (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass

Pressure element

 Brass, C-type or helical type
Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Black steel, painted steel
Window Plastic, glass
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

lower mount (radial)

Aluminum 100 Kpa Pressure Gauge Axial Mount PC Glass Pressure Gauge

Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85

back mount (axial)

Aluminum 100 Kpa Pressure Gauge Axial Mount PC Glass Pressure Gauge

Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

Aluminum 100 Kpa Pressure Gauge Axial Mount PC Glass Pressure Gauge
