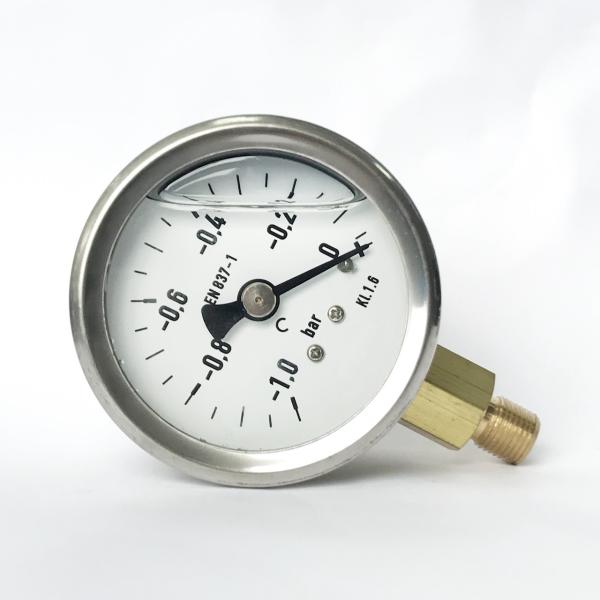

50mm -1 bar Radial Mounting Stainless Steel Case Oil filled Vacuum Pressure Gauge

Description

The M07 Series pressure gauges are available with a vertical or horizontal type connection. The pressure element is a bourdon tube. The gauge diameter is 40, 50 or 63 mm, the accuracy class 1.6 for steel housing and 2.5 for plastic housing. The measurement range for the gauges of these series is from -1 to 400 bar. Scale division ranges from 0.02 to 50 bar. The gauges are made of plastic or steel, the windows material is made of polycarbonat, the connection has a thread size of G 1/8" or G 1/4" and is made of brass. Make sure that your medium is compatible with brass. The gauges can operate at temperature -20°C to + 60°C.

Applications

Practically all industries make use of vacuum, from pick and place in the automotive industry, food & beverage, manufacturing, pharmaceutical, chemical, nautical, etc. The vacuum gauges are important devices to ensure optimal performance and safety of the system. They may be used for pick-and-place applications, keeping the workplace clean from pollutants, transport materials, etc.

Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Specifications

Design

EN 837-1

Nominal size

 50mm

Accuracy

 2.5, 1.6
Pressure range -1 bar vacuum (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass

Pressure element

 Brass, C-type or helical type
Movement Brass
Dial Aluminium, white, with pointer stop pin
Black/red lettering
Pointer Aluminium
Case Stainless steel
Window Plastic, glass
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

lower mount (radial)

50mm -1 bar Radial Mounting Stainless Steel Case Oil filled Vacuum Pressure Gauge

Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85

back mount (axial)

50mm -1 bar Radial Mounting Stainless Steel Case Oil filled Vacuum Pressure Gauge

Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

50mm -1 bar Radial Mounting Stainless Steel Case Oil filled Vacuum Pressure Gauge
