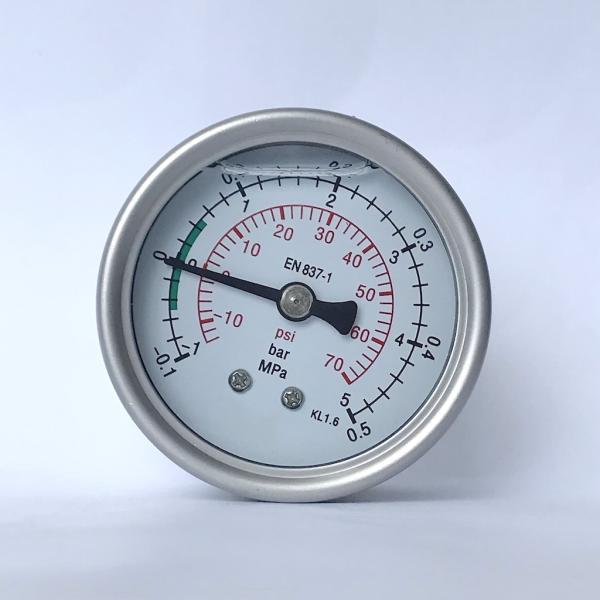

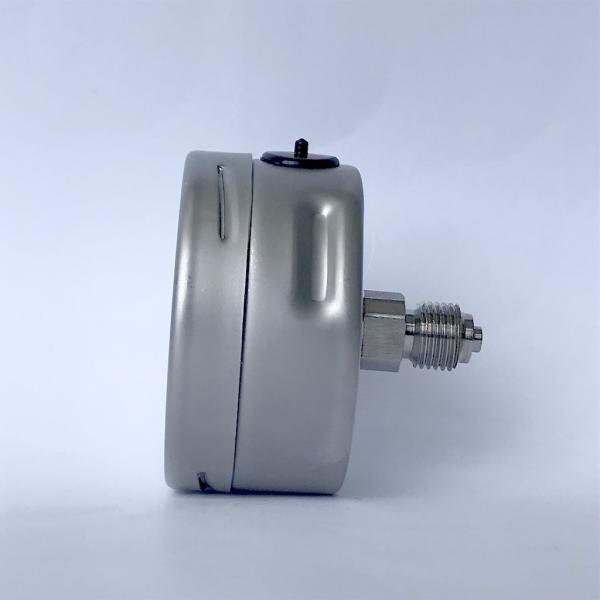

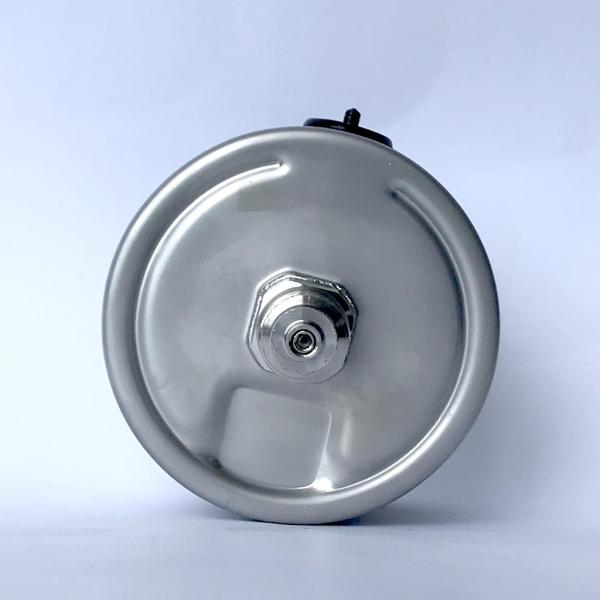

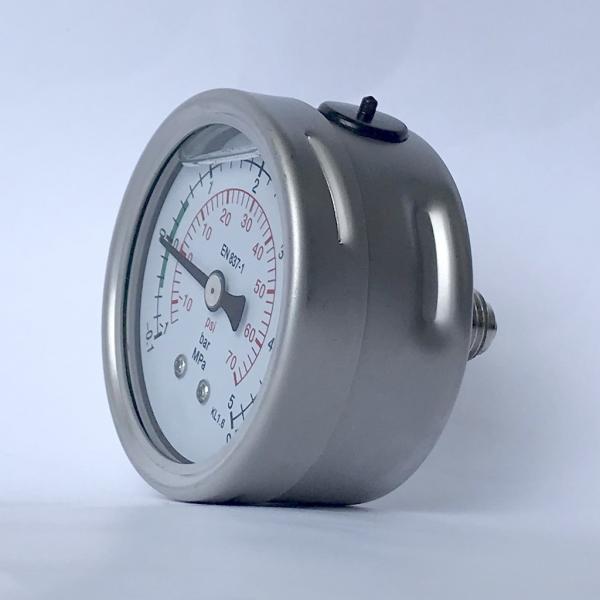

0.1 MPa Center Back Mount Pressure Gauge SS 304 63mm Bayonet Ring Pressure Gauge
0.1 MPa Center Back Mount Pressure Gauge SS 304 63mm Bayonet Ring Pressure Gauge
0.1 MPa Center Back Mount Pressure Gauge SS 304 63mm Bayonet Ring Pressure Gauge
0.1 MPa Center Back Mount Pressure Gauge SS 304 63mm Bayonet Ring Pressure Gauge
0.1 MPa Center Back Mount Pressure Gauge SS 304 63mm Bayonet Ring Pressure Gauge
0.1 MPa Center Back Mount Pressure Gauge SS 304 63mm Bayonet Ring Pressure Gauge
0.1 MPa Center Back Mount Pressure Gauge SS 304 63mm Bayonet Ring Pressure Gauge
0.1 MPa Center Back Mount Pressure Gauge SS 304 63mm Bayonet Ring Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M07.02.063.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
63mm
Mount :
Axial mounting
Pressure Range :
-0.1 MPa, vacuum
Case Material :
SS 304
Lens Material :
Instrument Glass
Bourton Tube :
SS 316L
Movement :
SS 304
Dial :
Aluminum
Color :
Matte Metallic Silver
Thread :
1/4" PT, NPT, G, M14*1.5...
Description

63mm -0.1 MPa Center Back Mounting Bayonet Ring SS Vacuum Pressure Gauge

Description

Steam and other hot media may raise the temperature of the gauge components above safe working limits of the sealed joints. In these cases it is recommended that a siphon, cooling tower or diaphragm seal be used in conjunction with the pressure gauge.

Applications

Practically all industries make use of vacuum, from pick and place in the automotive industry, food & beverage, manufacturing, pharmaceutical, chemical, nautical, etc. The vacuum gauges are important devices to ensure optimal performance and safety of the system. They may be used for pick-and-place applications, keeping the workplace clean from pollutants, transport materials, etc.

Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Specifications

Design

EN 837-1

Nominal size

 63mm

Accuracy

 2.5, 1.6
Pressure range -0.1 MPa vacuum (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 SS 316

Pressure element

 SS 316, C-type or helical type
Movement SS 304
Dial Aluminium, white, without pointer stop pin
Black/red lettering
Pointer Aluminium
Case Stainless steel
Window Plastic, glass
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

lower mount (radial)

0.1 MPa Center Back Mount Pressure Gauge SS 304 63mm Bayonet Ring Pressure Gauge

Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85

back mount (axial)

0.1 MPa Center Back Mount Pressure Gauge SS 304 63mm Bayonet Ring Pressure Gauge

Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

0.1 MPa Center Back Mount Pressure Gauge SS 304 63mm Bayonet Ring Pressure Gauge
