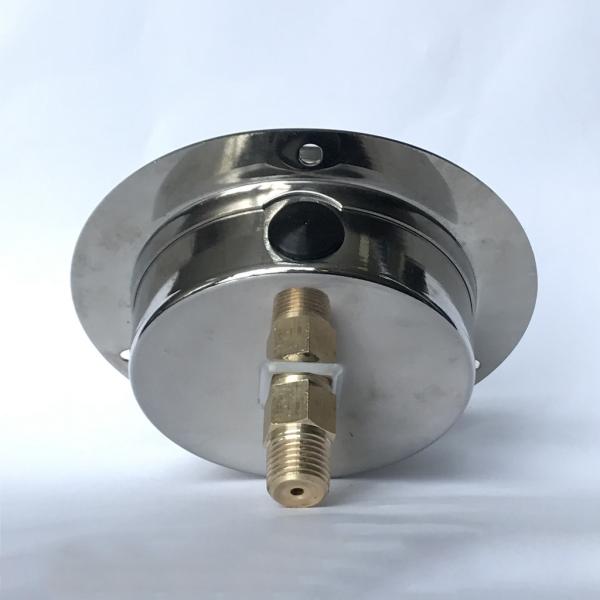

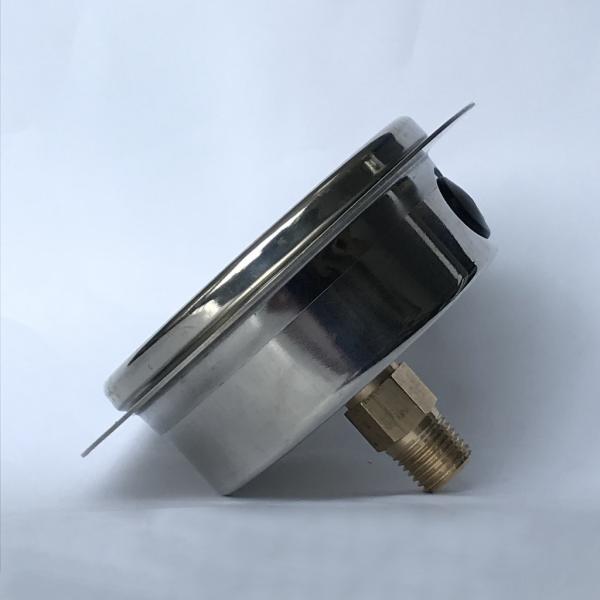

SS Case Vacuum Pressure Gauge 75mm 0.1 MPa Flange Panel Mount Pressure Gauge
SS Case Vacuum Pressure Gauge 75mm 0.1 MPa Flange Panel Mount Pressure Gauge
SS Case Vacuum Pressure Gauge 75mm 0.1 MPa Flange Panel Mount Pressure Gauge
SS Case Vacuum Pressure Gauge 75mm 0.1 MPa Flange Panel Mount Pressure Gauge
SS Case Vacuum Pressure Gauge 75mm 0.1 MPa Flange Panel Mount Pressure Gauge
SS Case Vacuum Pressure Gauge 75mm 0.1 MPa Flange Panel Mount Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M07.02.075.F
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
75mm
Mount :
Panel mounting
Pressure Range :
-0.1 MPa, vacuum
Case Material :
SS 304
Lens Material :
Glass
Bourton Tube :
Brass
Movement :
Brass
Dial :
Aluminum
Color :
Silver
Thread :
1/4" 3/8" PT, NPT, G, M14*1.5...
Description

75mm -0.1 MPa Flange Panel Mounting SS Case Brass Connection Vacuum Pressure Gauge

Description

The normal ambient temperature range for WESEN pressure gauges is -40oF to +140oF (-40oC to +60oC) for dry or silicone-filled gauges and -4oF to +140oF (-20oC to +60oC) for glycerine-filled gauges. The error caused by temperature changes is +0.3% or -0.3% per 18oF rise or fall, respectively. The reference temperature is 70oF (20oC). The correction is for the temperature of the gauge, not the temperature of the measured medium. Remote gauge mounting using a diaphragm seal and capillary line is one alternative for applications involving extreme ambient temperature.

Moisture and weather effects must also be considered. Liquid-filled gauges prevent condensation build up.

For outdoor use, stainless steel, brass or plastic cased gauges are recommended.

Applications

Practically all industries make use of vacuum, from pick and place in the automotive industry, food & beverage, manufacturing, pharmaceutical, chemical, nautical, etc. The vacuum gauges are important devices to ensure optimal performance and safety of the system. They may be used for pick-and-place applications, keeping the workplace clean from pollutants, transport materials, etc.

Special features

Reliable and cost-effective

Design per EN 837-1

Nominal size 40, 50, 63, 80, 100 and 160

Specifications

Design

EN 837-1

Nominal size

 75mm

Accuracy

 2.5, 1.6
Pressure range -0.1 MPa vacuum (customized)

Pressure limitation

Steady: 3/4 x full scale value
Fluctuating: 2/3 x full scale value
Fluctuating: 2/3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Medium: +60 °C maximum

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass

Pressure element

 Brass, C-type
Movement Brass
Dial Aluminium, white, without pointer stop pin
Black/red lettering
Pointer Aluminium
Case Stainless steel
Window Plastic, glass
Options

Other process connection
Surface mounting flange
Mounting bracket

Dimensions

lower mount (radial)

SS Case Vacuum Pressure Gauge 75mm 0.1 MPa Flange Panel Mount Pressure Gauge

Dial Size Dimensions in mm Weight in kg
a b D G h SW
40 9.5 26 39 G1/4 36 14 0.08
50 10 27.5 49 G1/4 45 14 0.10
63 9.5 27.5 62 G1/4 53.5 14 0.13
80 11.5 30 79 G1/2 72 22 0.18
100 11.5 30.5 99 G1/2 83.5 22 0.21
160 15.5 42 160 G1/2 115.5 22 0.85

back mount (axial)

SS Case Vacuum Pressure Gauge 75mm 0.1 MPa Flange Panel Mount Pressure Gauge

Dial Size Dimensions in mm Weight in kg
b1 b2 D G SW
40 26 42 39 G1/8 14 0.06
50 29.5 47.5 49 G1/4 14 0.07
63 29 47 62 G1/4 14 0.08
80 32 49 79 G1/4 14 0.11
100 31 49 99 G1/4 14 0.26

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

SS Case Vacuum Pressure Gauge 75mm 0.1 MPa Flange Panel Mount Pressure Gauge

Product tags

panel mount air pressure gauge

,

front flange pressure gauge

,

back mount pressure gauge
