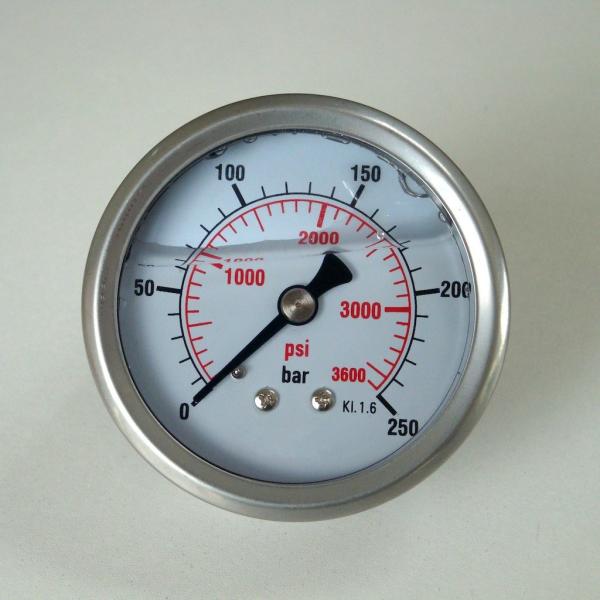

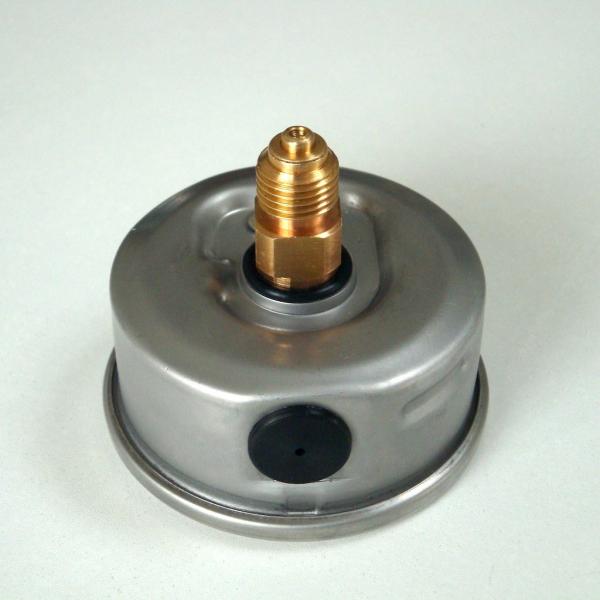

63mm 3600 psi Hydraulic Manometer Back Entry Brass Connection Stainless Steel Glycerinum Filled Pressure Gauge
63mm 3600 psi Hydraulic Manometer Back Entry Brass Connection Stainless Steel Glycerinum Filled Pressure Gauge
63mm 3600 psi Hydraulic Manometer Back Entry Brass Connection Stainless Steel Glycerinum Filled Pressure Gauge
63mm 3600 psi Hydraulic Manometer Back Entry Brass Connection Stainless Steel Glycerinum Filled Pressure Gauge
63mm 3600 psi Hydraulic Manometer Back Entry Brass Connection Stainless Steel Glycerinum Filled Pressure Gauge
63mm 3600 psi Hydraulic Manometer Back Entry Brass Connection Stainless Steel Glycerinum Filled Pressure Gauge
63mm 3600 psi Hydraulic Manometer Back Entry Brass Connection Stainless Steel Glycerinum Filled Pressure Gauge
63mm 3600 psi Hydraulic Manometer Back Entry Brass Connection Stainless Steel Glycerinum Filled Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M03.02.063.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
63mm
Mount :
Back
Pressure Range :
250 bar or Customized
Case Material :
Stainless Steel 304
Lens Material :
Tempered glass, safety glass
Bourton Tube :
SS 316
Movement :
SS 304
Dial :
Aluminum, dual scale
Accuracy :
1.6
Liquid :
Glycerol
Description

63mm 3600 psi Hydraulic Manometer Back Entry Brass Connection Stainless Steel Glycerinum Filled Pressure Gauge

Description

Wesen liquid-filled gauge with a stainless steel case. The glycerine case fill dampens and lubricates the gauge internals, extending the life of the gauge. The pressure gauge is ideal for applications with high dynamic pressure pulsations and vibrations.

Applications

For measuring locations with high dynamic pressure loads and vibrations

For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts

Hydraulics

Compressors, shipbuilding

​​

Special features

Vibration and shock-resistant

Especially robust design

Completely from stainless steel

Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

 63mm

Accuracy

 1.6, 1.0
Pressure range 250 bar (customized)

Pressure limitation

40mm, 50mm, 63mm:

Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value

100mm:

Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value
Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +60 °C maximum

Ingress protection

 IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Stainless steel, SUS 304, SUS 316

Pressure element

 SS, helical type bourdon tube
Movement SS
Dial Aluminium, colorful, without pointer stop pin
Black lettering
Pointer Aluminium
Case SS
Ring SS
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket

Dimensions

63mm 3600 psi Hydraulic Manometer Back Entry Brass Connection Stainless Steel Glycerinum Filled Pressure Gauge

Size Dimensions in mm Weight in kg
a b b2 D1 D2 e f G h SW
50 12 30 55 55 50 5.5 - 1/4" 48 14 0.15
63 13 32 56 68 62 6.5 - 1/4" 54 14 0.21
100 15.5 48 81.5 107 100 8 30 1/2" 87 22 0.80

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

63mm 3600 psi Hydraulic Manometer Back Entry Brass Connection Stainless Steel Glycerinum Filled Pressure Gauge
