Specifications
Brand Name :
WESEN or Customized
Model Number :
M03.01.063.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
63mm
Mount :
Radial
Pressure Range :
7 kg/cm2 or Customized
Case Material :
304 S.S
Lens Material :
PC glass
Bourton Tube :
Copper alloy
Movement :
Brass
Accuracy :
1.6
Liquid :
Silicone Oil, glycerol
Thread :
1/4PT, NPT, G, M14*1.5...
Description

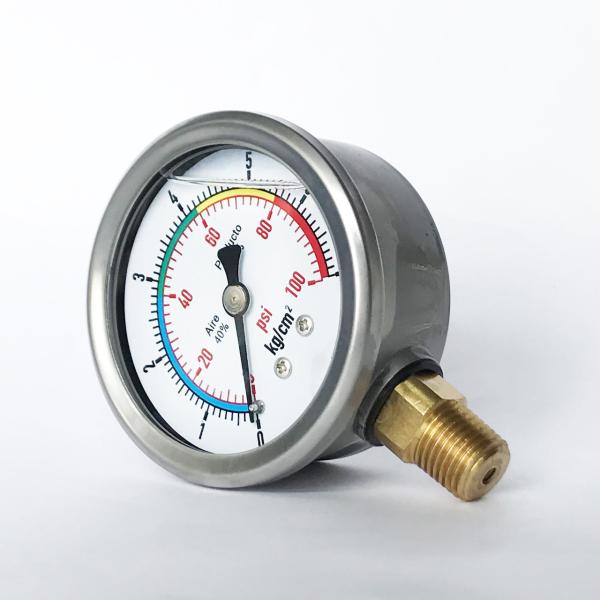

63mm 100 psi 7 kg/cm2 Chemical Manometer Brass Connection Silicone Oil Liquid Filled Pressure Gauge

Description

Wesen pressure gauges are designed for use with compressed gases, such as those used in the welding industry. The low copper content of the Bourdon tube for pressure ranges 800 psi and below makes it safe for use with acetylene. All type M03 gauges are cleaned to ASME B40.100 Level IV. “USE NO OIL” is printed in red on the face of each dial, making them safe for use with oxygen.

Applications

For measuring locations with high dynamic pressure loads and vibrations

For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts

Hydraulics

Compressors, shipbuilding

​​

Special features

Vibration and shock-resistant

Especially robust design

Completely from stainless steel

Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

63mm

Accuracy

1.6
Pressure range 7 kg/cm2 (customized)

Pressure limitation

40mm, 50mm, 63mm:

Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value

100mm:

Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +60 °C maximum

Ingress protection

IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Brass

Pressure element

Brass, C type bourdon tube
Movement Brass
Dial Aluminium, colorful, with pointer stop pin
Black and red lettering
Pointer Aluminium
Case 304 SS
Ring Rolling type
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa

Thread G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket

Dimensions

63mm 100 psi 7 kg/cm2 Chemical Manometer Brass Connection Silicone Oil Liquid Filled Pressure Gauge

Size Dimensions in mm Weight in kg
a b b2 D1 D2 e f G h SW
50 12 30 55 55 50 5.5 - 1/4" 48 14 0.15
63 13 32 56 68 62 6.5 - 1/4" 54 14 0.21
100 15.5 48 81.5 107 100 8 30 1/2" 87 22 0.80

Ordering information

Model / Dial size / Pressure Range / Process connection / Options
