100mm 1500 psi 7 MPa Vibration-proof Lower Back Mounting Manometer Silicone Oil Liquid Filled Pressure Gauge
100mm 1500 psi 7 MPa Vibration-proof Lower Back Mounting Manometer Silicone Oil Liquid Filled Pressure Gauge
100mm 1500 psi 7 MPa Vibration-proof Lower Back Mounting Manometer Silicone Oil Liquid Filled Pressure Gauge
100mm 1500 psi 7 MPa Vibration-proof Lower Back Mounting Manometer Silicone Oil Liquid Filled Pressure Gauge
100mm 1500 psi 7 MPa Vibration-proof Lower Back Mounting Manometer Silicone Oil Liquid Filled Pressure Gauge
100mm 1500 psi 7 MPa Vibration-proof Lower Back Mounting Manometer Silicone Oil Liquid Filled Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M03.02.100.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
100mm
Mount :
Lower back
Pressure Range :
1500 PSI or Customized
Case Material :
304 SUS
Lens Material :
PC glass
Bourton Tube :
Brass
Movement :
Brass
Accuracy :
1.6
Liquid :
Silicone Oil, glycerol
Thread :
1/4PT, NPT, G, M14*1.5...
Description

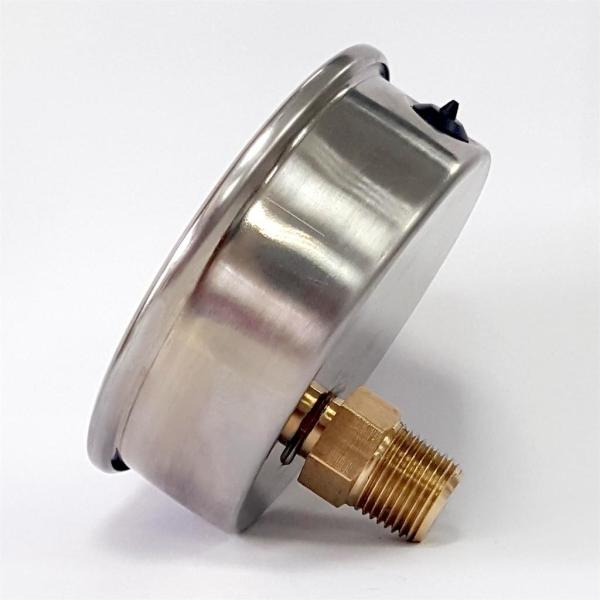

100mm 1500 psi 7 MPa Vibration-proof Lower Back Mounting Manometer Silicone Oil Liquid Filled Pressure Gauge

Description
Type M03.02.100.N gauges feature 316 SS wetted parts, a 304 SS case, and a snap-in, acrylic window. When installation space is limited and stainless steel wetted parts are needed, Wesen type M03.02.100.N is the best choice. The stainless steel construction also makes these gauges ideal for harsh environments.

Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
​​
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

100mm

Accuracy

1.6
Pressure range1500 psi (customized)

Pressure limitation

40mm, 50mm, 63mm:
Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value
100mm:
Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Mediium: +60 °C maximum

Ingress protection

IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Brass

Pressure element

Brass, C-type bourdon tube
MovementBrass
DialAluminium, white, with pointer stop pin
Black and red lettering dual scale
PointerAluminium
Case304 SS
RingRolling type
WindowPlastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa

ThreadG, BSP, PT, BSPT, NPT
OptionsOther process connection thread
Surface mounting flange
Mounting bracket


Dimensions
100mm 1500 psi 7 MPa Vibration-proof Lower Back Mounting Manometer Silicone Oil Liquid Filled Pressure Gauge

SizeDimensions in mmWeight in kg
abb2D1D2efGhSW
5012305555505.5-1/4"48140.15
6313325668626.5-1/4"54140.21
10015.54881.51071008301/2"87220.80


Ordering information
Model / Dial size / Pressure Range / Process connection / Options
