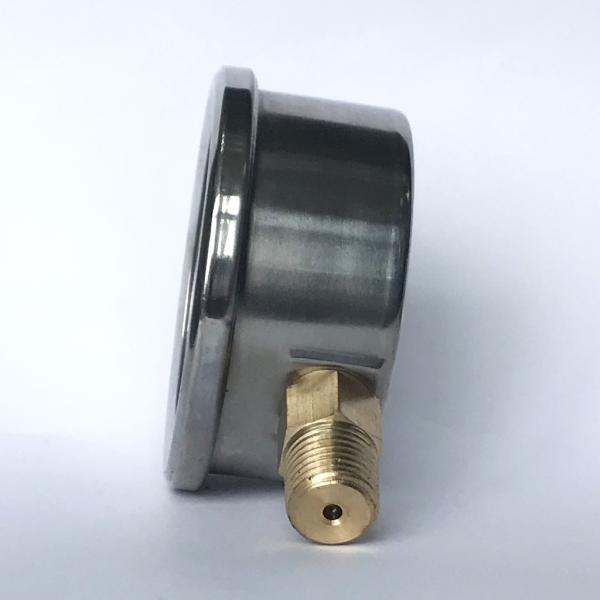

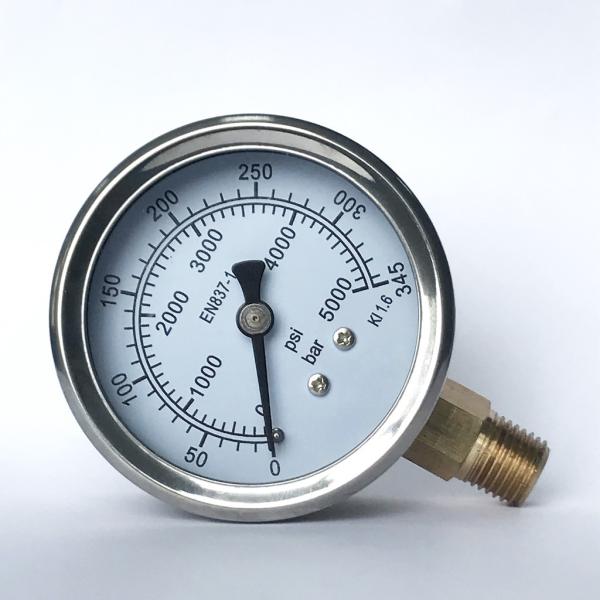

Brass Radial 2.5 Inches 5000 Psi Pressure Gauge 63mm Liquid Filled Oil Pressure Gauge
Brass Radial 2.5 Inches 5000 Psi Pressure Gauge 63mm Liquid Filled Oil Pressure Gauge
Brass Radial 2.5 Inches 5000 Psi Pressure Gauge 63mm Liquid Filled Oil Pressure Gauge
Brass Radial 2.5 Inches 5000 Psi Pressure Gauge 63mm Liquid Filled Oil Pressure Gauge
Brass Radial 2.5 Inches 5000 Psi Pressure Gauge 63mm Liquid Filled Oil Pressure Gauge
Brass Radial 2.5 Inches 5000 Psi Pressure Gauge 63mm Liquid Filled Oil Pressure Gauge
Brass Radial 2.5 Inches 5000 Psi Pressure Gauge 63mm Liquid Filled Oil Pressure Gauge
Brass Radial 2.5 Inches 5000 Psi Pressure Gauge 63mm Liquid Filled Oil Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M03.02.63.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
63mm
Mount :
Radial
Pressure Range :
5000 psi or Customized
Case Material :
316 SS, 304 SS
Lens Material :
Instrument glass
Bourton Tube :
Phosphor bronze
Movement :
Brass
Dial :
Aluminum, dual scale
Accuracy :
1.6
Liquid :
Silicone oil, glycerin
Description

2.5 Inches 5000 psi Oil Manometer 1/4" NPT Brass Radial Mount Liquid Filled Pressure Gauge

Description

Liquid-filled gauges are more durable than dry gauges. Because the internal fluid dampens system pulsation, the gauge can better stand up to shock and vibration during transport and in your system. This also means they have greater moisture resistance, reducing the potential for condensation and icing.

Applications

For measuring locations with high dynamic pressure loads and vibrations

For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts

Hydraulics

Compressors, shipbuilding

​​

Special features

Vibration and shock-resistant

Especially robust design

Completely from stainless steel

Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

 63mm

Accuracy

 Acc.1.6
Pressure range 5000 psi (customized)

Pressure limitation

40mm, 50mm, 63mm:

Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value

100mm:

Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value
Permissible temperature

Ambient: -20 ... +60 °C

Mediium: +60 °C maximum

Ingress protection

 IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

 Brass

Pressure element

 Brass, C-type or helical type
Movement Brass
Dial Aluminium, colorful, without pointer stop pin
Black lettering
Pointer Aluminium
Case Stainless steel
Ring Stainless steel
Window Plastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa
Thread 1/4 G, BSP, PT, BSPT, NPT
Options Other process connection thread
Surface mounting flange
Mounting bracket

Dimensions

Brass Radial 2.5 Inches 5000 Psi Pressure Gauge 63mm Liquid Filled Oil Pressure Gauge

Size Dimensions in mm Weight in kg
a b b2 D1 D2 e f G h SW
50 12 30 55 55 50 5.5 - 1/4" 48 14 0.15
63 13 32 56 68 62 6.5 - 1/4" 54 14 0.21
100 15.5 48 81.5 107 100 8 30 1/2" 87 22 0.80

Ordering information

Model / Dial size / Pressure Range / Process connection / Options

Brass Radial 2.5 Inches 5000 Psi Pressure Gauge 63mm Liquid Filled Oil Pressure Gauge
