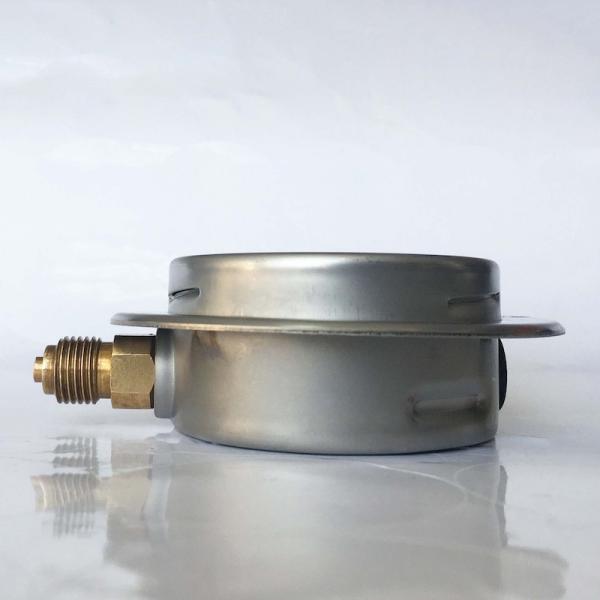

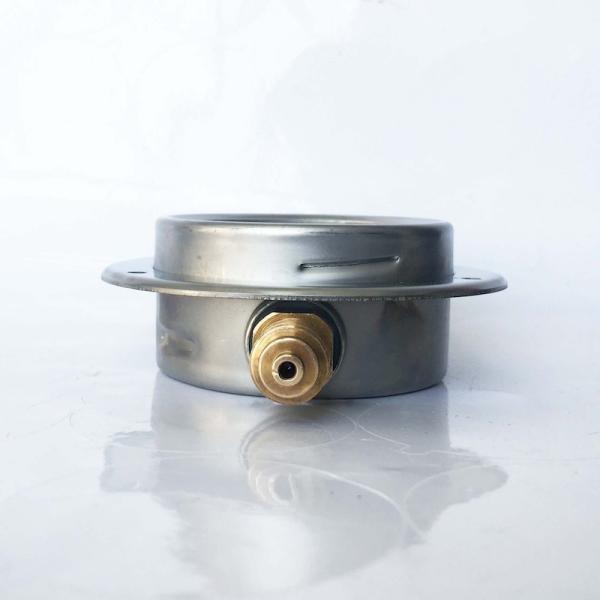

2300 Psi 2.5 Inch Pressure Gauge 160 Bar Flange Fuel Pressure Gauge Liquid Filled
2300 Psi 2.5 Inch Pressure Gauge 160 Bar Flange Fuel Pressure Gauge Liquid Filled
2300 Psi 2.5 Inch Pressure Gauge 160 Bar Flange Fuel Pressure Gauge Liquid Filled
2300 Psi 2.5 Inch Pressure Gauge 160 Bar Flange Fuel Pressure Gauge Liquid Filled
2300 Psi 2.5 Inch Pressure Gauge 160 Bar Flange Fuel Pressure Gauge Liquid Filled
2300 Psi 2.5 Inch Pressure Gauge 160 Bar Flange Fuel Pressure Gauge Liquid Filled
2300 Psi 2.5 Inch Pressure Gauge 160 Bar Flange Fuel Pressure Gauge Liquid Filled
2300 Psi 2.5 Inch Pressure Gauge 160 Bar Flange Fuel Pressure Gauge Liquid Filled
Specifications
Brand Name :
WESEN or Customized
Model Number :
M03.01.63.F
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
63mm
Mount :
Radial
Pressure Range :
160 bar or Customized
Case Material :
316 SS, 304 SS
Lens Material :
Instrument glass
Bourton Tube :
Phosphor bronze
Movement :
Brass
Dial :
Aluminum
Accuracy :
1.6
Liquid :
Silicone oil, glycerin
Description

2.5 Inches 160 bar & 2300 psi Manometer 1/4" NPT Flange Mount Liquid Filled Pressure Gauge

Description
Liquid-filled pressure gauges provide a number of advantages:
1. The liquid absorbs vibration and pressure spikes
2. The dampening action of the liquid enables the operator to take readings during conditions of rapid dynamic loading and vibration.
3. The liquid lubricates all moving elements, dramatically reducing wear in the movement
4. Because most liquid-filled gauges are filled with non-aqueous liquid and hermetically sealed, they perform in corrosive environments and are immune to moisture penetration and icing, and shock effects are lessened.

Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
​​
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

63mm

Accuracy

Acc.1.6
Pressure range160 bar (customized)

Pressure limitation

40mm, 50mm, 63mm:
Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value
100mm:
Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Mediium: +60 °C maximum

Ingress protection

IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Brass

Pressure element

Brass, C-type or helical type
MovementBrass
DialAluminium, colorful, with pointer stop pin
Black lettering
PointerAluminium
CaseStainless steel
RingStainless steel
WindowPlastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa

Thread1/4 G, BSP, PT, BSPT, NPT
OptionsOther process connection thread
Surface mounting flange
Mounting bracket


Dimensions
2300 Psi 2.5 Inch Pressure Gauge 160 Bar Flange Fuel Pressure Gauge Liquid Filled

SizeDimensions in mmWeight in kg
abb2D1D2efGhSW
5012305555505.5-1/4"48140.15
6313325668626.5-1/4"54140.21
10015.54881.51071008301/2"87220.80


Ordering information
Model / Dial size / Pressure Range / Process connection / Options

2300 Psi 2.5 Inch Pressure Gauge 160 Bar Flange Fuel Pressure Gauge Liquid Filled
