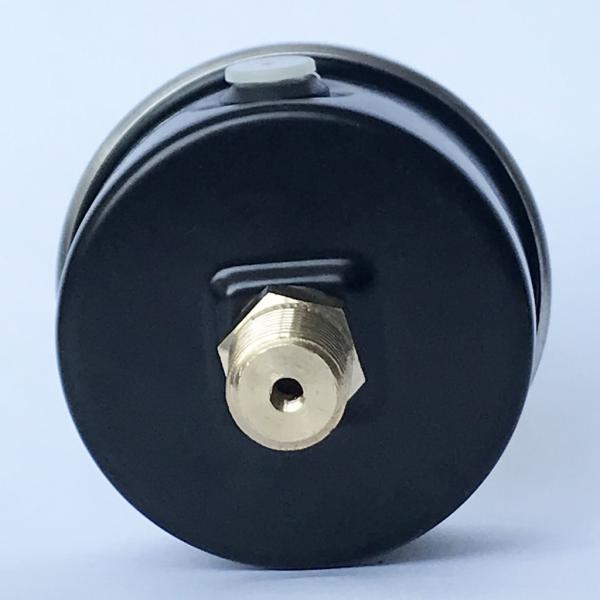

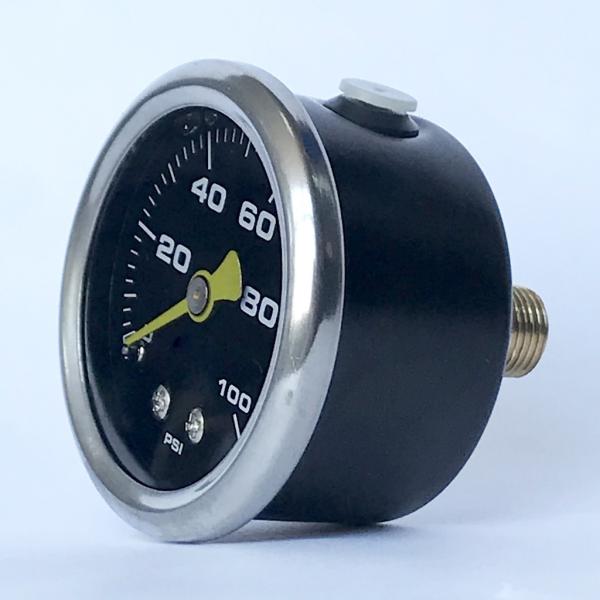

1.5 Inches 100 psi Black Dial Manometer 1/8 NPT Axial Mount Black steel Liquid Filled Pressure Gauge
1.5 Inches 100 psi Black Dial Manometer 1/8 NPT Axial Mount Black steel Liquid Filled Pressure Gauge
1.5 Inches 100 psi Black Dial Manometer 1/8 NPT Axial Mount Black steel Liquid Filled Pressure Gauge
1.5 Inches 100 psi Black Dial Manometer 1/8 NPT Axial Mount Black steel Liquid Filled Pressure Gauge
1.5 Inches 100 psi Black Dial Manometer 1/8 NPT Axial Mount Black steel Liquid Filled Pressure Gauge
1.5 Inches 100 psi Black Dial Manometer 1/8 NPT Axial Mount Black steel Liquid Filled Pressure Gauge
1.5 Inches 100 psi Black Dial Manometer 1/8 NPT Axial Mount Black steel Liquid Filled Pressure Gauge
1.5 Inches 100 psi Black Dial Manometer 1/8 NPT Axial Mount Black steel Liquid Filled Pressure Gauge
1.5 Inches 100 psi Black Dial Manometer 1/8 NPT Axial Mount Black steel Liquid Filled Pressure Gauge
1.5 Inches 100 psi Black Dial Manometer 1/8 NPT Axial Mount Black steel Liquid Filled Pressure Gauge
Specifications
Brand Name :
WESEN or Customized
Model Number :
M03.02.40.N
Certification :
CE, ISO
Place of Origin :
China
MOQ :
100 Pieces
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 Pieces per Month
Delivery Time :
3~4 Weeks
Packaging Details :
Carton
Size :
40mm
Mount :
Back
Pressure Range :
100 psi or Customized
Case Material :
Black steel
Lens Material :
Instrument glass
Bourton Tube :
Phosphor bronze
Movement :
Brass
Dial :
Aluminum, dual scale
Accuracy :
1.6
Liquid :
Silicone oil, glycerin
Description

1.5 Inches 100 psi Black Dial Manometer 1/8" NPT Axial Mount Black steel Liquid Filled Pressure Gauge

Description
Standard liquid filled gauges are filled with 100% (99.7% min.) glycerine which starts to become sticky at +17 degrees C, as the temperature decreases the more slimy the glycerine becomes causing the pointer to move slowly to the correct position. At -5 degrees C the gauge would stop operating completely. Locations with an even temperature that doesn't fluctuate often, would be the perfect home for a standard gauge.

Applications
For measuring locations with high dynamic pressure loads and vibrations
For gaseous and liquid media that are not highly viscous or crystallising and will not attack brass parts
Hydraulics
Compressors, shipbuilding
​​
Special features
Vibration and shock-resistant
Especially robust design
Completely from stainless steel
Scale ranges up to 0 ... 1000 bar

Specifications

Design

EN 837-1

Nominal size

40mm

Accuracy

Acc.1.6
Pressure range100 psi (customized)

Pressure limitation

40mm, 50mm, 63mm:
Steady: 3/4 x full scale value Fluctuating: 2/3 x full scale value Short time: full scale value
100mm:
Steady: full scale value Fluctuating: 0.9 x full scale value Short time: 1.3 x full scale value

Permissible temperature

Ambient: -20 ... +60 °C
Mediium: +60 °C maximum

Ingress protection

IP65

Temperature effect

When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.4 %/10 K of the span

Process connection

Brass

Pressure element

Brass, C-type or helical type
MovementBrass
DialAluminium, colorful, without pointer stop pin
Black lettering
PointerAluminium
CaseBlack painted steel
RingStainless steel
WindowPlastic, glass, safety glass
Unit

bar, psi, kg/cm2, kPa, MPa

Thread1/8 G, BSP, PT, BSPT, NPT
OptionsOther process connection thread
Surface mounting flange
Mounting bracket


Dimensions
1.5 Inches 100 psi Black Dial Manometer 1/8

SizeDimensions in mmWeight in kg
abb2D1D2efGhSW
5012305555505.5-1/4"48140.15
6313325668626.5-1/4"54140.21
10015.54881.51071008301/2"87220.80


Ordering information
Model / Dial size / Pressure Range / Process connection / Options

1.5 Inches 100 psi Black Dial Manometer 1/8
