ASME SA240 Metal Stainless Steel Sheet , Food Grade Cold Rolled 316L Stainless Steel Plate
ASME SA240 Metal Stainless Steel Sheet , Food Grade Cold Rolled 316L Stainless Steel Plate
ASME SA240 Metal Stainless Steel Sheet , Food Grade Cold Rolled 316L Stainless Steel Plate
ASME SA240 Metal Stainless Steel Sheet , Food Grade Cold Rolled 316L Stainless Steel Plate
ASME SA240 Metal Stainless Steel Sheet , Food Grade Cold Rolled 316L Stainless Steel Plate
ASME SA240 Metal Stainless Steel Sheet , Food Grade Cold Rolled 316L Stainless Steel Plate
ASME SA240 Metal Stainless Steel Sheet , Food Grade Cold Rolled 316L Stainless Steel Plate
ASME SA240 Metal Stainless Steel Sheet , Food Grade Cold Rolled 316L Stainless Steel Plate
Specifications
Brand Name :
Modern
Model Number :
316L
Certification :
BV
Place of Origin :
China
MOQ :
500KG
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Tons Per Months
Delivery Time :
3-5 working days if this goods is stock goods.
Packaging Details :
Export standard package: bundled wooden box, suit for all kinds of transport,or be required.
Surface treatment :
BA /2B / NO.1/ NO.3/ NO.4/8K/ HL/ 2D/ 1D
Width :
3mm-2000mm or as required
Type :
Stainless steel
Technique :
Cold Rolled,Hot Rolled
Standard :
GB,AISI,JIS,DIN,ASTM
Surface :
BA,2B,8K,prime
Description

ASME SA240 316L metal stainless steel sheet food grade cold rolled

Product Description:

Standard:

ASTM A240,ASTM A480,ASTM A167,ASTM A176

Material: 201,202,301,304,304L,304N,XM21,304LN,305,309S,310S,316,316Ti,316L,316N,316LN,317,317L,321,347,329,405,409,430,434,444,403,410,420,440A,etc.

Specifications:

Thickness: 0.01-200mm

Width: 1m,1.22m,1.5m and 1.8m.

Length: 2m,2.44m,5.8m,6m.

Surface: No.1, 2B, BA, NO.4, 8K mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc.

Application:

exhaust systems, handrails, cable trays, saucepans, brewing, food processing, fasteners, microwave oven liners, lighting columns, platform accommodation, cladding, refuse vehicles, water and sewage treatment, cutlery, water tubing, road tankers, surgical implants, ship containers, hot water tanks, catering equipment, street furniture, sinks, washing machine drums, surgical instruments, razor blades, subsea pipelines, etc.

Product Description:

ASTM Specification ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911
Standard MSRR, AMS, BS, ASTM / ASME
Length & Sizes 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36" X 120" or 48" X 144", 4' x 8', Cut to size available
Thickness 0.1mm to 100 mm Thk
Width 10-2500mm
AMS AMS 5513
Process Stainless Steel Hot Rolled Plates and Stainless Steel Cold Rolled Plates
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Temper Annealed, 8K etching Stainless Steel Sheet
Condition Stainless Steel Polished Plates on both sides
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Stock in form of SS Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate
ASTM Standard ASTM A162, GB/T2054, DIN177502002, ASTM B127, ASTM B435, ASTM B582, ASTM B575, ASTM B168, ASTM B443, ASTM B463, ASTM B626, ASTM B536, etc
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
Manufacturers Jindal Stainless, Thyssenkrup, POSCO, Aperam, DKC Korea, Baosteel, TISCO, Arcelor Mittal, VDM, Nippon Metal, Outokumpu
Quality
  • Huge Stock, Timely delivery
  • Raw Materials Certificate
  • EN 10204/3.1B
  • 100% Radiography Test Report
  • High special strength, high melt point
  • Third Party Inspection Report, etc
  • Excellent corrosive resistance, good thermal resistance
  • Customer support after-sales service
  • Strict Control from Raw Material to Finished Sheet
Profiling

To provide a full profiling service we use numerous profiling methods including:

  • Plasma Plate Cutting Stainless Steel Sheet
  • Laser Plate Cutting Stainless Steel Plate
  • Oxy-propane Flame Cutting
Specialized in
  • Stainless Steel Sheet: material under 3/16" [5.00 mm] in thickness and 24" [600 mm] and over in width
  • Stainless Steel Plate: material 3/16" [5.00 mm] and over in thickness and over 10" [250 mm] in width
  • Stainless Steel Strip: cold-rolled material under 3/16" [5.00 mm] in thickness and under 24" [600 mm] in width
  • Stainless Steel Clad plate: Clad plate is a composite steel plate made by bonding plate, etc.
  • Free Quote, Inquiry answered within 24 hours

Chemical Composition:

Material C Si Mn P S Ni Cr Mo N
316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 10.0~14.0 16.0~18.0 2.00~3.00 ≤0.10

Mechanical Properties:

Grade UNS Tensile Strength (MPa) min Yield Strength (MPa) min Elongation (%) min Brinell Hardness (HB) max Rockwell Hardness (HRB)max
316L S31603 485 170 40 217 95


Surface Finish:

ASME SA240 Metal Stainless Steel Sheet , Food Grade Cold Rolled 316L Stainless Steel Plate

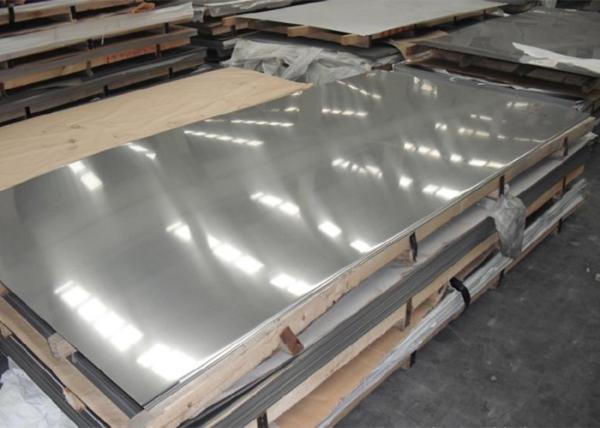

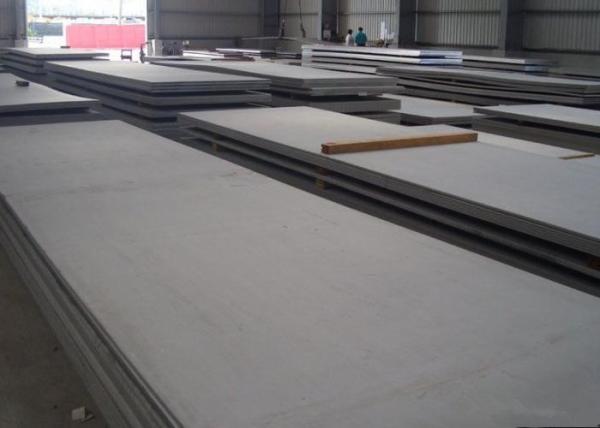

Product Photos:

ASME SA240 Metal Stainless Steel Sheet , Food Grade Cold Rolled 316L Stainless Steel Plate

ASME SA240 Metal Stainless Steel Sheet , Food Grade Cold Rolled 316L Stainless Steel Plate
