Small OD Big Wall Stainless Seamless Steel Tube , Grade 304L 316L 321 347H 310S , Pipe Cap In Bundle
Small OD Big Wall Stainless Seamless Steel Tube , Grade 304L 316L 321 347H 310S , Pipe Cap In Bundle
Small OD Big Wall Stainless Seamless Steel Tube , Grade 304L 316L 321 347H 310S , Pipe Cap In Bundle
Small OD Big Wall Stainless Seamless Steel Tube , Grade 304L 316L 321 347H 310S , Pipe Cap In Bundle
Specifications
Brand Name :
Cosco Steel
Model Number :
304,304L,3 16,316L,309S,310S,321,904L,2205 etc.
Certification :
ISO,SGS,CQC,etc.
Place of Origin :
China
MOQ :
1 Ton / one size
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
600Tons/Month
Delivery Time :
20-25 days
Packaging Details :
Plastic bag in bundle,Wooden box,etc.
OD :
DN15-DN800
Length :
2 meter to 10 meter
Type of pipe :
Seamless | Welded
Delivery condition :
Cold Drawn,Hot Rolled
End of pipe :
Beveled End,Plain End
MateriaThicknessl :
10 - 120 mm
Thickness :
10-120mm
Application :
Fluid Pipe
Description

Small OD Big Wall Stainless Seamless Steel Tube , Grade 304L 316L 321 347H 310S

Pipe Cap In Bundle

Quick Detail

Min Size: OD. 150 x WT. 10 mm x Length

Max Size: OD. 800x WT. 120 mm x Length

We can supply materials: 304, 304L, 316L, 309S, 310S, 317L, 321, 347, 904L, 2205

Surface Finish: Annealed&Pickled | 180# Polished | 240 # Polished | 300 # Polished etc

The main market: Europe, Japanese, USA, South America, Africa etc.

Description

The Heavy Wall Stainless Steel Pipe,We can produce seamless and welded pipe

Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

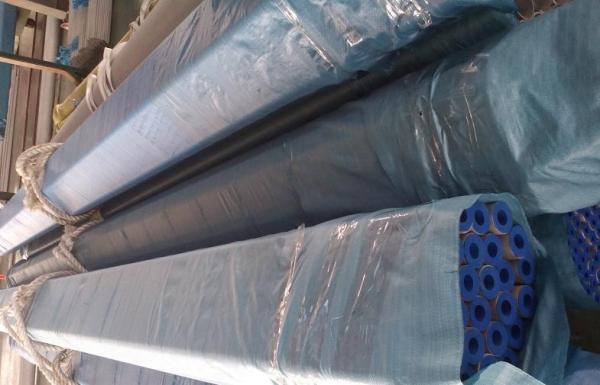

Packing: Plastic bag in bundle Or Wooden Pallet Or Be requested by buyer

H.S Code: 7304.4190 ( For seamless heavy wall stainless steel pipe )

Ordering Information:

It shall be the responsibility of the purchaser to specify all requirements that are necessary for products under this specification. Such requirements to be considered included,but are not limited to,the following:

1 Quantity ( feet, meters, or number of lengths )

2 Name of material ( seamless or welded )

3 Steel Grade

4 Size ( OD. or ID. Wall )

5 Length ( specific or random )

6 Special Requirements

Applications

  1. Petroleum,Chemical industry,Environment protection equipment,
  2. Medical equipment,Shipbuilding industry,Paper making factory,
  3. Pollution discharging project etc.

Specification

Type Of Pipe

Seamless,straight-seamless welded,

and heavily cold worked austenitic stainless steel pipe

Manufacture Process

Seamless (SML) Pipe | Welded ( WLD )

Length tolerance

+/- 5mm | +/- 10mm

Permitted Variations

In Wall Thickness

Tolerance,% from Nominal

Outside Diameter Over Under

21 mm to below and 60mm 10% 10%

Above 60mm to below and 101.6mm 10% 12.5%

Above 101.6mm to below and 219.1mm 11% 12.5%

Above 219.1mm to below and 323.9mm 12.5% 12.5%

Above 323.9mm to below and 406.4mm 13.5% 12.5%

Above 406.4mm to below and 508.0mm 15% 12.5%

Above 508.0mm to below and 609.6mm 10% 12.5%

Above 609.6mm to below and 720mm 10% 10%

Inspection item
  1. Size(outside,wall,length);
  2. Surface of Pipe;
  3. Chemical Composition
  4. Mechanical Testing
  5. Hydro-static Or Nondestructive Electric Test
  6. ICT(Inter-granular Corrosion Test) etc.

Ordering

Information
  • Quantity(feet,meters, or number of lengths)
  • Steel Grade
  • Size(outside diameter,nominal wall thickness,length)
  • Test report requirements
  • Other special requirements from buyers ..
