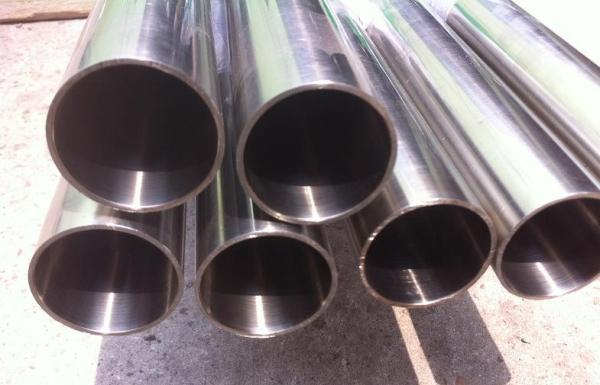

Bright Anealling Food Grade Stainless Steel Tubing S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tubing S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tubing S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tubing S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tubing S31803 / S32205 / S32750
Bright Anealling Food Grade Stainless Steel Tubing S31803 / S32205 / S32750
Specifications
Brand Name :
Cosco Steel
Model Number :
S31803 / S32205 / S32750 / S32900 / S31500 etc
Certification :
ISO
Place of Origin :
China
MOQ :
500Kgs/ one size
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
600Tons/Month
Delivery Time :
35 days
Packaging Details :
Plastic bag in bundle,Wooden box,etc.
Type :
Seamless
Steel Grade :
Super Duplex Stainless Steel
Description

Bright Anealling Food Grade Stainless Steel Tubing S31803 / S32205 / S32750

Quick Detail:

Product Name

Bright Annealing Stainless Steel Tube For Food Processing ,

S31803 / S32205 /S32750

Pipe Standard

JIS, AISI, ASTM, GB, DIN, EN ETC.

Material

S31803 / S32205 / S32750 / S32900 / S31500 etc

Surface

Annealing And Picking Or Polishing

Outer Diameter

3.17mm - 273mm

Thickness

0.3mm - 20mm

Hardness

≤30HRC
Tolerance According To Standard Or Client's Requirement
Chemical Composition According To Standard Or Client's Requirement

Description:

  1. Product Item No.: 0010foodtube-Cosco Steel
  2. Standard:ASTM A789/ASME SA789
  3. Material: S31803/S32750/S32205
  4. Outer Diameter:3.18mm-273mm
  5. Thickness:0.3mm-20mm
  6. Length of pipe:As required
  7. Kind:Straight tube/U-tube
  8. Technique:Cold Rolling/Cold Drawing
  9. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
  10. Packing: Plastic bag each tube,wooden box
  11. H.S Code: 7304.4190
  12. Fluid Tube Standard And Size:

Standard

IS0

DIN 1

DIN2

GB

IDF

Size

Ø19.1x1.5

Ø28x1.5

Ø29x1.5

Ø25x1.6

Ø19.1x1.2

Ø25.4x1.5

Ø34x1.5

Ø35x1.5

Ø32x1.6

Ø25.4x1.2

Ø31.8x1.5

Ø40x1.5

Ø41x1.5

Ø38x1.6

Ø31.8x1.2

Ø38.1x1.5

Ø52x1.5

Ø53x1.5

Ø45x1.6

Ø38.1x1.2

Ø50.8x1.5

Ø70x2.0

Ø70x2.0

Ø57x1.6

Ø50.8x1.2

Ø63.5x2.0

Ø85x2.0

Ø85x2.0

Ø76x2.0

Ø63.5x2.0

Ø76.0x2.0

Ø104x2.0

Ø104x2.0

Ø89x2.0

Ø72.0x2.0

Ø101.6x2.0

Ø129x2.0

Ø129x2.0

Ø108x2.0

Ø89.0x2.0

Ø154x2.0

Ø154x2.0

Ø133x2.9

Ø101.6x2.0

We also produce this tube sizes according to buyer’s requirement

Tolerance: OD +/- 0.5mm; Wall Thickness +/- 0.2mm.

Chemical Composition

(the number show in the table is Max, except for the specified rang)

C

Si

Mn

P

S

Cr

Ni

Mo

Cu

N

ASTM A789 S31500

0.03

1.40~2.00

1.20~2.00

0.030

0.030

18.0~19.0

4.3~5.2

2.5~3.0

　

0.05~0.10

ASTM A789

S31803

0.03

1.00

2.00

0.030

0.020

21.0~23.0

4.5~6.5

2.5~3.5

　

0.08~0.20

ASTM A789

S32205

0.03

1.00

2.00

0.030

0.020

22.0~23.0

4.5~6.5

3.0~3.5

　

0.14~0.20

ASTM A789

S32750

0.03

0.80

1.20

0.035

0.020

24.0~26.0

6.0~8.0

3.0~5.0

0.50

0.24~0.32

ASTM A789

S32760

0.05

1.00

1.00

0.030

0.010

24.0~26.0

6.0~8.0

3.0~4.0

0.5~1.0

0.20~0.30

Applications:

We,this type seamless and welded food steel tube be widely used in kinds of industries:

  1. Petrochemical industry,Electricity,Nuclear energy,
  2. Chemical fertilizer,Boiler,Light textile,
  3. Paper making,Food,Dairy products,Make wine,Pharmacy bio-engineering,
  4. Environment protection equipment,etc.

MPS ( Manufacturing Pipe Procedure )
