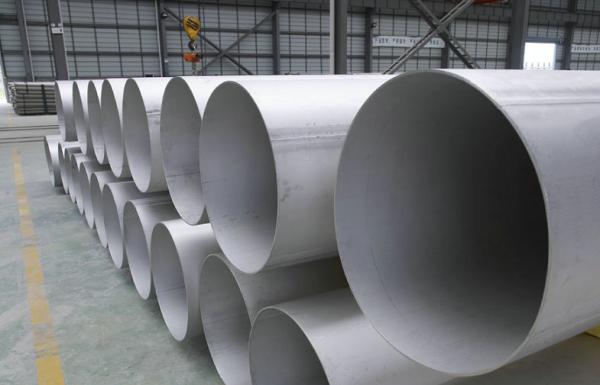

AISI 304 ERW Stainless Steel Pipe 20 Inch , Annealed Stainless Steel Tubing
AISI 304 ERW Stainless Steel Pipe 20 Inch , Annealed Stainless Steel Tubing
AISI 304 ERW Stainless Steel Pipe 20 Inch , Annealed Stainless Steel Tubing
AISI 304 ERW Stainless Steel Pipe 20 Inch , Annealed Stainless Steel Tubing
Specifications
Brand Name :
Cosco Steel
Certification :
ISO,SGS,CQC,etc.
Place of Origin :
China
MOQ :
500Kgs/ one size
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
600Tons/Month
Delivery Time :
10-15 days
Packaging Details :
Plastic bag in bundle,Wooden box,etc.
Surface Finish :
Annealed And Pickled
Size :
20 Inch
Wall thickness :
+/- 0.5mm
Description

AISI 304 ERW Stainless Steel Pipe 20 Inch , Annealed Stainless Steel Tubing

Quick Detail:

Product Name

ERW Welded Stainless Steel Pipe

Surface Finish

1. 2B Finish 2. Pickled Finished 3. Annealed&Pickled

Material

304/L, 316L/Ti, 310S etc.

Outside Diameter

20mm - 2000mm

Wall Thickness

1mm,1.2mm,1.5mm,2.0mm ... 30mm.

Length

1000mm,2000mm,3000mm....12000mm

Market

USA,Canada,Japanese,European etc.

Description:

1. Product Item No.: 0010welded-Cosco Steel

2. Type: Round Or Oval

3. Material: Main

1. 4301/ SUS304/ AISI304/ S30400,

1. 4306/ SUS304L/ AISI304L/ S30403,

1. 4404/ SUS316L/ AISI316L/ S31603, etc.

4. Standard:

GB/T12771-2008, ASTM A312, ASTM A789, JIS G3448,

DIN EN10216-5, DIN EN10217-7, etc.

5. Size: 1/2” to 48”

6. Wall Thickness: Sch5s,Sch10s,Sch40S

7. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size

8. H.S Code: 7306.4000


Applications:

This type welded tubes/pipes be used in
Industrial fluid conveying pipes
Mechanical structural tubes
Heat ex-changer and condenser tubes
Walled water tubes
Larger caliber industrial welded pipes etc.

Specifications

Designation: A312/A312M-04a

Standard specifications For Seamless,Welded,And Heavily Cold Worked Austenitic

Stainless Steel Pipe

Manufacture Process

ERW Welded ( ELD ) Pipe

Quality Inspection
  1. Metallographic Analysis
  2. Physical And Chemical Analysis
  3. Specification Eccentricity Test
  4. Mechanical Test
  5. PMI Test
  6. Eddy Current Test
  7. Large-Size Ultrasonic Flaw Test
  8. Ultrasonic Flat Test
  9. Thickness Test etc.

Mechanical Requirements

Grade UNS Designation Tensile Strength Yield Strength

Min Ks i [M pa] Min Ks i [M pa]

TP304 S30400 75 [515] 30 [205]

TP304L S30403 70 [485] 25 [170]

TP309S S30908 75 [515] 30 [205]

TP310S S31008 75 [515] 30 [205]

TP316L S31603 70 [485] 25 [170]

.... .... ..... .....
  1. Specification No.
  2. Pipe
  3. Grade
  4. NPS
  5. Wall
  6. SMLES OR WELDED ...
  • ASTM A312
  • P
  • TP304
  • 12IN
  • 0.375 IN
  • WELDED .....

Product tags

sus304 stainless steel pipe

,

astm a554 stainless steel pipes

,

b36 19 stainless steel pipe
