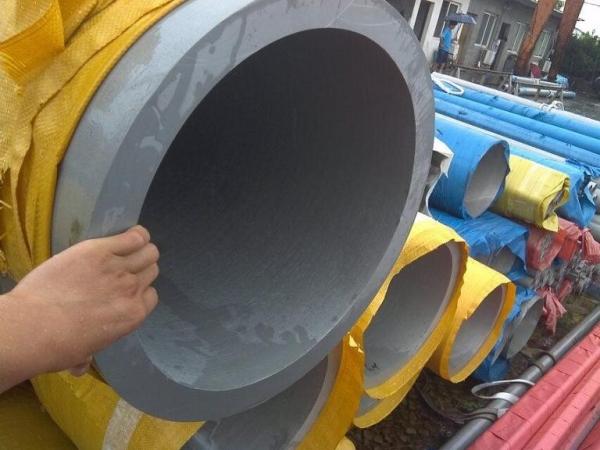

AP Finish Heavy Wall Stainless Steel Pipe with Plain End , 720x40 mm
AP Finish Heavy Wall Stainless Steel Pipe with Plain End , 720x40 mm
Specifications
Brand Name :
Hainer Steel
Model Number :
304/304L316L,310S321,2205,904L etc.
Certification :
ISO9001,SGS,CQC,BV,TUV etc.
Place of Origin :
China
MOQ :
1000KGS/Size
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
3000Tons/Month
Delivery Time :
15-25Days Or Stock
Packaging Details :
Plastic Cap Both End,In bundle
Size :
219 x 25 mm; 325 x 25 mm; 508 x 40 mm; 610 x 40 mm; 720 x 40mm etc
Manufacturing Process :
Hot-Finished | Cold-Finished | Annealed & Pickled
End Of Pipe :
Plain End (PE) | Beveled End(BE)
Main Market :
UAS, South American, Pakistan, Africa, Jordan etc.
Description

AP Finish Heavy Wall Stainless Steel Pipe with Plain End , 720x40 mm

Quick Detail

Size random: Min 21 x 5.5 mm x Length

Max 720 x 50 mm x Length

We also can produce this heavy wall stainless steel pipe according to customer's design

Wall Thickness Random: 5 mm to 50 mm

Length Random: 2000 mm to 10000 mm

Special Steel Grade Supply:

310S | 904L | 2205 | S31083 | 17-7PH | 17-4PH | SUS 630 | SUS 631 | etc.

Description

  1. Marking: Registered logo,Heat Number,Steel Grade,Standard,Size
  2. Packing: Pipe cap both end,plastic bag in bundle
  3. H.S Code: 7304419000 ( For seamless heavy wall stainless steel pipe )
  4. Material:

0Cr18Ni9(304), 00Cr19Ni10(304L),

1Cr18Ni9Ti(321), 0Cr17Ni12Mo2(316)

00Cr17Ni14Mo2(316L), 0Cr18Ni12Mo2Ti(316Ti), 0Cr19Ni13Mo3(317)

00Cr19Ni13Mo3(317L), 0Cr25Ni20(310S), 1Cr19Ni11NB(317H)

Applications:

  1. Petroleum,Chemical industry,Environment protection equipment,
  2. Medical equipment,Shipbuilding industry,Paper making factory,
  3. Electric power plant,Pollution discharging project etc.

Specification

We can supply pipe

Seamless,straight-seamless welded,

and heavily cold worked austenitic heavy wall stainless steel pipe

Manufacture Process

Seamless (SML) Pipe | Welded Pipe

Tolerance Of Pipe

OD tolerance: Normal +/- 0.5mm | +/- 1mm | +/- 2mm | +/- 5mm etc

Wall tolerance: Normal +/- 0.5mm | +/- 0.8mm | +/- 1 mm | +/- 1.5mm

Length tolerance: Normal +/- 5mm | +/- 10 mm

Differ sizes,differ tolerance

The final requirments should be checked between buyer and manufacturer,must be mentioned in final ordering information

Inspection item
  1. Size(outside,wall,length);
  2. Surface of Pipe;
  3. Chemical Composition
  4. Mechanical Testing
  5. Hydro-static Or Nondestructive Electric Test
  6. ICT(Inter-granular Corrosion Test) etc.

Ordering

Information
  • Quantity(feet,meters, or number of lengths)
  • Steel Grade
  • Size(outside diameter,nominal wall thickness,length)
  • Tolerance requirements
  • Test report requirements
  • Packing requirements
  • Other special requirements ..
