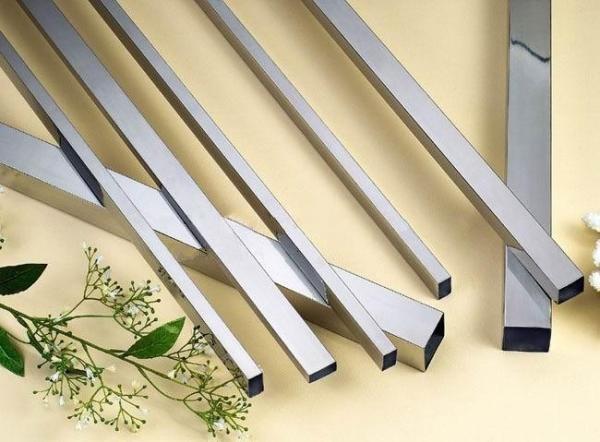

DIN17007 1.4306 / 1.4301 Square Sanitary Stainless Steel Tubing with BA Surface
DIN17007 1.4306 / 1.4301 Square Sanitary Stainless Steel Tubing with BA Surface
Specifications
Brand Name :
Hainer Steel
Model Number :
201，202，304，304L，316L，2205，904L etc.
Certification :
ISO9001,SGS,CQC,BV, TUV etc.
Place of Origin :
China
MOQ :
500Kgs/ one size
Price :
Negotiation
Payment Terms :
T/T, L/C at sight
Supply Ability :
2000Tons/Month
Delivery Time :
15-20 days or Stock
Packaging Details :
Plastic bag in bundle,Wooden box,etc.
Technology :
Hot Rolled, Cold Drawn
Surface Finshed :
300# polished, 400# polished, 600# polished
Material :
DIN1.4304 1.4306 1.4401 1.4404 1.4541 1.4571 1.4539
Quanlity :
USA quality, European Quality,Japanese Quality
Description

DIN17007 1.4306 / 1.4301 Square Sanitary Stainless Steel Tubing with BA Surface

Quick Detail:

Square Size: 20 x 20mm; 30 x 30mm to 400 x 400mm
Thickness: 1mm-12mm
Type: Welded And Seamless
Length Of Tube: 6 meter, 8 meter or others


Description:


Product Item No.: 0012foodtube-Cosco Steel
Tolerance: OD :+/-1% WT: +/ -10%
Process Method:Cold Drawn/Hot Rolled
Surface Finish: 2B,BA,Satin,400#,600grit,8K,Mirror
Packing: Wooden box
Marking: Registered logo,Heat No.,Grade,Standard
H.S Code: 7304.4190

Type

Grade of Steel

Specification

Common Standard

GB

ASTM

Japan

Germany

DIN17006

DIN17007

D-SMM

Stainless Steel
Seamless Pipe

0Cr18Ni9

304/S30400

SUS304

X5CrNi18-10

1.4301

20 - 400mm
1mm-12mm

GB/T14975-2002

00Cr19Ni10

304L/S30403

SUS304L

X2CrNi19-11

1.4306

GB/T14976-2002

00Cr25Ni20

310S/31008

SUS310S

X12CrNi25-21

1.4845

GB13296-91

0Cr17Ni12Mo2

316/S31600

SUS316

X5CrNiMo17-12-2

1.4401

ASTM A269

0Cr17Ni14Mo2

316L/S31603

SUS316L

X2CrNiMo18-14-3

1.4435

ASTM A213

0Cr19Ni13Mo3

317/S31700

SUS317

X5CrNiMo11-13-3

1.4449

ASTM A312

00Cr19Ni13Mo3

317S/S31703

SUS317L

X2CrNiMo18-16-4

1.4438

JIS G3459

1Cr18Ni9Ti

321/S32100

SUS321

X12CrNiTi18-9

1.4878

EN10216-5

0Cr18NI10Ti

X6CrNi18-10

1.4541

DIN 17456

0Cr18Ni11Nb

347/S34700

SUS347

X12CrNiNb18-10

1.455

DIN 17458

Chemical composition & Mechanical properties

Type

Chemical Composition(%)

Mechanical properties

ASTM

C

Cr

Ni

Mo

Others

Heat Treatment

Yield strength
(N/mm2)

Tensile strength

Elongation (%)

Hardness

HB

HRB

HV

304

≤0.08

18.0~20.0

8.00~10.50

-

-

S

≥205

≥520

≥40

≤187

≤90

≤200

304L

≤0.030

18.0~20.0

9.00~13.00

-

-

S

≥175

≥480

≥40

≤187

≤90

≤200

316

≤0.08

16.0~18.0

10.00~14.00

2.00
~3.00

S

≥205

≥520

≥40

≤187

≤90

≤200

316L

≤0.03

12.00~15.00

S

≥175

≥480

≥40

≤187

≤90

≤200

321

≤0.08

17.0~19.0

9.00~13.00

-

Ti5×C%
over

S

≥205

≥520

≥40

≤187

≤90

≤200




Applications:

We,this type seamless and welded food steel tube be widely used in kinds of industries:

1) Petroleum, Chemical enterprise, super heater of boiler, heat exchanger
2) High temperature resistant transmission fluid pipe in power station
3) Ship with pressure pipe
4) The exhaust purification device
5) Construction and ornament


Our advantage

  1. Bright Annealing
  2. Strict tolerance control
  3. Good quality control system
  4. Good after sales services
  5. Good package
