Specifications
Brand Name :
Chengyue
Model Number :
DIN
Certification :
CE Certificate Approved
Place of Origin :
China
MOQ :
100000 Pieces / 300 KGS
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
280 Tons per month
Delivery Time :
15 Days After Deposit
Packaging Details :
200 Pieces into a carton box or plastic box , then put into cartons , cartons put into pallet . Or customized packing
Material :
Stainless Steel 304 A2
Head :
Square Trim Head
Driver :
#2
Customized :
Drawings or Samples
Surface Treatment :
Passivated
Color :
Silvery
Size :
M4.8 / M5.2
Length :
40mm-180mm
Thread :
Type A Thread
Tensile-Strength :
500-700 N/mm ²
Core Hardness :
HV190-230
Surface Hardness :
HV210-270
Description

1. Product Description.

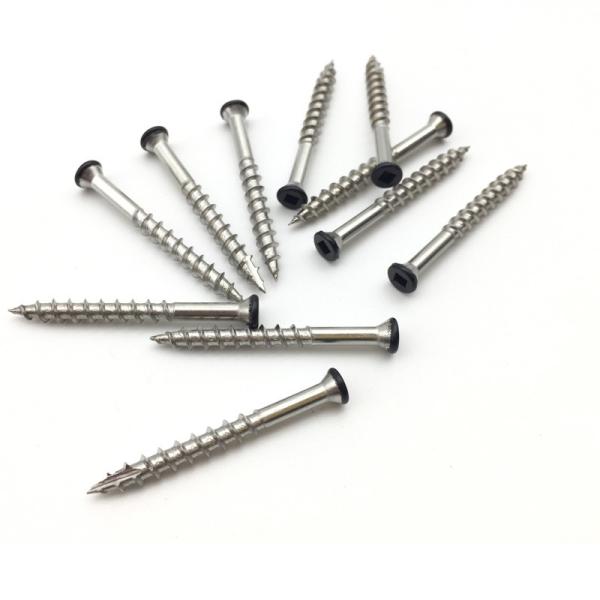

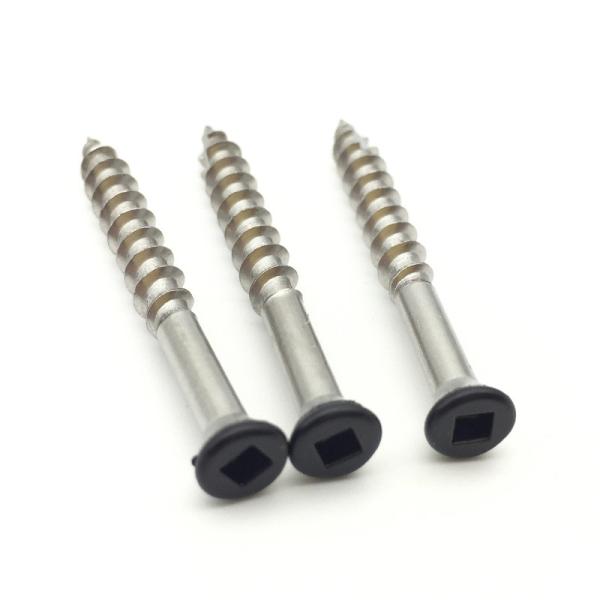

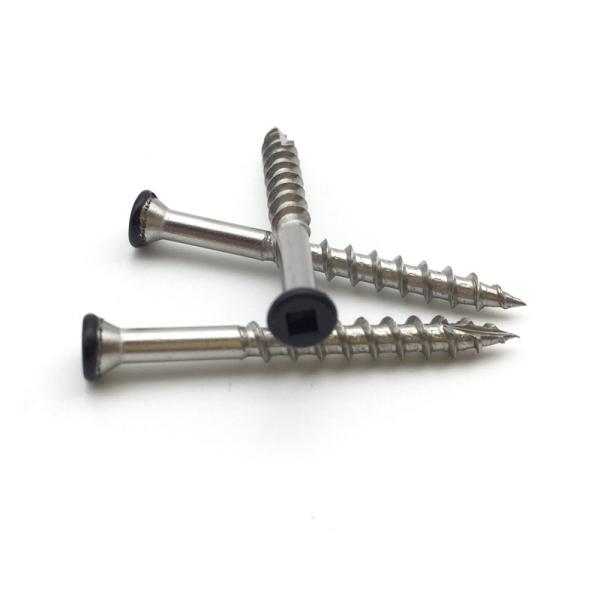

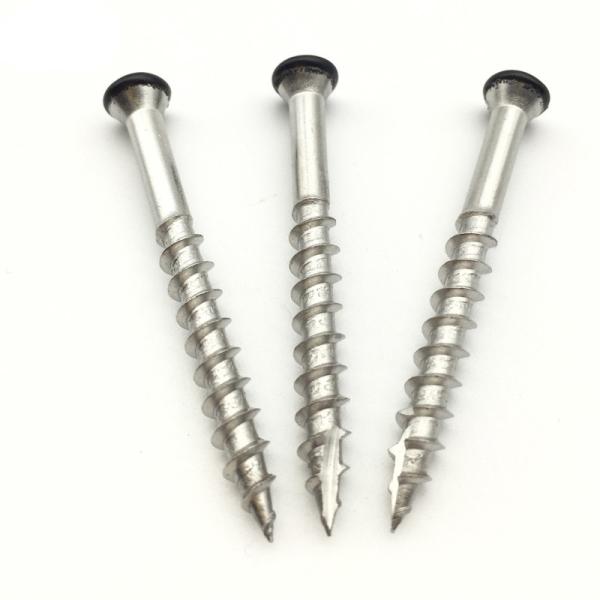

304 A2 Square Drive Colorful Painted Flat Trim Head Stainless Steel Deck Screw

Size(Metric)

dk

ds

k

Pitch(min)

b(max)

s

4.8

9.7

5

3.5

1.7

0.66L

#2

5.2

9.7

5

4.0

1.7

0.66L

#2

Star/Torx or Square Drive Colorful Painted Head 304 316 Bi-metal Flat Trim Head Stainless Steel Decking Screw

Flat Trim Head Stainless Steel Deck Screw is the optimal choice for superior quality and excellent holding power for face-

fastening applications.

Key Features

Wide variety of head colors: Find a match to blend with a wide range of hardwood and plastic/composite deck board colors.

Auger Point: Provides faster entry and splitting prevention.

Star Recess: Allows for better torquing and less stripping.

Special Head Design: Achieve better countersinking thanks to the nibs built in to both head types. Flat heads have greater

strength at the reinforced neck and the trim head's diameter is so small that the head is hardly noticeable.

ACQ-Rated: Approved for use with ACQ treated lumber.

Drive Type

Star/Torx or Square

Head Type

Flat or Trim

Screw Length

1-5/8", 2", 2-1/4" 2-1/2", and 3"

Screw Size

#7, #8 and #10

Colors

Tan-Gray #31, Brown #34, Gray #37, White #39, Black #38, Ivory #45, Olive-Gray #51, Dark Gray #53, Warm Gray #54, Wheat #61, Buckskin #63, Sand #64, Rosy Brown #65, Light Cedar #79, Cedar #81, Burgundy #87, Forest Green #94, Chocolate #71, Mahogany #82, Java #73, and Dark Slate #55 (note: not all colors available in all screw/pack sizes).

Material Type

304,304,316 Stainless Steel with painted head


2. Production.


304 A2 Square Drive Colorful Painted Flat Trim Head Stainless Steel Deck Screw
3. Certificate . :CE/ISO9001-2015


304 A2 Square Drive Colorful Painted Flat Trim Head Stainless Steel Deck Screw

4. Packing .(OEM is workable)

304 A2 Square Drive Colorful Painted Flat Trim Head Stainless Steel Deck Screw

5. FAQ:

1. You are a manufacturing company or trading company ?


--- We specialized in manufacturing self drilling screw and we have 10 years of exporting experience. And our price is

reasonable.


2. What quote do you offer ?

--- FOB,CIF and other ways according to your needs.

3. How pay ?

--- All of kinds payment we all accept from you.

4. How transport ?

--- Sea freight , air freight and others express delivery ways for you .

5. Can we print our own logo ?

--- Yes, we can print logo for you.

6. Can I order a small list ?

--- Of course, you can.

7. What is the quality of your products guarantee ?

--- We have passed ISO 9001:2008 Quality Management System Certification , COM Qualty Management System Certification

and IQNET Quality Management System Certification, If the quality doesen't accord the standard, you can exchange the goods

for free.

8. Do you have after-sales service ?

--- Certainly, you can contact us at any time.

9. Why choose us ?

I.Stable and traceable raw material suppling lines

II.Years of manufacturing & exporting experience

III.Controllable delivery time

IX.Flexible payment term

X.Multi-language service : English / Russian / Spanish / French / Portuguese

10. Our strengths ?

Save Time and Money - Eliminate separate drilling and tapping operations for faster, more economical installations .

Starts Exactly Where It Is Placed - State of the art forging process technology and tooling produced to strict specifications

provide a sharp, clean and consistent drill point.

Broad Selection of Sizes and Applications - A wide variety of head styles and drive sytems are available to meet specialized

application and installation demands. Self drilling screws are avaiable to penetrate thin sheet metal through 1/2'' thick steel .

Selection of Finishes - Screw are provided zinc plated ,ruspert ,dacromet ,passivated ,phosphated ,HDG ,climaseal ,radiant

,iridite ,Ni,Tin,chrome finish. When noted, screws are also available with Stagard corrosion-resistant coating which provide 800

hours of salt spray resistance or 15 cycles Kesternich Test .
